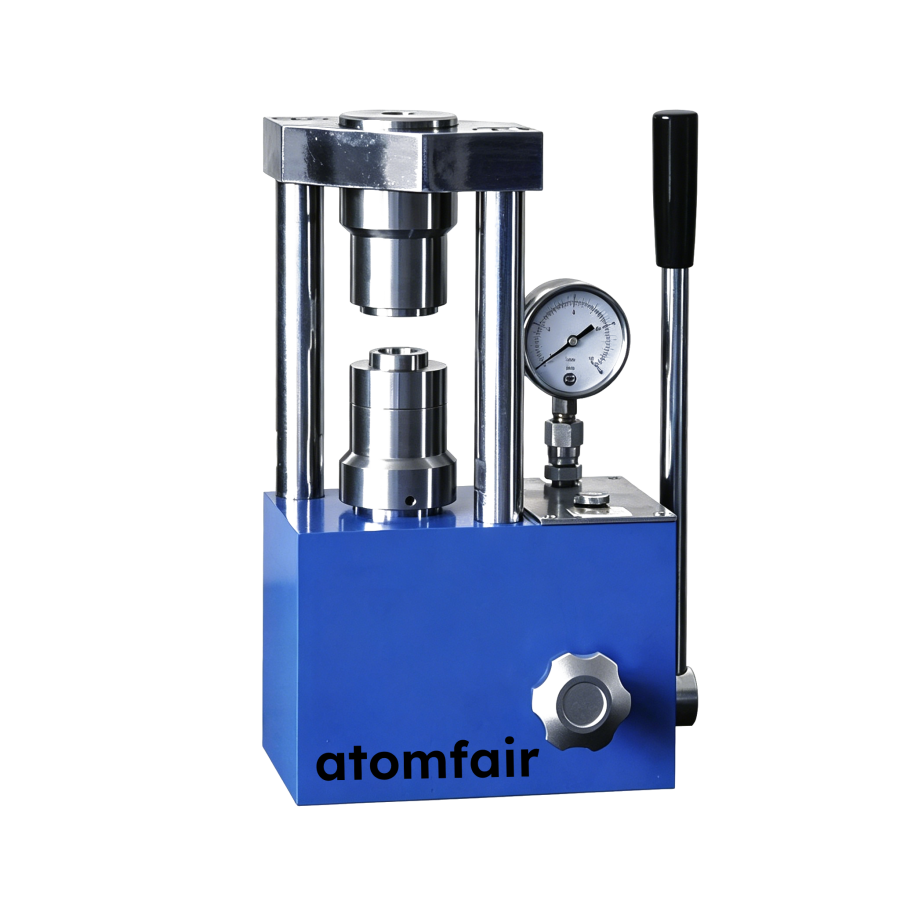

ATOMFAIR® blue manual coin cell crimper with a hydraulic pressure gauge and lever handle on a white background.

BCS-725 Manual Coin Cell Crimper 0-2 Ton Research ATOMFAIR®

$1,290.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Manual hydraulic coin cell crimper, 0-2 ton dual range gauge, 32 mm cylinder, 12 kg. Supports CR16-CR30 dies. Lab-grade sealing for research. In stock.

SKU: AFMSKCLY557
Category: , ,
Brands:

Description

ATOMFAIR BCS-725 COIN CELL CRIMPER (0-2 TON)

LAB-GRADE SEALING HARDWARE

Product Overview
The BCS-725 Economic Coin Cell Crimper is uniquely engineered for budget-friendly laboratory assembly lines and entry-level electrochemical testing protocols. Providing a highly reliable 0-2 ton dual range pressure gauge indicator configuration, this tool executes hermetic crimping and clean disassembly procedures flawlessly. It serves as an essential compact laboratory battery assembly hardware solution by supporting CR16, CR20, CR24, and CR30 cell architectures under modular die swaps. Weighing just 12 kg and built to a miniature footprint envelope, this manual hydraulic device integrates seamlessly into spatial glove box airlocks or tightly packed benches, giving researchers a highly reproducible, gas-tight mechanical seal baseline.

Technical Specifications
SPECIFICATION ITEM TECHNICAL PARAMETER DETAILS
Equipment Model BCS-725 Manual Hydraulic Series
Pressure Range Capacity 0 – 2 Tons Metric Force Window
Pressure Readout Type Dual-Scale Mechanical Pointer Gauge (Digital Screen Upgrade Optional)
Hydraulic Cylinder Diameter 32 mm Calibrated Piston Bore
Cylinder Vertical Stroke 0 – 30 mm Mechanical Ram Displacement
Compatible Cell Variants CR16, CR20, CR24, and CR30 Form Factors (Interchangeable Dies Optional)
External Dimensions 210 mm × 165 mm × 290 mm Total Envelope Size
Net Equipment Mass 12 kg Ultra-Light Benchtop Layout
Alternative Tooling Options Explore our complete catalog for automated pneumatic crimpers, dedicated battery disassembly matrices, or advanced high-pressure electric lines. Contact engineering for assistance.

Key Features & Advantages
  • Calibrated 2-Ton Hydraulic Piston: Delivers the ideal compression force required to securely deform metal caps without causing internal component short circuits.
  • Dual-Scale Mechanical Gauge: Provides immediate visual metrics for precise compression settings, with an available high-accuracy digital read-out upgrade.
  • Universal Cell Profile Adaptability: Easily handles popular CR16, CR20, CR24, and CR30 series test form factors using modular interchangeable tool sets.
  • Glove-Box Ready Build Profile: Features a compact 12 kg layout that allows for easy maneuvering inside narrow inert gas environments and through standard airlocks.

APPLICATION SCOPE: Engineered for academic testing laboratories, prototype battery facilities, electronic component verification plants, and custom electrochemical cell assembly or decrimping evaluation workflows.
SHIPPING & LOGISTICS: Packaged carefully inside high-density foam-lined industrial transit boxes to guarantee scratch-free delivery. Arrives with full assembly guides, an official performance log sheet, and standard maintenance tools.
OPERATIONAL COMPLIANCE NOTICE: Never force the manual handle beyond the rated 2-ton maximum ceiling to keep hydraulic line tolerances stable. Prior to launching full integration inside a high-purity nitrogen glovebox, execute thorough ultrasonic cleaning with pure ethanol to purge processing vapors.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or customized hardware quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
Manufacturer: Atomfair LLC
Brand: ATOMFAIR

This manual hydraulic crimper seals coin cell batteries under controlled pressure. It supports CR16, CR20, CR24, and CR30 cell sizes through interchangeable dies.

Required Equipment: ATOMFAIR BCS-725 Coin Cell Crimper

  1. Select die
    Select the appropriate die for your cell size (CR16, CR20, CR24, or CR30).
  2. Position cell stack
    Position the assembled coin cell stack into the crimping cavity.
  3. Apply pressure
    Operate the hydraulic lever to apply pressure until the gauge reads the desired tonnage.
  4. Remove cell
    Release the pressure and remove the crimped cell from the die.

How does the 2-ton pressure limit affect crimping of different coin cell sizes?

The BCS-725's 0-2 ton pressure range is calibrated to provide the ideal force for hermetically sealing CR16, CR20, CR24, and CR30 coin cells without causing internal short circuits. The dual-scale mechanical gauge allows operators to set precise compression levels within this window, avoiding over-crimping that could damage cell components.

Can the BCS-725 be used for disassembly of coin cells in addition to crimping?

Yes, the BCS-725 supports both hermetic crimping and clean disassembly of coin cells using modular die swaps. The product description explicitly lists it for 'crimping and clean disassembly procedures' and references dedicated disassembly matrices as alternative tooling options.

What are the glove box space requirements for the BCS-725?

The BCS-725 has a compact footprint of 210 x 165 x 290 mm and weighs only 12 kg, making it suitable for integration into standard glove box airlocks and tight benchtop spaces. The operational compliance notice recommends ultrasonic cleaning with ethanol before use in high-purity nitrogen gloveboxes to remove processing vapors.

The BCS-725 is a manual hydraulic coin cell crimper offering a 0-2 ton pressure range with mechanical gauge readout, compatible with CR16-CR30 cell formats. It provides hermetic sealing for budget-conscious labs but requires careful force management and pre-cleaning for glovebox integration.

Positive

  • Calibrated 2-Ton Hydraulic Piston: Delivers the ideal compression force required to securely deform metal caps without causing internal component short circuits.
  • Universal Cell Profile Adaptability: Easily handles popular CR16, CR20, CR24, and CR30 series test form factors using modular interchangeable tool sets.

Trade-offs

  • Manual Operation with Force Limit: Manual handle must never be forced beyond the rated 2-ton maximum to maintain hydraulic line tolerances, requiring careful operator attention.
  • Pre-Glovebox Cleaning Required: Thorough ultrasonic cleaning with pure ethanol is necessary before integration into a high-purity nitrogen glovebox to purge processing vapors.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
