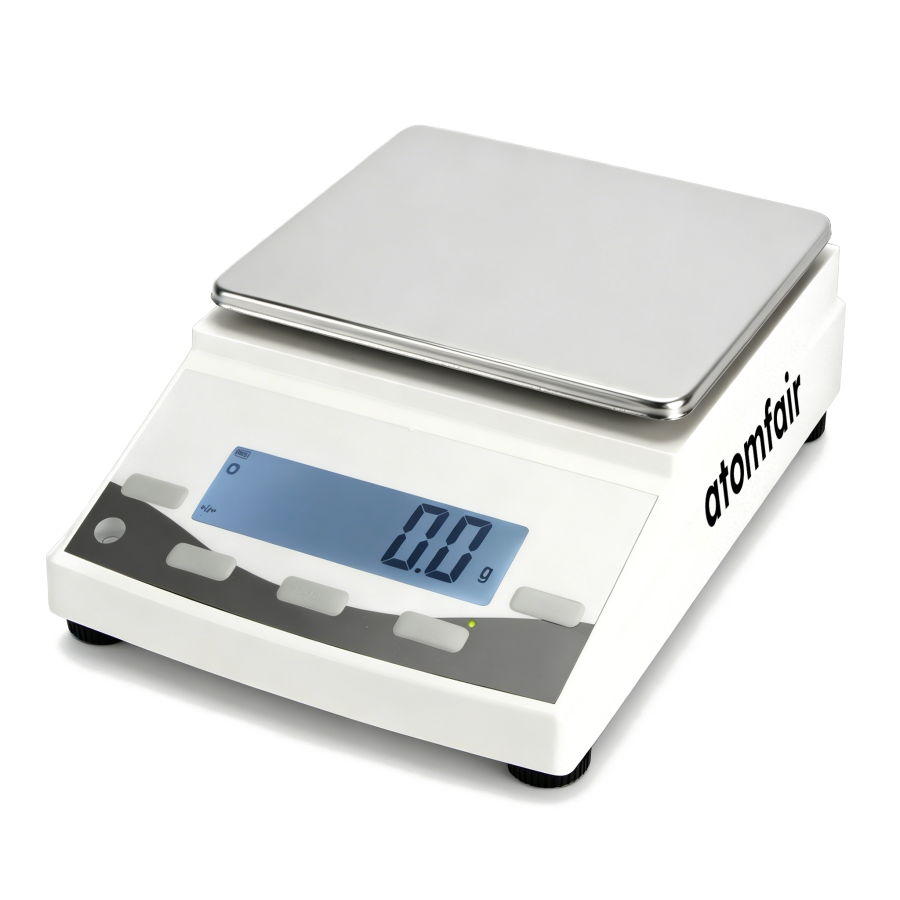

ATOMFAIR® YP1101N white electronic balance with an open large square stainless steel pan and a digital LCD display on a white background.

ATOMFAIR YP1101N 1000g High Capacity Research Grade Electronic Balance 0.1g Precision Lab Weighing Scale

$300.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® YP1101N HIGH-CAPACITY PRECISION ELECTRONIC BALANCE RESEARCH GRADE MEASUREMENT PLATFORM Product Overview The ATOMFAIR® YP1101N precision electronic balance delivers an expanded 1000g operational workload envelope while preserving streamlined functional efficiency for baseline laboratory testing. Featuring complete multi-tier diagnostic telemetry alerts and universal AC/DC hybrid battery integration, it safely mitigates ambient interference signals to preserve strict measurement traceability and secure high-reproducibility material tracking records. YP1101N Model Core Specifications PARAMETER ITEM TECHNICAL SPECIFICATIONS Model Number YP1101N Maximum Capacity 1000g Readability 0.1g Repeatability ±0.1g Linearity ±0.2g Pan Size Φ130mm Core Features & Technical Advantages Modern Minimalist Interface: Sleek structural housing paired standard with…

Category: ,

Description

ATOMFAIR® YP1101N HIGH-CAPACITY PRECISION ELECTRONIC BALANCE

RESEARCH GRADE MEASUREMENT PLATFORM

Product Overview
The ATOMFAIR® YP1101N precision electronic balance delivers an expanded 1000g operational workload envelope while preserving streamlined functional efficiency for baseline laboratory testing. Featuring complete multi-tier diagnostic telemetry alerts and universal AC/DC hybrid battery integration, it safely mitigates ambient interference signals to preserve strict measurement traceability and secure high-reproducibility material tracking records.


YP1101N Model Core Specifications
PARAMETER ITEM TECHNICAL SPECIFICATIONS
Model Number YP1101N
Maximum Capacity 1000g
Readability 0.1g
Repeatability ±0.1g
Linearity ±0.2g
Pan Size Φ130mm

Core Features & Technical Advantages
  • Modern Minimalist Interface: Sleek structural housing paired standard with a premium high-contrast LCD display for direct metrics visibility.
  • Full Spectrum Tare Capability: Immediate single-button zeroing isolates material container tares across the entire weighing range.
  • Comprehensive Guard Architecture: Features automated firmware tracking for zero points, overload warnings, low-load parameters, and error alarms.
  • Scalable Expansion Support: Internal motherboard allows field-upgrades for versatile functions, including advanced part-counting data tracks.
  • Dual AC/DC Hybrid Supply: Adaptive power routing configuration permits seamless continuous operations outside standard electrical grid nets.
  • Standard RS232 Communication: Integrated physical serial port facilitates fast digital telemetry streaming straight into laboratory software platforms.
  • One-Key Metric Conversion: Direct keystroke firmware converter toggles smoothly across global scientific and commercial units.


Full Series Parameters Comparison Table
PARAMETER MODEL YP601N YP1101N YP2101N YP3101N YP5101N YP6101N
Max Capacity (g) 600 1000 2000 3000 5000 6000
Readability (g) 0.1 0.1 0.1 0.1 0.1 0.1
Repeatability (g) ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
Linearity (g) ±0.2 ±0.2 ±0.2 ±0.2 ±0.2 ±0.2
Pan Size (mm) Φ130 Φ130 Φ130 180×156 180×156 180×156

COMPLIANCE NOTICE: The YP1101N 1000g threshold configuration requires absolute verification leveling to safeguard the strain mechanics matrix against offset error loops. For advanced software module upgrades, bulk institutional lots, or formal contract quotes, please signal our metrics support desk.

TAILORED METROLOGY SOLUTIONS FOR RESEARCH
Contact our engineering team for technical calibration documentation or institutional quotes.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®



Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
