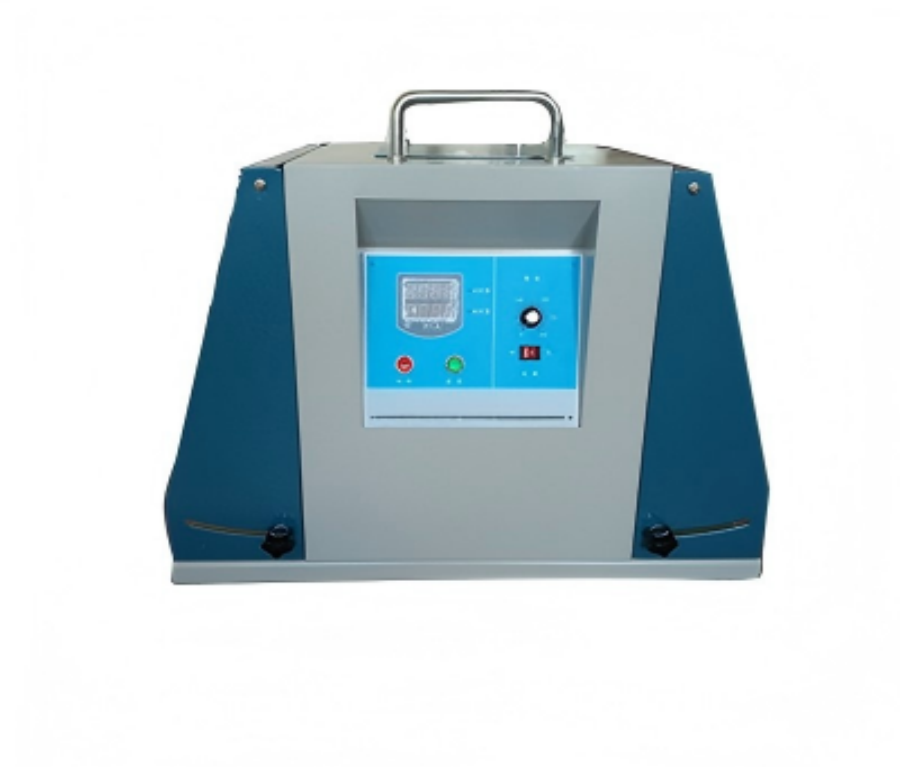

Atomfair PIO 563 Portable Infrared Photometric Oil Analyzer
Product Overview
Atomfair PIO 563 Portable Infrared Photometric Oil Analyzer boasts a compact size, light weight, and a detachable integrated optical path design, enabling easy portability. It meets international infrared spectral standards with excellent stability and high signal-to-noise ratio. Widely applied for the determination of petroleum, animal and vegetable oils in industrial wastewater and domestic sewage, it delivers reliable detection support for both on-site and laboratory scenarios.
Core Product Features
- Exceptional Portability: Equipped with an exclusive safety protection case, it is convenient to carry and flexible to operate, perfectly suitable for mobile work scenarios like field operations.
- Efficient Opto-Electronic System: Adopts a pulse light source to effectively reduce light source heating intensity, facilitating system heat dissipation and enhancing instrument reliability as well as component service life. The pre-integrated narrow-band active filter and digital phase-locked amplifier significantly improve the signal-to-noise ratio, ensuring more stable instrument performance.
- Real-Time Automatic Zero Adjustment: The instrument collects signals separately when the light source flashes on and off, realizing real-time automatic zero adjustment, simplifying the operation process, and guaranteeing stable long-term operation of the instrument.
- Long Continuous Measurement Time: Equipped with a high-power battery, it can perform continuous measurement for over 8 hours and supports connection to automobile power supply, making on-site measurement more convenient and efficient.
- Compatibility with Multiple Extractants: Compatible with various extractants such as tetrachloroethylene, carbon tetrachloride, S316, and trichlorotrifluoroethane, meeting different detection requirements.
- User-Friendly Operation: Features a large touch screen with intuitive operation, supporting both standalone use and computer connection for collaborative work, lowering the operational threshold.
Technical Specifications
| Technical Index | Specific Parameters |
|---|---|
| Wavenumber Scanning Range | 3400cm⁻¹ – 2400cm⁻¹ (2.5-4.0µm) |
| Wavenumber Accuracy | ±1cm⁻¹ |
| Wavenumber Repeatability | ±1cm⁻¹ |
| Spectral Resolution | 1cm⁻¹ |
| Measurement Repeatability | <3% |
| Measurement Accuracy | ±3% |
| Absorbance Linear Range | 0.0000~1.9999AU |
| Correlation Coefficient | r>0.999 (Infrared Non-Dispersive Method) |
| Measurement Range | 0.02~8000mg/L (Direct Measurement Without Dilution) |
| Detection Limit (3SD) | <0.2mg/L (Solution Concentration) |
| Overall Dimensions | 390×370×240mm |
| Weight | 19kg |
| Power Supply | DC 12V 10Ah Lithium Battery, AC 220V±10% |
| Operating Humidity | <80% |
| Operating Temperature | 5-35°C |
