NFM111 Cathode Sheet 22 mg/cm² Dry Process Sodium-ion 5 Sheets

$75.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair Ni₀.₉Mn₀.₀₃Co₀.₀₇ (Ni90) High-Nickel Electrode Sheet RESEARCH GRADE MATERIAL Product Overview This premium Ni₀.₉Mn₀.₀₃Co₀.₀₇ (Ni90) electrode sheet is specifically engineered for high-energy density Lithium-ion battery research. Featuring a high active material content of 97.2 wt% and a precision single-side coating, it provides an exceptional specific capacity of 205 mAh/g. This material is ideal for laboratory-scale testing, ensuring consistent quality for advanced material evaluation and electrochemical characterization. Technical Specifications PARAMETER DETAILS Material Type Ni₀.₉Mn₀.₀₃Co₀.₀₇ (Ni90) Active Material Content 97.2 wt% Specific Capacity (1C) 205 mAh/g Compaction Density 3.4 g/cc Coating Areal Density 29 mg/cm² Electrode Dimensions 90 mm × 120 mm…

SKU: AFMSPPUL047
Category:
Tags:
Brands:

Description

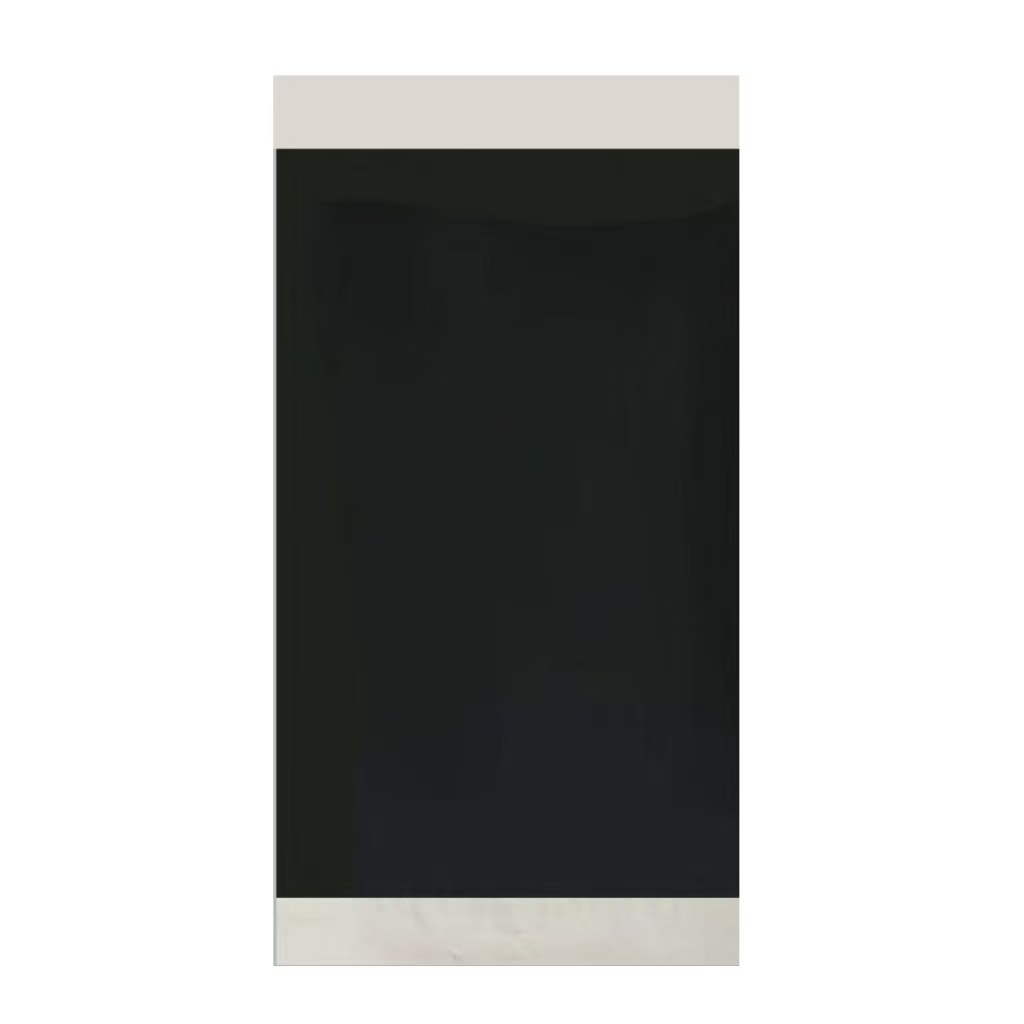

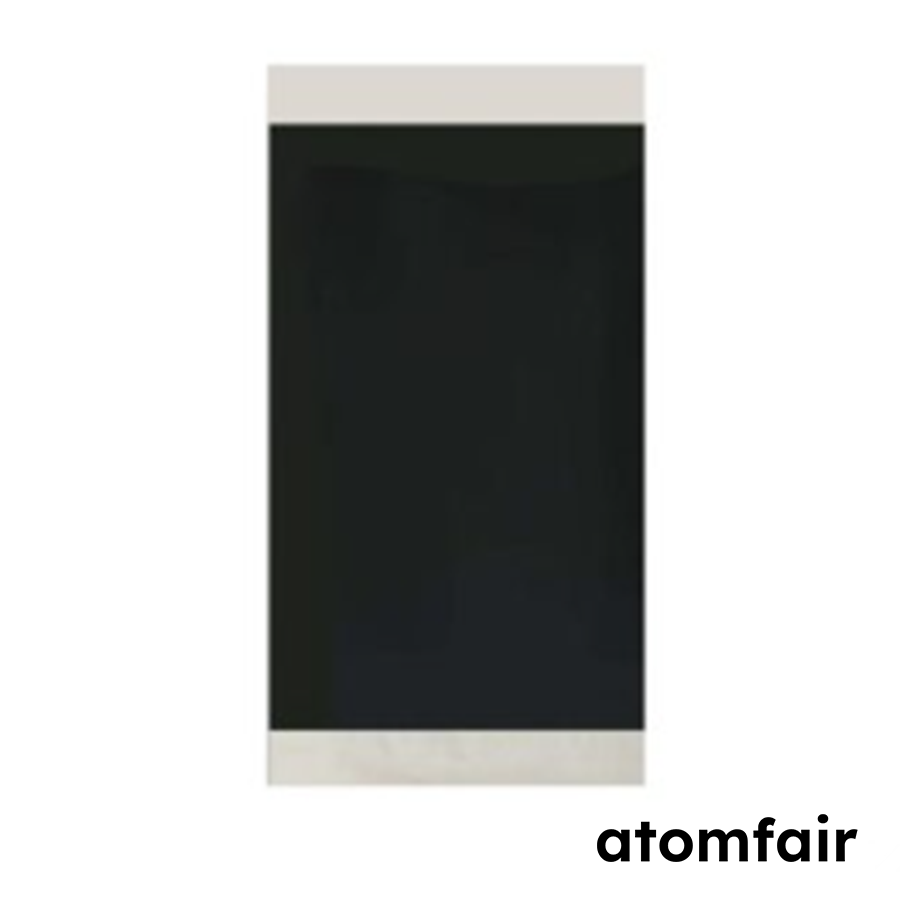

Atomfair Ni₀.₉Mn₀.₀₃Co₀.₀₇ (Ni90) High-Nickel Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview

This premium Ni₀.₉Mn₀.₀₃Co₀.₀₇ (Ni90) electrode sheet is specifically engineered for high-energy density Lithium-ion battery research. Featuring a high active material content of 97.2 wt% and a precision single-side coating, it provides an exceptional specific capacity of 205 mAh/g. This material is ideal for laboratory-scale testing, ensuring consistent quality for advanced material evaluation and electrochemical characterization.

Technical Specifications

PARAMETER DETAILS
Material Type Ni₀.₉Mn₀.₀₃Co₀.₀₇ (Ni90)
Active Material Content 97.2 wt%
Specific Capacity (1C) 205 mAh/g
Compaction Density 3.4 g/cc
Coating Areal Density 29 mg/cm²
Electrode Dimensions 90 mm × 120 mm
Substrate Aluminum Foil (Standard Grade)
Coating Side Single-side coated

Key Features & Advantages

  • Ultra-High Nickel Content: Ni90 chemistry provides superior energy density and discharge capacity (205 mAh/g).
  • High Active Purity: 97.2 wt% active content maximizes specific performance in experimental cell designs.
  • Precision Density: Engineered compaction density of 3.4 g/cc ensures optimal electronic and ionic pathways.
  • Research Accuracy: Strict areal density control at 29 mg/cm² for reproducible electrochemical data.

APPLICATION SCOPE: High-energy density Lithium-ion research, cathode material evaluation, and laboratory cell assembly.
PACKAGING: Standardized sheets, vacuum-sealed for maximum material longevity.
IMPORTANT NOTICE: Sold exclusively for laboratory research and development purposes. Handle with care under appropriate laboratory environments.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This Ni90 cathode sheet features a single-side coating on aluminum foil with an active material content of 97.2 wt%. It is designed for lithium-ion battery research and provides a specific capacity of 205 mAh/g at 1C.

  • Active Material Content: The active material content is 97.2 wt%.
  • Specific Capacity: The specific capacity at 1C is 205 mAh/g.
  • Compaction Density: The compaction density is 3.4 g/cc.
  • Coating Areal Density: The coating areal density is 29 mg/cm².
  • Electrode Dimensions: The electrode dimensions are 90 mm by 120 mm.

How does the single-side coating and areal density of 29 mg/cm² affect the trade-off between energy density and rate capability in Ni90 cathodes?

The single-side coating with an areal density of 29 mg/cm² and compaction density of 3.4 g/cc is specifically engineered for high-energy density Lithium-ion research, achieving 205 mAh/g at 1C. This design prioritizes energy density over power density, as no high-rate performance data is provided in the specifications.

What battery research applications are these Ni90 electrode sheets designed for?

These electrode sheets are designed for high-energy density Lithium-ion battery research, specifically for laboratory-scale cathode material evaluation and coin cell assembly. The standardized dimensions (90×120 mm) and single-side coating make them suitable for reproducible electrochemical characterization.

What storage conditions are required for maintaining the performance of Ni90 cathode sheets?

The electrode sheets are vacuum-sealed to maximize material longevity. For research applications, they should be handled with care under appropriate laboratory environments as specified in the product notice. No specific storage temperature or humidity conditions are mandated, but the vacuum packaging protects against ambient exposure.

This Ni90 (Ni₀.₉Mn₀.₀₃Co₀.₀₇) cathode sheet provides a high specific capacity of 205 mAh/g and 97.2% active content, delivering performance suitable for high-energy-density lithium-ion research. Its single-side coating and vacuum-sealed packaging impose handling and assembly constraints typical of high-nickel cathode materials.

Positive

  • High specific capacity: The Ni90 chemistry delivers a specific capacity of 205 mAh/g at 1C, enabling high-energy-density cell designs.
  • Superior active material purity: With 97.2 wt% active content, the electrode minimizes inactive components, maximizing the energy per unit mass.

Trade-offs

  • Single-side coating limitation: The single-side coated design halves the active material loading per sheet compared to double-side coated equivalents, requiring more layers for a given capacity.
  • Air-sensitive storage required: Vacuum-sealed packaging indicates the material is prone to degradation in ambient conditions, necessitating glovebox handling and inert atmosphere storage to prevent moisture uptake.
