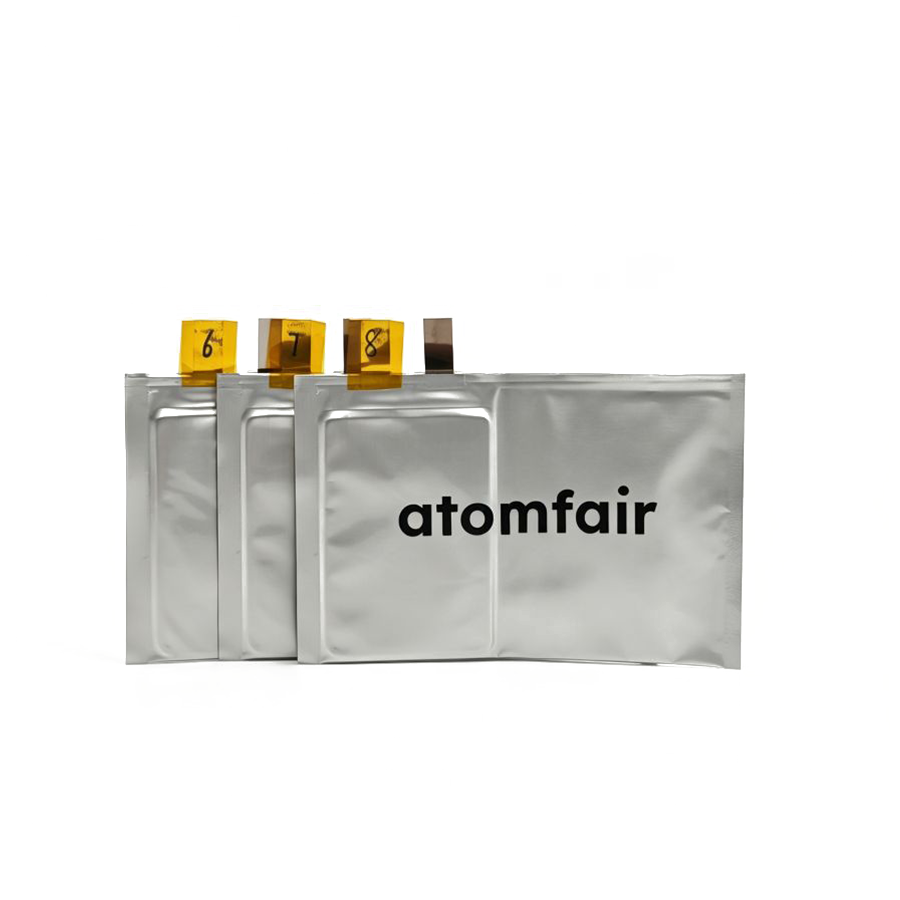

Three ATOMFAIR® advanced anode-free Ni90 battery cells positioned side-by-side with insulated golden tab extensions.

1AH Ni90 Carbon Coated Copper Dry Pouch Cell

$70.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy carbon coated copper foil price deals for solid state electrolyte pouch cell R&D. ISO 9001 compliance standards. Contact inquiry@atomfair.com.

Quantity Price
1 – 4 $70.00
5 – 19 $119.95
20 – 49 $89.95
50+ $69.95
SKU: AAPO811GRCA2A0-1
Category:
Tags: , ,
Brands:

Description

ATOMFAIR NI90 CARBON COATED COPPER DRY POUCH CELL

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR Ni90 Carbon-Coated Copper Dry Pouch Cell is an advanced, electrolyte-free electrochemical testing baseline architecture engineered for precise solid state electrolyte pouch cell investigations. By eliminating pre-filled liquid chemistries, this cell incorporates a premium ultra-high capacity NiCoMn (90:7:3) cathode array paired with an engineered Cu-C carbon-coated copper foil substrate matrix. This design facilitates absolute experimental control, isolating pure interfacial degradation mechanics during validation workflows. It serves as an uncompromised development benchmark for corporate and academic institutions seeking optimized current-collector interfaces while balancing institutional carbon coated copper foil price targets.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Cell Architecture Type Dry Pouch Cell Configuration (Electrolyte Unfilled)
Nominal Capacity 1.17 Ah
Voltage Range 2.5 V × 4.2 V
NP Ratio – (Optimized Baseline Layering)
2. Cathode (Positive Electrode) Parameters
Material Type NiCoMn (90:7:3 / High-Nickel 9-Series Matrix)
Active Material Percent 97.2%
Specific Capacity 203 mAh/g
Compaction Density 3.4 g/cc
Coating Areal Density 14.5 mg/cm2
Dimensions 45.5 × 64 mm
3. Anode (Negative Electrode) Parameters
Material Type Cu-C (Carbon-Coated Copper Foil Base Architecture)
Active Material Percent –
Specific Capacity –
Compaction Density –
Coating Areal Density –
Dimensions 46.5 × 65 mm
4. Separator & Physical Package Metrics
Separator Specification 12 um PE + 2 um ceramic coating
Manufacturing Rules Processed under strict ISO 9001 compliance standards conditions
Alternative Options Explore our related dry core configurations. For urgent technical custom dimensions or multi-layer stacking adjustments, please contact our support team.

Key Features & Advantages
  • Unfilled Dry Core Matrix: Shipped vacuum-sealed and electrolyte-free, allowing complete operational flexibility for customized liquid, gel, polymer, or solid electrolytes.
  • High Nickel NiCoMn Cathode: Engineered with premium 90:7:3 phase purity to guarantee maximum specific capacity benchmarking profiles up to 203 mAh/g.
  • Carbon-Coated Copper Current Collector: Advanced Cu-C anode matrix lowers interfacial contact resistance and prevents localized side reactions during cycling.
  • Ceramic Separator Integration: Reinforced 12 um PE + 2 um ceramic layering delivers superior mechanical integrity and thermal abuse protection under demanding test conditions.

APPLICATION SCOPE: High-nickel current collector research, custom electrolyte compatibility evaluation, polymer electrolyte pouch cell validation, and institutional lithium battery R&D.
PACKAGING: Hermetically vacuum-sealed multilayer aluminum-plastic protective dry configuration with laboratory batch registration control logs.
IMPORTANT NOTICE: This dry pouch cell core is highly sensitive to ambient moisture exposure. Keep vacuum packs completely sealed and handle exclusively within an anhydrous inert gas glovebox environment to prevent contamination or premature degradation before electrolyte injection and cell validation.

Frequently Asked Technical Questions

Why is ATOMFAIR Ni90 Pouch Cell preferred as a solid state electrolyte pouch cell?

ATOMFAIR Ni90 Pouch Cell functions as a premier solid state electrolyte pouch cell for advanced systems. It delivers an ultra-high Ni90 cathode chemistry matched with dense Cu-C matrices, significantly boosting performance metrics and phase purity during laboratory testing workflows.

how to prevent moisture degradation in lithium batteries?

To successfully solve how to prevent moisture degradation in lithium batteries without secondary contamination, this material must be handled strictly according to inert gas glovebox storage protocols before thermal processing.

How does ATOMFAIR Ni90 Pouch Cell compare to traditional alternative options regarding operational stability?

Compared to standard alternatives, the optimized matrix of ATOMFAIR Ni90 Pouch Cell incorporates specialized chemical doping. This unique architecture dramatically enhances structural resistance against degradation, preserving long-term validation integrity.

What material processing benefits does the microstructure of ATOMFAIR Ni90 Pouch Cell offer?

Boasting engineered particle structuring and optimized specific surface area, this product offers superior sinterability. The controlled form factor facilitates lower thermal processing thresholds and promotes ideal grain boundary integration during cell fabrication.

How is the phase purity and quality control of this research-grade batch validated?

Every competitive batch undergoes rigid analytical quality validation testing. Total elemental and metallic impurities are strictly regulated below strict industry thresholds to eliminate parasitic electronic leakage and maintain uncompromised data reproducibility.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR

Quality Standards & Performance Verification

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Shipping & Returns

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window for completely unopened items).

Additional information

Weight 0.3 kg
Dimensions 23 × 15 × 3 cm
