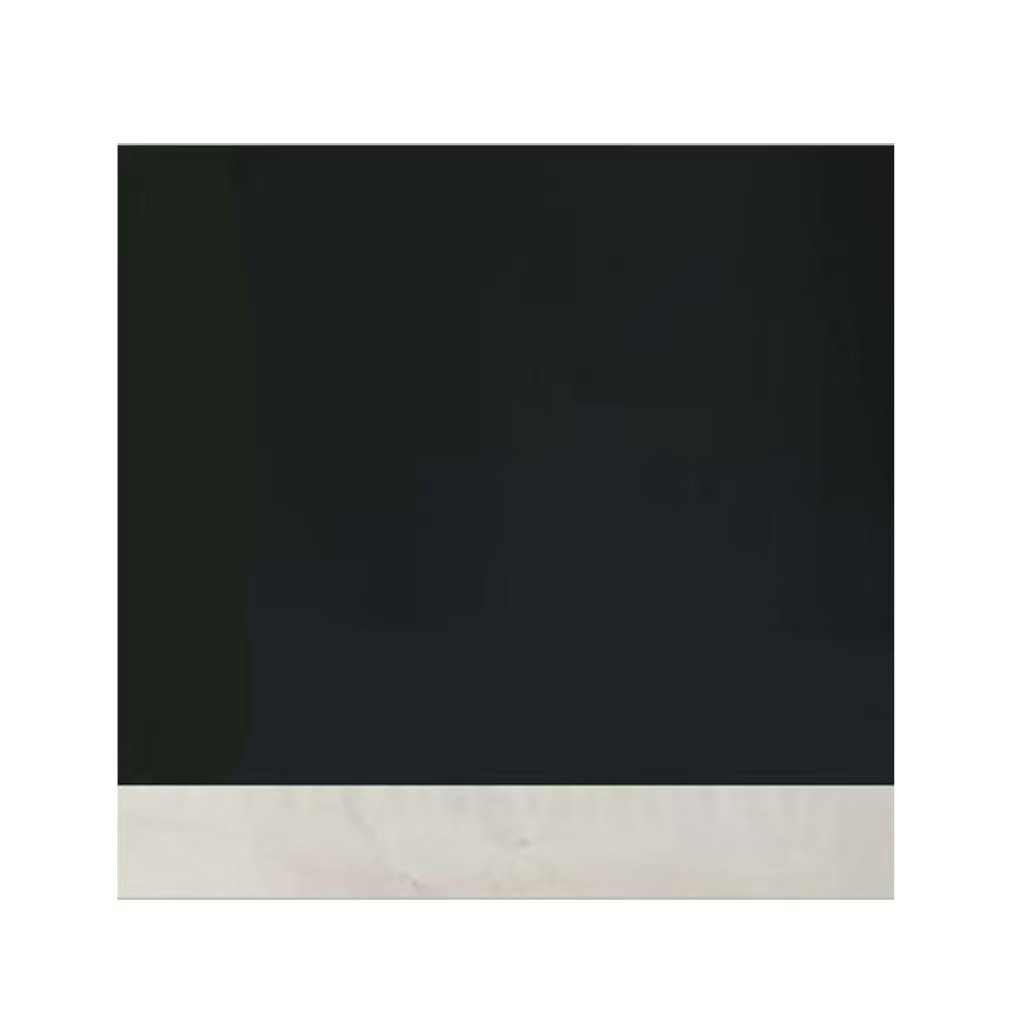

Dry process single-sided lithium-rich manganese-based LMR cathode electrode sheet 35 mg/cm² LMR-S03 by Atomfair.
ATOMFAIR® LMR Cathode Electrode Sheet (Single-Sided) - LMR-S03, Dry Process, 35 mg/cm², 5 Pack - Image 2
ATOMFAIR® LMR Cathode Electrode Sheet (Single-Sided) - LMR-S03, Dry Process, 35 mg/cm², 5 Pack - Image 3
ATOMFAIR® LMR Cathode Electrode Sheet (Single-Sided) - LMR-S03, Dry Process, 35 mg/cm², 5 Pack - Image 4

ATOMFAIR® LMR Cathode Electrode Sheet (Single-Sided) – LMR-S03, Dry Process, 35 mg/cm², 5 Pack

$109.00

Atmofair LMR-S03 Lithium-rich Manganese-based Cathode Electrode Sheet, 35 mg/cm²,Single-sided wet coating with moderate density.

Quantity Discount (%) Price
1 – 2 — $109.00
3+ — $119.00
Category:
Tags: , , , , ,
Brands:

Description

Atomfair LMR-S03 Lithium-rich Manganese-based Cathode (LMR) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
Atomfair LMR-S03 is a premium-grade Lithium-rich Manganese-based Cathode (LMR) electrode sheet, featuring a precision single-sided coating at 35 mg/cm² manufactured via an advanced dry process. Formulated explicitly for Lithium-ion battery R&D, this pack contains 5 sheets to guarantee standard uniformity during laboratory screening, active material phase evaluation, and high-fidelity electrochemical performance analysis.

Technical Specifications
PARAMETER DETAILS
Product code S03
Coating material LMR
Active material ratio 96.00%
Coating density 35 mg/cm²
Coating area 120*90 mm
Coating Type Single-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 4.2 mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 140*90 mm
Compaction Density 2.50 g/cm³
Capacity 300 mah/g
Coating Process Dry Process

Key Features & Advantages
  • High Specific Capacity: Designed with a 300 mAh/g capacity matrix paired with an optimized 96.00% active target chemistry composition.
  • Dry Coating Excellence: Deliver clean structural film properties and highly uniform 35 mg/cm² loading across the single-sided profile.
  • Carbon-Modified Interface: Premium carbon-coated aluminum foil mitigates contact resistance boundaries and cell polarization during cycle testing.
  • Architectural Adaptability: Full structural customization regarding coating depth/width and foil dimensions is supported upon direct project inquiry.

APPLICATION SCOPE: High-energy Lithium-ion battery R&D, structural material validation, and advanced electrochemical diagnostics.
PACKAGING: Standard pack structure includes 5 sheets/pack to safeguard strict experimental batch parameters.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Recommended conditioning baseline targets 12 hours under vacuum baking at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or custom fabrication requests.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
