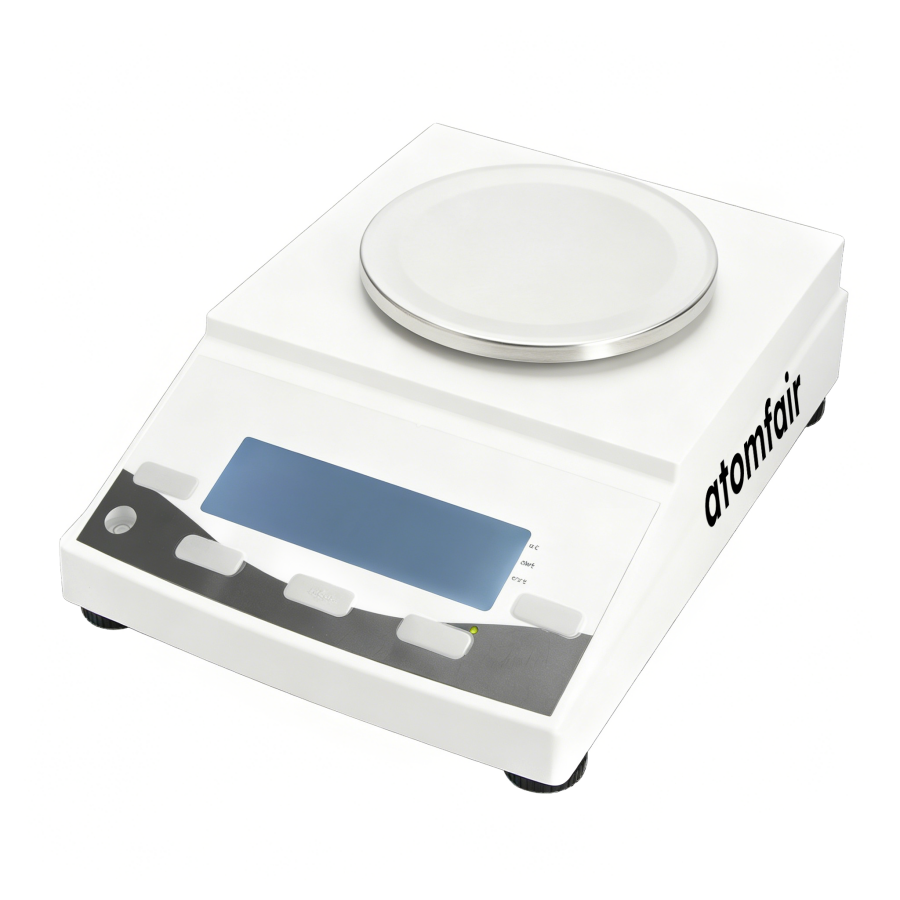

ATOMFAIR® JY1002 white electronic balance with an open circular stainless steel pan and a digital LCD display on a white background.

ATOMFAIR JY1002 precision electronic balance features 100g maximum capacity and 0.01g readability. Equipped with dual anti-interference transducers and dual overload protection, it supports AC/DC dual power supply and comes with standard RS232 interface, ideal for high-precision weighing in research laboratories.

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® JY1002 LABORATORY PRECISION ELECTRONIC BALANCE SCI-GRADE MEASUREMENT SYSTEM Product Overview The ATOMFAIR® JY1002 precision electronic balance features a minimalist, high-end structural aesthetic combined with meticulous analytical tracking for fast laboratory workflows. Outfitted with advanced dual transducer protection loops and flexible universal AC/DC power routing, it systematically isolates ambient structural signals and power grid line fluctuations to safeguard strict calibration linearity and secure high-reproducibility verification data. JY1002 Model Core Specifications PARAMETER ITEM TECHNICAL SPECIFICATIONS Model Number JY1002 Maximum Capacity 100g Readability 0.01g Repeatability ±0.01g Linearity ±0.02g Pan Size Φ130mm Core Features & Technical Advantages Sleek Minimalist Aesthetic: Form-fitted architectural housing…

Category: ,

Description

ATOMFAIR® JY1002 LABORATORY PRECISION ELECTRONIC BALANCE

SCI-GRADE MEASUREMENT SYSTEM

Product Overview
The ATOMFAIR® JY1002 precision electronic balance features a minimalist, high-end structural aesthetic combined with meticulous analytical tracking for fast laboratory workflows. Outfitted with advanced dual transducer protection loops and flexible universal AC/DC power routing, it systematically isolates ambient structural signals and power grid line fluctuations to safeguard strict calibration linearity and secure high-reproducibility verification data.


JY1002 Model Core Specifications
PARAMETER ITEM TECHNICAL SPECIFICATIONS
Model Number JY1002
Maximum Capacity 100g
Readability 0.01g
Repeatability ±0.01g
Linearity ±0.02g
Pan Size Φ130mm

Core Features & Technical Advantages
  • Sleek Minimalist Aesthetic: Form-fitted architectural housing paired standard with a premium backlit LCD panel for clear numerical transparency.
  • Full Spectrum Tare Capability: Immediate single-button zeroing isolates material container tares across the entire weighing range.
  • Comprehensive Diagnostic Telemetry: Hardened firmware handles automatic baseline auto-zeroing, overload/underload indicators, and real-time fault tracking alarms.
  • Versatile Operational Layouts: Intelligent internal processing supports multiple advanced application functions, including piece-counting networks.
  • Dual AC/DC Hybrid Routing: Flexible power supply architecture permits seamless mobile operations outside standard bench electricity grids.
  • Double Overload Safeguard Architecture: Integrated physical mechanical stops and electronic limiters protect the delicate internal transducer core from unexpected shock.
  • Standard RS232 Communication: High-fidelity physical communication port allows instant digital data logging straight into laboratory desktop PCs.
  • One-Touch Metric Shifting: Instant firmware converter maps rapid digital switching across distinct global scientific metrics.


Full Series Parameters Comparison Table
PARAMETER MODEL JY1002 JY2002 JY3002 JY5002 JY6002 JY10002 JY20002
Max Capacity (g) 100 200 300 500 600 1000 2000
Readability (g) 0.01 0.01 0.01 0.01 0.01 0.01 0.01
Repeatability (g) ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01 ±0.01
Linearity (g) ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Pan Size (mm) Φ130 Φ130 Φ130 Φ130 Φ130 Φ130 Φ130

COMPLIANCE NOTICE: The JY high-precision series requires a structured, vibration-isolated work table to maintain full 0.01g linearity mapping. For comprehensive RS232 telemetry instruction maps, wholesale procurement schedules, or official contract proforma invoices, please coordinate with our support group.
