How does the 97.4% active material ratio in the Ni90 cathode affect long-term cycling stability?

The high 97.4% active material ratio maximizes specific capacity (~220-230 mAh/g), but the polycrystalline structure of Ni90 enhances mechanical stability and reduces interfacial degradation, mitigating capacity fade during cycling. The areal density of 57 mg/cm² provides consistent high energy density without compromising structural integrity.

Can this Ni90 electrode be directly integrated into full-cell configurations with lithium metal anodes without additional coatings?

Yes, the Ni90 cathode is designed for direct integration with lithium metal anodes in full-cell configurations. The double-side coating with 57 mg/cm² areal density and aluminum current collector are optimized for such pairings, and the product description explicitly lists lithium metal as a compatible anode material for research use.

What are the recommended storage conditions to prevent performance degradation of the Ni90 cathode?

The product notice specifies storage in a dry environment to prevent moisture-induced degradation. As a high-nickel cathode, Ni90 is sensitive to humidity; therefore, it should be kept in a sealed container with desiccant or inside a dry room/glovebox. The electrode arrives as uncalendered dry sheets, and any exposure to ambient air should be minimized.

FREE SHIPPING with $59 or More. New Customer? Inquire for Major Discount & Free Samples! Online Payments & POs Accepted.

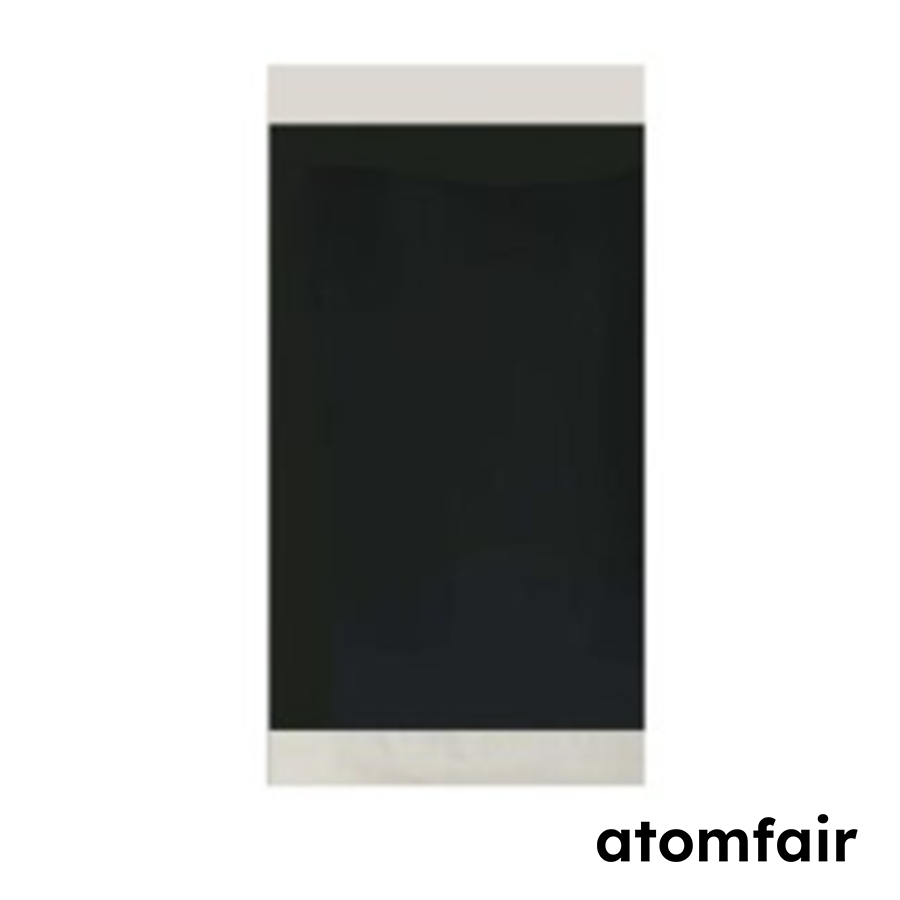

A rectangular ATOMFAIR® Ni90 double-side high-nickel NCM cathode sheet with silver metal borders.

Ni90 NCM 28.5 mg/cm² Polycrystalline Double Side 5 Pack

$109.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

The Atomfair Ni90 Cathode Electrode features a high-nickel polycrystalline structure with precise double-side coating at 57 mg/cm² areal density and a fixed compaction density of 3.3 g/cc, optimized for advanced lithium-ion battery research. This electrode is designed for direct integration with electrolytes and pairing with diverse anodes (graphite, silicon, or lithium metal), delivering exceptional capacity and structural stability for cutting-edge experiments.

Quantity	Price
1 – 4	$109.00
5+	$99.00

SKU: AFMSKCKE367

Category: Electrode Sheets

Brands: Atomfair®

Description

Description

Atomfair Ni90 Cathode Electrode

RESEARCH GRADE MATERIAL

Product Overview

Technical Specifications

PARAMETER	VALUE
Cathode Material	Polycrystalline Ni90 (LiNi₀.₉Co₀.₀7Mn₀.₀3O₂)
Active Material Ratio	97.4%
Areal Density	57 mg/cm² (Double-side coating)
Current Collector	Aluminum foil (standard thickness: 12 μm, customizable)
Compaction Density	3.3g/cc
Dimensions	10*15cm (5 sheets per pack)

Key Features & Advantages

Controlled Areal Density: Double-side coating with 57 mg/cm² loading ensures consistent performance and high energy density.
Polycrystalline Structure: Enhances mechanical stability and reduces interfacial degradation.
Research-Flexible Format: Uncalendered dry electrode allows tunable porosity and compression for process studies.
High Capacity: Ni90 chemistry delivers ~220-230 mAh/g specific capacity.
Custom Compatibility: Ideal for half/full-cell configurations with graphite, Si-based, or lithium metal anodes.

APPLICATION SCOPE: Advanced lithium-ion battery research, process studies, half/full-cell testing, and direct pairing with electrolyte systems and anodes (graphite, silicon, or lithium metal).

PACKAGING INFO: 5 sheets per pack.

ORDERING INFORMATION: Contact support@atomfair.com for technical datasheets, custom requirements, or bulk orders.

IMPORTANT NOTICE: For research use only. Store in a dry environment. Dual-side coating and custom areal densities available upon request.
