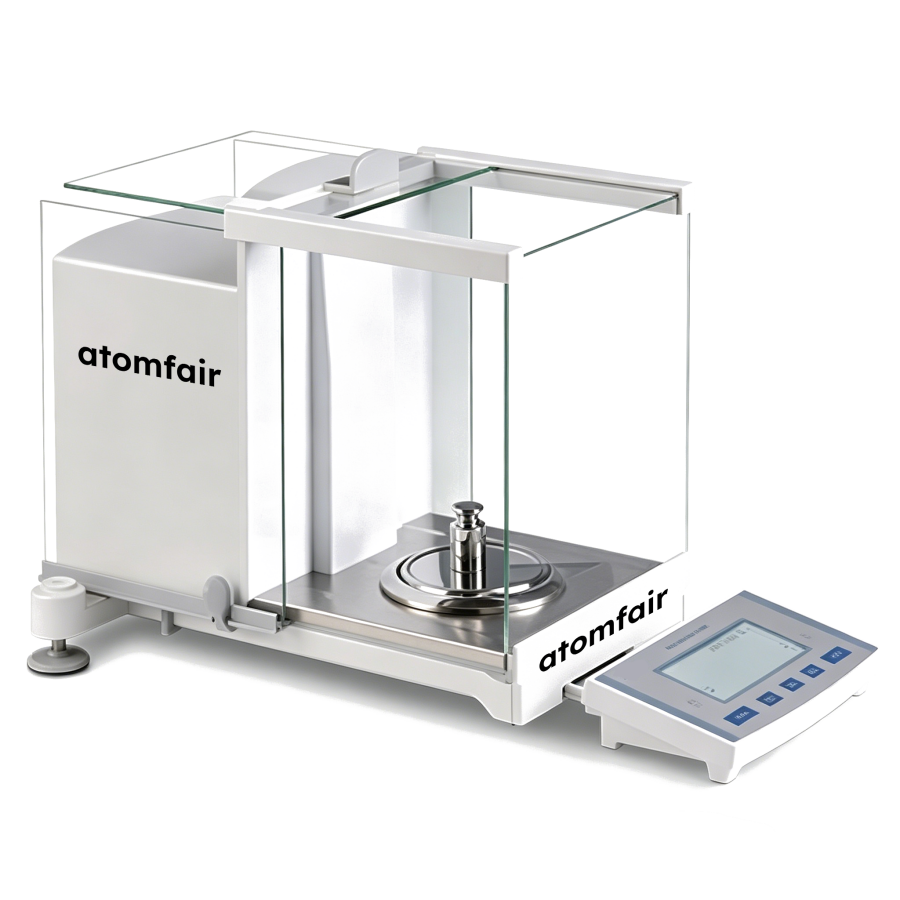

ATOMFAIR® ES-E210A research grade electronic analytical balance with glass draft shield and auto temperature calibration.

ATOMFAIR ES-E210A 210g 0.1mg Research Grade Electronic Analytical Balance With Auto Temperature Calibration

$985.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® ES-E210A ELECTRONIC ANALYTICAL BALANCE RESEARCH GRADE METROLOGY Product Overview The ATOMFAIR® ES-E210A sets the industry benchmark for laboratory cell-to-cell consistency and baseline testing control. Engineered with a classic rear-mounted electromagnetic force restoration sensor, this series eliminates measurement variables during rigorous sample processing. Its distinctive split-type architecture decouples the high-brightness LED display unit from the weighting block, mitigating operational kinetic vibrations to ensure pure validation platform benefits. Optimized for ultra-low mass powder and fluid tracking up to 210g, it remains a premier infrastructure choice for premium analytical labs exploring high precision laboratory scale price options. ES-E210A Detailed Metrology Parameters PARAMETER…

Category: ,

Description

ATOMFAIR® ES-E210A ELECTRONIC ANALYTICAL BALANCE

RESEARCH GRADE METROLOGY

Product Overview
The ATOMFAIR® ES-E210A sets the industry benchmark for laboratory cell-to-cell consistency and baseline testing control. Engineered with a classic rear-mounted electromagnetic force restoration sensor, this series eliminates measurement variables during rigorous sample processing. Its distinctive split-type architecture decouples the high-brightness LED display unit from the weighting block, mitigating operational kinetic vibrations to ensure pure validation platform benefits. Optimized for ultra-low mass powder and fluid tracking up to 210g, it remains a premier infrastructure choice for premium analytical labs exploring high precision laboratory scale price options.

ES-E210A Detailed Metrology Parameters
PARAMETER ITEM TECHNICAL SPECIFICATION DETAILS
Product Model ES-E210A
Product Classification Electronic Analytical Balance
Readability (d) 0.1mg
Maximum Capacity (Max) 210g
Repeatability Error ±0.1mg
Linearity Error ±0.2mg
Average Stabilization Time ≤2.5s
Initial Warm-up Duration 30~60min
Weighing Pan Dimensions Φ80mm
Draftshield Internal Width 230mm
Overall Physical Dimensions 470 × 310 × 330mm
Operating Ambient Temp 18°C~23°C
Operating Ambient Humidity 20%~80%RH
Power Supply Specifications Input: 220VAC 50Hz, Output: 12V/2A

Semi-Micro Analytical Balance Comprehensive Matrix
MODEL / PARAMETER ES1035B ES1055B ES1085B ES2035B ES2055B ES2085B ES1205B
Readability (d) 0.01mg 0.01mg 0.01mg 0.01mg 0.01mg 0.01mg 0.01mg
Max Capacity (Max) 31/120g 51/120g 82/120g 31/210g 51/210g 82/210g 120g
Repeatability Error ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg
Linearity Error ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg
Calibration Weight 10g 10g 10g 10g 10g 10g 10g
Stabilization Time ≤2.5s ≤2.5s ≤2.5s ≤2.5s ≤2.5s ≤2.5s ≤2.5s
Preheat Duration 30~60m 30~60m 30~60m 30~60m 30~60m 30~60m 30~60m
Pan Size / Draftshield Φ80mm Stainless Steel Pan / 230mm Internal Chamber Safety Width
Dimensions / Environment 470 × 310 × 330mm Form Factor / 18°C~23°C Thermal Zone / 20%~80%RH Matrix
Power Parameters Unified Architecture: 220VAC 50Hz Stable Input, 12V/2A Pure DC Output

Electronic Analytical Balance Comprehensive Matrix
MODEL / PARAMETER ES-E120B ES-E210B ES-E220B ES-E120A ES-E210A ES-E220A ES-E320A
Readability (d) 0.1mg Across Entire Configuration Family
Max Capacity (Max) 120g 210g 220g 120g 210g 220g 320g
Repeatability Error ±0.1mg Controlled Tolerance Threshold
Linearity Error ±0.2mg Linearity Correction Limit
Stabilization Time ≤2.5 seconds (Average Kinetic Interval)
Preheat Duration 30~60 minutes Baseline Core Setup
Hardware Form Factor Φ80mm Pan / 230mm Internal Chamber Width / 470 × 310 × 330mm Total Enclosure
Operating Conditions 18°C~23°C Regulated Temperature / 20%~80%RH / Input 220VAC, Output 12V/2A

General Matrix Specifications
GENERAL ATTRIBUTE STANDARD CONFIGURATION VALUES
Stabilization Time ≤2.5s (Average Operational Interval)
Initial Warm-up Duration 30~60min for Core Metrology Stabilization
Weighing Pan Dimension Φ80mm Stainless Steel Architectural Platform
Draftshield Chamber Width 230mm Anti-static Internal Space
Overall Form Factor 470 × 310 × 330mm Total Spatial Dimensions
Operating Ambient Temp 18°C~23°C Regulated Thermal Zone
Operating Ambient Humidity 20%~80%RH Non-condensing Atmospheric Matrix
Power Module Configuration Input: 220VAC 50Hz, Output: 12V/2A Stable DC Link

Key Features & Advantages
  • Rear-Mounted Electromagnetic Restoration: High precision and premium resolution architecture providing ultra-responsive, rapid, and drift-free mass detection kinetics.
  • Vibration-Isolated Split Design: Intelligently decouples the extensible high-definition LED panel from the core weighing mechanism, completely eliminating keystroke kinetic interference.
  • All-Around Structural Glass Shield: Seamless transparent protection block ensuring robust sample integrity, designed for tool-less removal and efficient sanitization cycles.
  • Advanced Intelligent Auto-Calibration: Fully automated alignment tracking loop triggered instantly upon thermal fluctuations >1.5°C or every 2 hours to eliminate ambient errors.
  • Multi-Mode Unit Transformation: Comprehensive onboard software supporting g, ct, oz, lb calculations paired with micro-addition scaling optimized for powder or liquid processing.
  • Bidirectional Data Synchronicity: Equipped with industrial RS232 communication interfaces for seamless integration with peripherals, PCs, and third-party LIMS environments.

APPLICATION SCOPE: High precision laboratory metrology, micro-powder tracking, fluid fraction control, and multi-unit scientific validation.
PACKAGING: Industrial shockproof high-density foam framing with isolated glass panels and customized power modular blocks.
IMPORTANT NOTICE: To secure uncompromised 0.1mg/0.01mg metrology performance, power up and allow the system to calibrate internally within the 18°C~23°C thermal zone for 30~60 minutes before verification.
TAILORED METROLOGY FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
