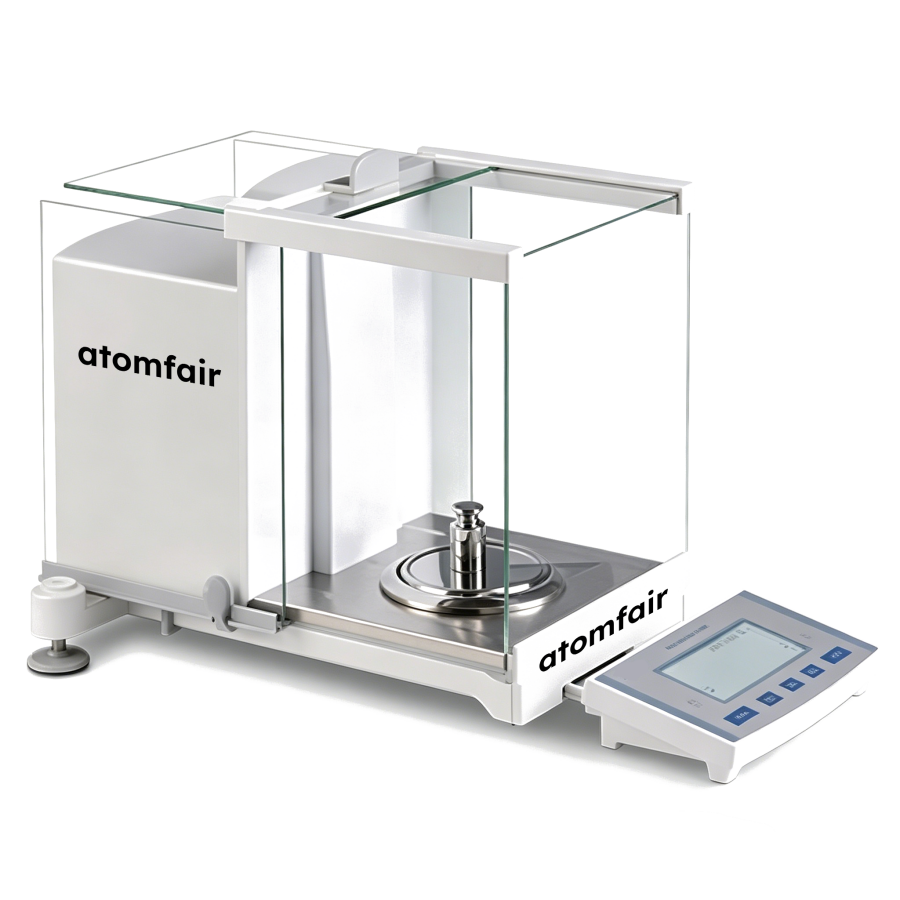

ATOMFAIR® ES-E120B electronic analytical balance with glass draft shield and auto calibration.

ATOMFAIR ES-E120B 120g 0.1mg Electronic Analytical Balance With Auto Calibration For Pharmaceutical Laboratory Precision Weighing

$824.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® ES-E120B ELECTRONIC ANALYTICAL BALANCE ES-E120B CORE SPECIFICATION PLATFORM Product Overview The Atomfair® ES-E120B Electronic Analytical Balance represents an advanced high-precision laboratory balancing platform integrated with high-sensitivity electromagnetic force compensation core sensors. Engineered with an optimized volumetric footprint and enhanced spatial air shielding, this analytical instrument satisfies demanding laboratory operations requiring fine mass determination down to 0.1 mg, delivering rapid baseline kinetic response stabilization within 2.5 seconds under rigorous scientific testing criteria. ES-E120B Target Model Specification Matrix PARAMETER ITEM DETAILED MEASUREMENT PROFILE 1. Calibration & Metrology Parameters Product Classification Electronic Analytical Balance Readability Division Value (d) 0.1 mg Maximum Scale…

Category: ,

Description

ATOMFAIR® ES-E120B ELECTRONIC ANALYTICAL BALANCE

ES-E120B CORE SPECIFICATION PLATFORM

Product Overview
The Atomfair® ES-E120B Electronic Analytical Balance represents an advanced high-precision laboratory balancing platform integrated with high-sensitivity electromagnetic force compensation core sensors. Engineered with an optimized volumetric footprint and enhanced spatial air shielding, this analytical instrument satisfies demanding laboratory operations requiring fine mass determination down to 0.1 mg, delivering rapid baseline kinetic response stabilization within 2.5 seconds under rigorous scientific testing criteria.

ES-E120B Target Model Specification Matrix
PARAMETER ITEM DETAILED MEASUREMENT PROFILE
1. Calibration & Metrology Parameters
Product Classification Electronic Analytical Balance
Readability Division Value (d) 0.1 mg
Maximum Scale Capacity (Max) 120 g
Repeatability Deviation Error ±0.1 mg
Linearity Deviation Error ±0.2 mg
Average Stabilization Response Time ≤ 2.5 Seconds
Mandatory Preheating Threshold 30 ~ 60 Minutes Following Power-on Initialization
2. Geometric Metrics & Volumetric Footprint
Weighing Pan Dimensions Φ 80 mm
Outer Structural Dimensions 470 mm × 310 mm × 330 mm
Draft Shield Internal Width 230 mm
3. Environmental Constraints & Electrical Architecture
Operating Environmental Temperature 18°C ~ 23°C
Operating Workspace Humidity 20% ~ 80% RH
Power Subsystem Profiles Global Grid Matrix Interface | Input: 220V AC / 50Hz | Output: 12V DC / 2A

Semi-Micro Analytical Balances Portfolio Comparison Matrix (B Series)
SPECIFICATION ITEM ES1035B ES1055B ES1085B ES2035B ES2055B ES2085B ES1205B
Readability Value (d) 0.01 mg 0.01 mg 0.01 mg 0.01 mg 0.01 mg 0.01 mg 0.01 mg
Max Capacity Threshold (Max) 31/120g 51/120g 82/120g 31/210g 51/210g 82/210g 120g
Repeatability Deviation Error ±0.02 mg (Full Portfolio Standardized)
Linearity Deviation Error ±0.02 mg (Full Portfolio Standardized)
Typical Calibration Weight 10 g (External Reference Mass Threshold)
Stabilization Time (Average) ≤ 2.5 Seconds Dynamic Stabilization Response
Chassis Geometries & Sizes Pan Size: Φ 80 mm | Internal Draft Shield: 230 mm | Outer Body Structure: 470 × 310 × 330 mm
Operational Constraints Ambient Thermal Range: 18°C ~ 23°C | Workspace Moisture Matrix: 20% ~ 80% RH
Power Subsystem Architecture Global Grid Compliance Interface | Input: 220V AC / 50Hz | Output: 12V DC / 2A

Electronic Analytical Balances Portfolio Comparison Matrix (ES-E Series)
SPECIFICATION ITEM ES-E120B ES-E210B ES-E220B ES-E120A ES-E210A ES-E220A ES-E320A
Readability Value (d) 0.1 mg 0.1 mg 0.1 mg 0.1 mg 0.1 mg 0.1 mg 0.1 mg
Max Capacity Threshold (Max) 120g 210g 220g 120g 210g 220g 320g
Repeatability Deviation Error ±0.1 mg (Full portfolio Standardized)
Linearity Deviation Error ±0.2 mg (Full portfolio Standardized)
Stabilization Time (Average) ≤ 2.5 Seconds Optimized Processing Kinetics
Chassis Geometries & Sizes Pan Size: Φ 80 mm | Internal Draft Shield: 230 mm | Outer Body Structure: 470 × 310 × 330 mm
Operational Constraints Ambient Thermal Range: 18°C ~ 23°C | Workspace Moisture Matrix: 20% ~ 80% RH
Power Subsystem Architecture Global Grid Compliance Interface | Input: 220V AC / 50Hz | Output: 12V DC / 2A

Full Series Core Functional Advantages
  • Classic Rear-Mounted Electromagnetic Force Sensor: Delivers exceptional sensitivity, ultra-high resolution kinetics, and stable execution response times under rigorous data verification procedures.
  • Detachable Displaying Control Architecture (Split-Body Design): Isolates mechanical hand operation micro-vibrations from the foundational weighing block while facilitating multi-angle optical line-of-sight checks.
  • Extendable Angled LED Display Panel: Provides crystal-clear, high-brightness data visibility paired with an optimized UI layout to minimize user reading errors.
  • Panoramic Transparent Glass Draft Shield: Yields all-around tracking visibility of analytical specimens while utilizing advanced structural components for swift disassembly, cleaning, and decontamination.
  • Versatile Operational Weighing Modes: Supports robust native processing for standard weight measurement, trace percentage determination, and granular item piece counting.
  • Instantaneous Multi-Unit Conversions: Seamlessly transfers readouts between global scientific units including grams (g), carats (ct), ounces (oz), and pounds (lb) with zero manual math overhead.
  • Optimized Trace Micro-Addition Processing: Advanced micro-sampling digital filtering technology stabilizes data readouts against ambient drift, perfectly capturing minute powder or fluid specimen additions.
  • Integrated Bidirectional RS232 Communication Bus: Establishes standard hardware pipelines to micro-printers, lab host computer terminals, and third-party LIMS management systems.
  • Autonomous Fully Automatic Calibration Subsystem: Instantly triggers system recalibration if local temperature variations swing >1.5°C or if time elapsed exceeds 2 hours, drastically mitigating environmental error overhead.

APPLICATION SCOPE: Premium laboratory analytical target validation, analytical chemistry powder sampling, external calibration compliance workflows, and multi-series portfolio verification pipelines.
HIGH-EFFICIENCY HARNESS: Cost-effective design architectures highly optimized for analytical research institutes and institutional compliance laboratories.
IMPORTANT NOTICE: To preserve uncompromised operational resolution linearity, allow an initial warm-up threshold of 30-60 minutes following power engagement before performing operational zeroing, external calibration mass loading, or trace specimen additions.
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
