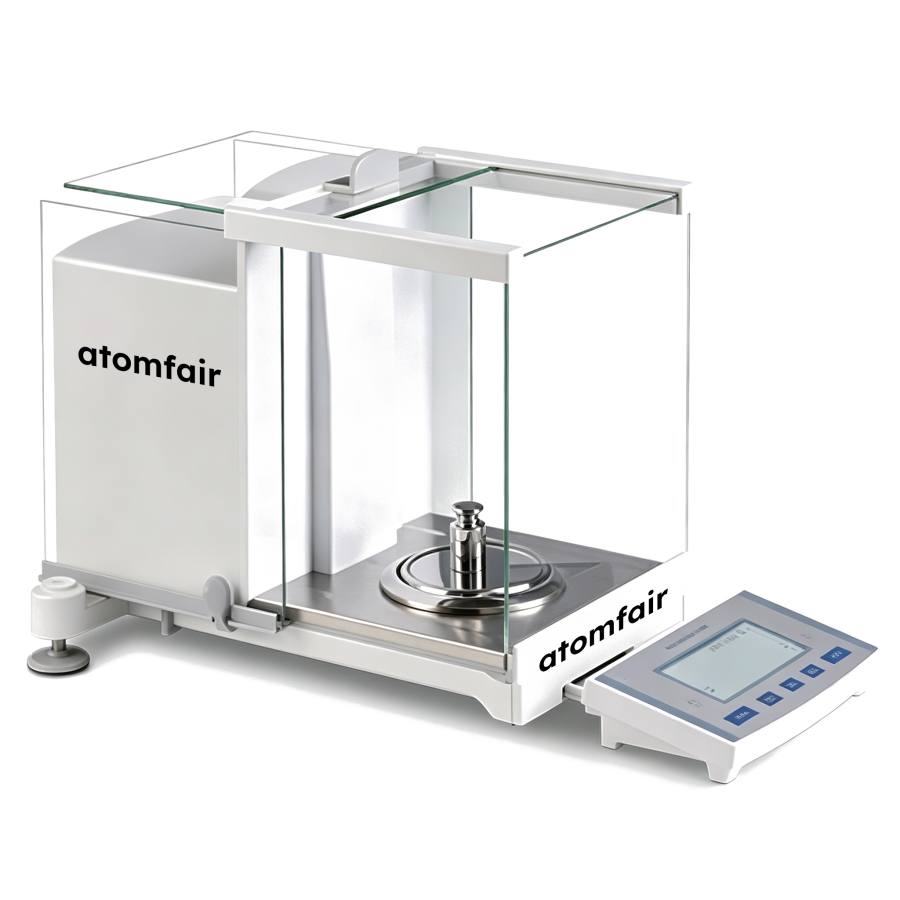

ATOMFAIR® ES-E120A electronic analytical balance with glass draft shield and automatic temperature calibration.

ATOMFAIR ES-E120A 120g 0.1mg Electronic Analytical Balance With Automatic Temperature Calibration

$956.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® ES-E120A ELECTRONIC ANALYTICAL BALANCE RESEARCH GRADE METROLOGY Product Overview The ATOMFAIR® ES-E120A sets the industry benchmark for laboratory cell-to-cell consistency and baseline testing control. Engineered with a classic rear-mounted electromagnetic force restoration sensor, this series eliminates measurement variables during rigorous sample processing. Its distinctive split-type architecture decouples the high-brightness LED display unit from the weighting block, mitigating operational kinetic vibrations to ensure pure validation platform benefits. Optimized for ultra-low mass powder and fluid tracking, it remains a premier infrastructure choice for premium analytical labs exploring high precision laboratory scale price options. ES-E120A Detailed Metrology Parameters PARAMETER ITEM TECHNICAL SPECIFICATION…

Category: ,

Description

ATOMFAIR® ES-E120A ELECTRONIC ANALYTICAL BALANCE

RESEARCH GRADE METROLOGY

Product Overview
The ATOMFAIR® ES-E120A sets the industry benchmark for laboratory cell-to-cell consistency and baseline testing control. Engineered with a classic rear-mounted electromagnetic force restoration sensor, this series eliminates measurement variables during rigorous sample processing. Its distinctive split-type architecture decouples the high-brightness LED display unit from the weighting block, mitigating operational kinetic vibrations to ensure pure validation platform benefits. Optimized for ultra-low mass powder and fluid tracking, it remains a premier infrastructure choice for premium analytical labs exploring high precision laboratory scale price options.

ES-E120A Detailed Metrology Parameters
PARAMETER ITEM TECHNICAL SPECIFICATION DETAILS
Product Model ES-E120A
Product Classification Electronic Analytical Balance
Readability (d) 0.1mg
Maximum Capacity (Max) 120g
Repeatability Error ±0.1mg
Linearity Error ±0.2mg
Average Stabilization Time ≤2.5s
Initial Warm-up Duration 30~60min
Weighing Pan Dimensions Φ80mm
Draftshield Internal Width 230mm
Overall Physical Dimensions 470 × 310 × 330mm
Operating Ambient Temp 18°C~23°C
Operating Ambient Humidity 20%~80%RH
Power Supply Specifications Input: 220VAC 50Hz, Output: 12V/2A

Semi-Micro Analytical Balance Comprehensive Matrix
MODEL / PARAMETER ES1035B ES1055B ES1085B ES2035B ES2055B ES2085B ES1205B
Readability (d) 0.01mg 0.01mg 0.01mg 0.01mg 0.01mg 0.01mg 0.01mg
Max Capacity (Max) 31/120g 51/120g 82/120g 31/210g 51/210g 82/210g 120g
Repeatability Error ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg
Linearity Error ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg ±0.02mg
Calibration Weight 10g 10g 10g 10g 10g 10g 10g
Stabilization Time ≤2.5s ≤2.5s ≤2.5s ≤2.5s ≤2.5s ≤2.5s ≤2.5s
Preheat Duration 30~60m 30~60m 30~60m 30~60m 30~60m 30~60m 30~60m
Pan Size / Draftshield Φ80mm Stainless Steel Pan / 230mm Internal Chamber Safety Width
Dimensions / Environment 470 × 310 × 330mm Form Factor / 18°C~23°C Thermal Zone / 20%~80%RH Matrix
Power Parameters Unified Architecture: 220VAC 50Hz Stable Input, 12V/2A Pure DC Output

Electronic Analytical Balance Comprehensive Matrix
MODEL / PARAMETER ES-E120B ES-E210B ES-E220B ES-E120A ES-E210A ES-E220A ES-E320A
Readability (d) 0.1mg Across Entire Configuration Family
Max Capacity (Max) 120g 210g 220g 120g 210g 220g 320g
Repeatability Error ±0.1mg Controlled Tolerance Threshold
Linearity Error ±0.2mg Linearity Correction Limit
Stabilization Time ≤2.5 seconds (Average Kinetic Interval)
Preheat Duration 30~60 minutes Baseline Core Setup
Hardware Form Factor Φ80mm Pan / 230mm Internal Chamber Width / 470 × 310 × 330mm Total Enclosure
Operating Conditions 18°C~23°C Regulated Temperature / 20%~80%RH / Input 220VAC, Output 12V/2A

Key Features & Advantages
  • Rear-Mounted Electromagnetic Restoration: High precision and premium resolution architecture providing ultra-responsive, rapid, and drift-free mass detection kinetics.
  • Vibration-Isolated Split Design: Intelligently decouples the extensible high-definition LED panel from the core weighing mechanism, completely eliminating keystroke kinetic interference.
  • All-Around Structural Glass Shield: Seamless transparent protection block ensuring robust sample integrity, designed for tool-less removal and efficient sanitization cycles.
  • Advanced Intelligent Auto-Calibration: Fully automated alignment tracking loop triggered instantly upon thermal fluctuations >1.5°C or every 2 hours to eliminate ambient errors.
  • Multi-Mode Unit Transformation: Comprehensive onboard software supporting g, ct, oz, lb calculations paired with micro-addition scaling optimized for powder or liquid processing.
  • Bidirectional Data Synchronicity: Equipped with industrial RS232 communication interfaces for seamless integration with peripherals, PCs, and third-party LIMS environments.

APPLICATION SCOPE: High precision laboratory metrology, micro-powder tracking, fluid fraction control, and multi-unit scientific validation.
PACKAGING: Industrial shockproof high-density foam framing with isolated glass panels and customized power modular blocks.
IMPORTANT NOTICE: To secure uncompromised 0.1mg/0.01mg metrology performance, power up and allow the system to calibrate internally within the 18°C~23°C thermal zone for 30~60 minutes before verification.
