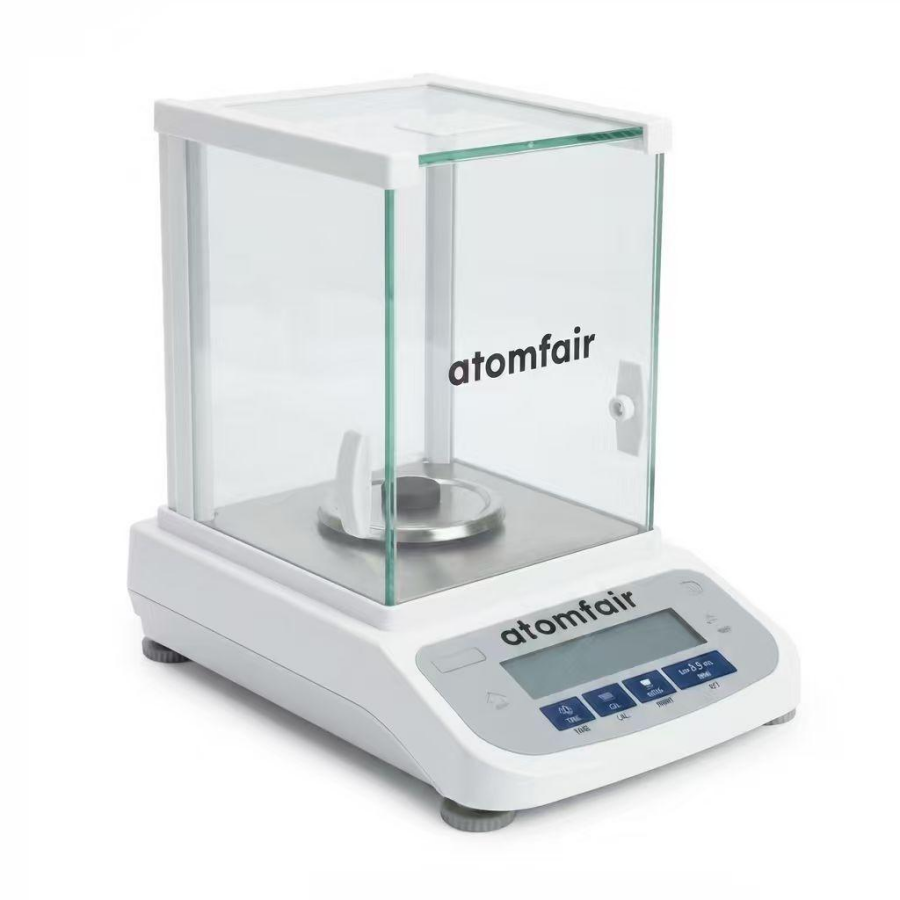

ATOMFAIR® EB220G-0.1MG-I-04 ELECTRONIC ANALYTICAL BALANCECLASS Ⅰ PRECISION METROLOGY
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED METROLOGY FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This precision analytical balance requires controlled temperature and humidity conditions to ensure Class I measurement accuracy. A mandatory warm-up period of 30 to 60 minutes is necessary before achieving stable performance.
- Temperature Constraint: Operating ambient temperature must be maintained within the range of 18 to 23 degrees Celsius.
- Humidity Constraint: Relative humidity must be kept between 20% and 80% in a non-condensing environment to prevent internal condensation.
- Warm-Up Requirement: Allow the balance to preheat for 30 to 60 minutes after power-on to reach thermal equilibrium.
- Data Communication Setup: Select the appropriate RS232 baud rate from 300, 600, 1200, 2400, 4800, or 9600 when connecting to peripherals.
How does the 30-60 minute warm-up requirement affect measurement throughput for the EB220G-0.1MG-I-04 balance, and is it possible to achieve Class I accuracy without a full warm-up?
The EB220G-0.1MG-I-04 requires an initial warm-up of 30–60 minutes to stabilize the electromagnetic force restoration sensor and thermal compensation algorithms, as stated in the specifications. Skipping or shortening this period compromises the ±0.2 mg repeatability and linearity performance required for Class I metrology. The product manual explicitly mandates preheating for 30–60 minutes in an 18–23°C regulated workspace to sustain ideal performance parameters.
What baud rate configurations are supported for integrating the EB220G-0.1MG-I-04 balance with a PC via the RS232 interface, and does the balance include a dedicated filter membrane weighing mode for trace sample measurements?
The EB220G-0.1MG-I-04 RS232 interface supports six selectable baud rates: 300, 600, 1200, 2400, 4800, and 9600, enabling flexible PC connectivity. The balance also incorporates a specialized filter membrane weighing mode with optimized internal electronic filtering parameters for ultra-precise mass detection of low-mass or trace membrane samples. These features are explicitly listed under communication specifications and key features.
What are the critical environmental and power infrastructure requirements for maintaining Class I accuracy on the EB220G-0.1MG-I-04 balance, and are there any precautions against condensation?
The EB220G-0.1MG-I-04 requires an operating temperature of 18–23°C and a non-condensing relative humidity of 20–80% RH, as specified in the technical parameters. The power supply must be 220V AC / 50Hz input with a 12V/2A output. The operational notice explicitly warns against fluid condensation in the weighing chamber during data capture loops, emphasizing that the atmospheric matrix must remain non-condensing to avoid performance degradation.
The ATOMFAIR EB220G-0.1MG-I-04 electronic analytical balance delivers 0.1 mg readability up to 220 g with advanced isoCAL internal calibration and filter membrane weighing mode, but requires a 30-60 minute warm-up and strict environmental control (18-23°C, 20-80% RH) for Class I accuracy.
Positive
- Fully automated internal calibration: The isoCAL system executes seamless calibration loops automatically, neutralizing environmental drift and ensuring reliable baseline tracing for low-mass samples.
- Filter membrane weighing mode: Specialized internal electronic filtering parameters optimize ultra-precise mass detection for low-mass or trace membrane samples, enhancing measurement accuracy in challenging applications.
Trade-offs
- Extended warm-up period required: To sustain Class I performance, the balance must be preheated for 30-60 minutes in a regulated 18-23°C environment before use, adding setup time.
- Stringent environmental operating conditions: The balance requires a stable temperature range of 18-23°C and non-condensing humidity of 20-80% RH; deviations may compromise accuracy and repeatability.
