1.3 Ah NCM811 Al/C Carbon Foil Dry Pouch Cell

1.3 Ah NCM811 Al/C Carbon Foil Dry Pouch Cell

$70.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy high nickel dry pouch cell price deals for ATOMFAIR 1.3 Ah NCM811 Al/C Carbon Foil Dry Pouch Cell. RoHS compliant. Contact inquiry@atomfair.com.

Quantity Price
1 – 4 $70.00
5 – 19 $119.95
20 – 49 $89.95
50+ $69.95
SKU: AAPO811GRCA2A0
Category:
Tags:
Brands:

Description

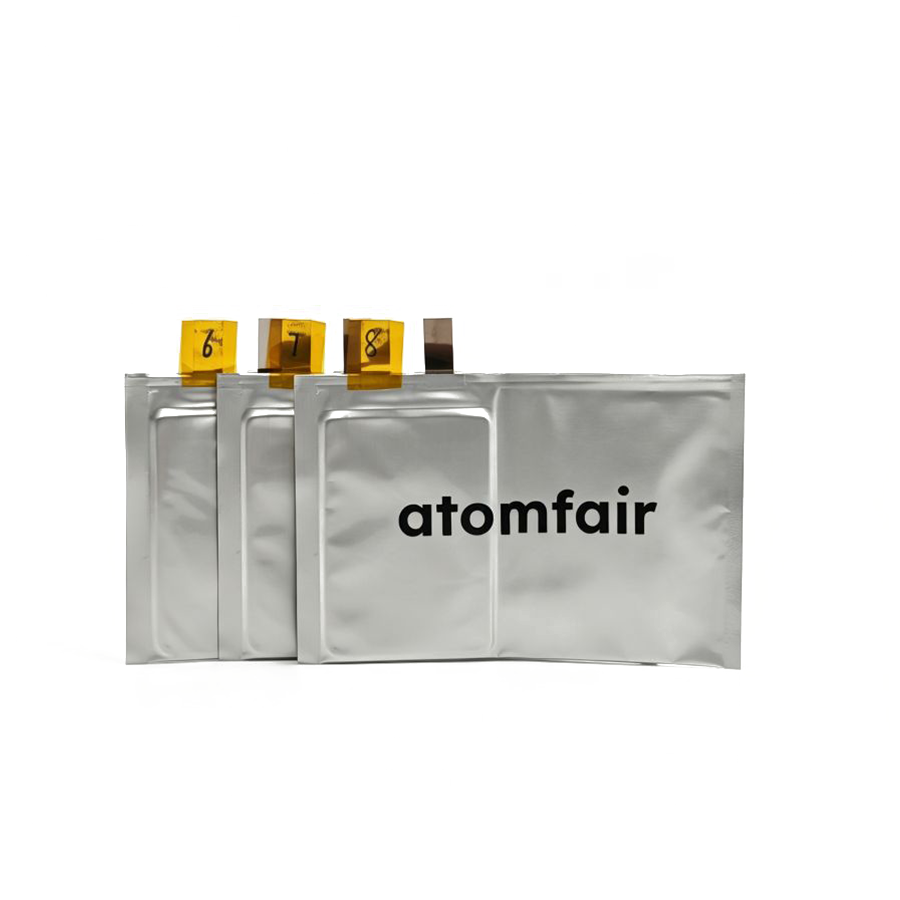

ATOMFAIR 1.3 Ah NCM811 Al/C Carbon Foil Dry Pouch Cell

RESEARCH GRADE CELL ARCHITECTURE

Product Overview
Engineered for advanced energy storage exploration, this premium un-functionalized ultra-high nickel NCM811 dry pouch cell serves as a high-fidelity benchmarking matrix for state-of-the-art electrochemical validation. Assembled without liquid electrolyte infusion via a precise 5/6 laminated multi-layer stack layout, it uniquely pairs a high-capacity 198 mAh/g cathode with an advanced Al/C carbon-coated aluminum foil anode substrate framework. This low-impedance interface configuration establishes an absolute baseline to successfully drive variable elimination during critical custom electrolyte verification, high-voltage polarization modeling, interface layer degradation tracking, and gas evolution screening platforms. Secure optimal institutional high nickel dry pouch cell price points for scaled laboratory research.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Device Level Design
Design Capacity Configuration 1.3 Ah (Nominal baseline target after activation)
Target Voltage Operating Window 2.75 V – 4.2 V (High-Voltage Cycling Tracking)
Internal Lamination Stack Matrix 5 / 6 Coated Multilayer Electrodes Arrangement
Separator Film Metric 12 μm PE + 2 μm Al²O³ Ceramic Protective Coating Layer
2. Cathode (Positive Electrode) Parameters
Active Material Chemistry NCM 811 (Ultra-High Nickel Layered Matrix Crystals)
Cathode Active Mass Fraction 97.4%
Cathode Baseline Specific Capacity 198 mAh/g
Electrode Compaction Density 3.4 g/cc
Single-Side Coating Areal Density 24 mg/cm²
Positive Electrode Geometric Footprint 45.5 mm * 64 mm
3. Anode (Negative Electrode) Substrate Profile
Anode Collector Material Type Al/C (Premium Conductive Carbon Coated Aluminum Foil Layer)
Negative Electrode Geometric Footprint 46.5 mm * 65 mm
Manufacturing Rules Processed under strict RoHS compliant standard conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.


Key Features & Advantages
  • Advanced Al/C Carbon-Coated Anode Framework: Replaces standard bare collectors with premium carbon foil, radically driving down interfacial contact impedance while guaranteeing superior electrode adhesion profiles.
  • High Density Cathode Engineering: Achieves a competitive compaction density profile of 3.4 g/cc for the ultra-high nickel NCM811 core, optimizing localized area and mass loading variables.
  • Precision 5/6 Multilayer Lamination: Regulated stack setup delivers uncompromised format consistency, uniform electrode contact pressure, and clean internal alignment fields.

APPLICATION SCOPE: Novel liquid electrolyte solution testing, high-voltage active phase interface protection screening, carbonaceous foil coating evaluation, and high-nickel cell degradation parameter validation.
PACKAGING: Vacuum-sealed securely within premium multi-layer barrier laminate pouches to protect un-infused crystalline core lattices from ambient atmospheric contamination.
IMPORTANT NOTICE: High-nickel un-filled active cell assemblies display supreme chemical affinity to room ambient humidity. Keep all packaging completely sealed until execution. Vacuum thermal baking, final edge trimming, liquid electrolyte injection, and seal closure workflows must be processed strictly inside anhydrous inert-gas glovebox environments to suppress internal phase degradation or short-circuit failures.

Frequently Asked Technical Questions

Why is ATOMFAIR 1.3 Ah NCM811 Al/C Carbon-Coated Foil Dry Pouch Cell preferred for liquid electrolyte R&D?

The ATOMFAIR 1.3 Ah NCM811 Al/C Carbon-Coated Foil Dry Pouch Cell functions as a premier solution for advanced high-energy cell benchmarking. It delivers a highly controlled 1.3 Ah un-functionalized platform integrating an ultra-high nickel NCM811 cathode with a specialized Al/C carbon-coated aluminum foil anode framework, significantly boosting performance metrics and phase purity during laboratory testing workflows.

How to prevent nickel rich dry cell moisture contamination?

To successfully solve how to prevent nickel rich dry cell moisture contamination without secondary contamination, this material must be handled strictly according to inert gas glovebox storage protocols before thermal processing.

What operational stability advantages does the Al/C carbon-coated aluminum foil anode configuration provide?

Compared to standard bare metal alternatives, the optimized matrix of this product incorporates an advanced Al/C carbon-coated substrate framework. This unique design dramatically lowers interfacial contact resistance and prevents electrode peeling under high-voltage platforms up to 4.2V, establishing a highly uniform current density background field to precisely evaluate active material kinetics.

What electrochemical testing benefits do the baseline metrics of this NCM811 configuration offer?

Boasting engineered particle structuring (Cathode: 198 mAh/g | Compaction Density: 3.4 g/cc) and optimized packaging properties, this product offers superior sinterability. The controlled form factor facilitates lower thermal processing thresholds and promotes ideal grain boundary integration during cell fabrication.

How is the phase purity and quality control of this research-grade batch validated?

Every competitive batch undergoes rigid analytical quality validation testing. Total elemental and metallic impurities are strictly regulated below strict industry thresholds to eliminate parasitic electronic leakage and maintain uncompromised data reproducibility.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Quality Standards & Performance Verification

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Shipping & Returns

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window for completely unopened items).

Additional information

Weight 0.3 kg
Dimensions 23 × 15 × 3 cm
