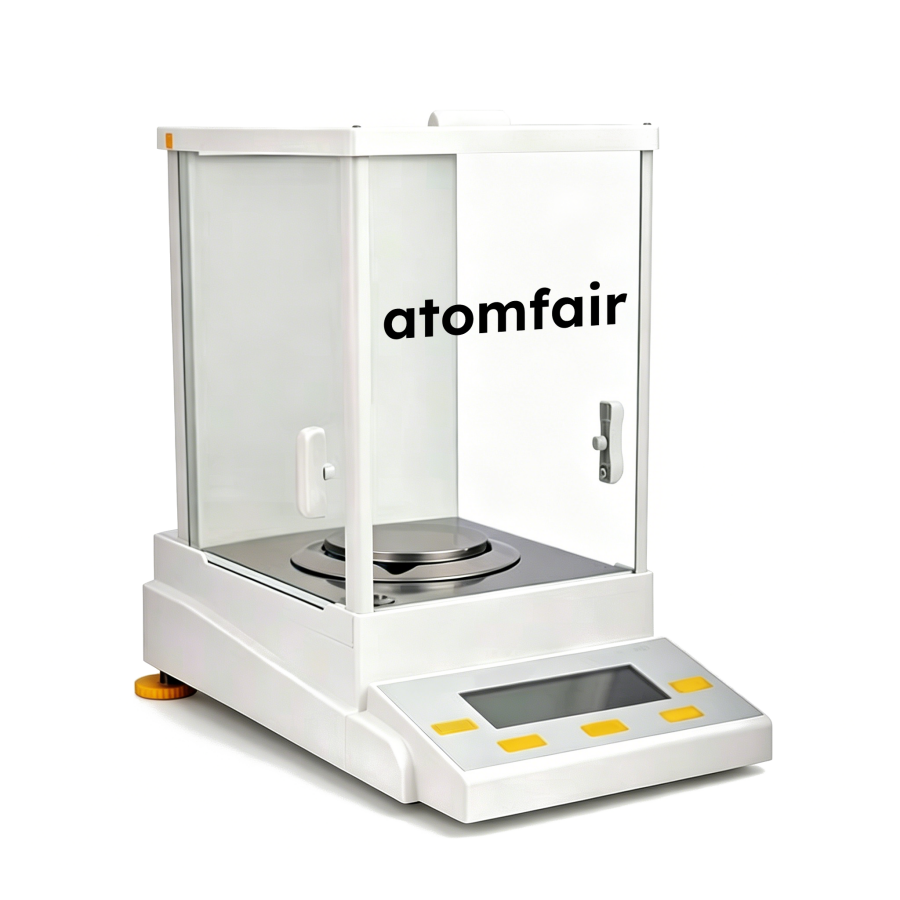

ATOMFAIR® EB320G-1MGTOUCHSCREEN ELECTRONIC ANALYTICAL BALANCERESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This analytical balance is highly sensitive to micro-gravitational drift and requires an isolated, vibration-free environment for accurate operation. External calibration must be performed in a controlled setting before use, and transit glass locks must be disengaged prior to initiation.
- Environmental Sensitivity: The balance's heavy-duty aluminum chassis dampens low-frequency vibration, but additional isolation from ambient disturbances is recommended to maintain measurement integrity.
- Calibration Requirement: External calibration is mandatory and must be executed within an isolated environment to compensate for drift and ensure specification compliance.
- Transit Safety Lock Disengagement: The integrated glass-door transit shock locks must be completely disengaged before the balance is powered on to prevent mechanical stress and measurement errors.
What are the precision trade-offs when using the EB320G-1MG balance for micro-gravimetric analysis given its 1 mg readability instead of 0.1 mg?
The EB320G-1MG provides a maximum capacity of 320 g with a readability of 1 mg, repeatability ±1 mg, and linearity ±2 mg. While this is sufficient for many analytical weight verifications, it is less precise than the 0.1 mg readability models (EB120G-0.1MG series) which have lower capacity. This balance is designed for applications where higher capacity is needed over sub-milligram precision, as per the product overview's mention of "high-precision micro-gravimetric operations" which may be interpreted as relative to typical lab balances, not ultra-microbalances.
Can the EB320G-1MG balance be integrated with existing laboratory information management systems (LIMS) via its RS232 port?
Yes, the EB320G-1MG is equipped with a standard RS232 digital output port for bi-directional data transfer to PCs and printers, as stated in the integrated application software features. This allows direct connection to most LIMS or data acquisition systems that support RS232 serial communication.
What environmental conditions are required for accurate operation of the EB320G-1MG balance, and how should it be handled after transit?
The EB320G-1MG is highly sensitive to micro-gravitational drift. It must be calibrated within an isolated environment to maintain uncompromised performance. The transit glass locks must be completely disengaged before initiation. The heavy-duty aluminum base is designed to dampen environmental low-frequency vibration, promoting validation integrity. The balance is packaged with glass-door protection travel locks that should be disengaged prior to use.
The ATOMFAIR EB320G-1MG touchscreen analytical balance offers 320 g capacity at 1 mg readability with a heavy-duty aluminum chassis and anti-fatigue TFT display, but requires external calibration and careful environmental isolation to maintain accuracy.
Positive
- Heavy-duty aluminum base and anti-fatigue UI: The full aluminum architectural chassis dampens low-frequency vibration, while the dual Metro anti-fatigue touch interface reduces eye strain during extended verification campaigns.
- Integrated metrology software and RS232 output: Factory preloaded with specialized metrology workflows and a standard RS232 digital port enable bi-directional data transfer to PCs and printers for streamlined data management.
Trade-offs
- Requires external calibration weights: This model uses an external calibration architecture, meaning users must supply and handle certified calibration masses to maintain measurement accuracy.
- Sensitive to micro-gravitational drift and environment: The system is highly sensitive to micro-gravitational drift; transit glass locks must be disengaged before use, and calibration must be performed in an isolated, stable environment to preserve performance.
