ATOMFAIR® EB31G-01MG-R-01 ANALYTICAL & SEMI-MICRO BALANCEEB31G-01MG-R-01 CORE SPECIFICATION PLATFORM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This balance requires strict adherence to environmental and operational constraints to maintain its specified accuracy. Key limitations include a mandatory warm-up period, controlled temperature and humidity ranges, and automated calibration triggers.
- Warm-up Requirement: Allow a mandatory initial warm-up period of 30 to 60 minutes following power-on before performing zeroing, calibration, or sample addition.
- Environmental Stability: Operate the balance within an ambient temperature range of 10°C to 33°C and relative humidity of 20% to 80% to ensure measurement accuracy.
- Automated Calibration Trigger: The internal isbl calibration system automatically executes calibration if the ambient temperature fluctuates by ≥1.5°C or if the elapsed time exceeds 2 hours.
- Power Supply Requirements: Connect the balance to a stable 220V AC / 50Hz mains supply via the provided adapter to avoid power-related errors.
- Draft Shield Use: Keep the transparent glass draft shield closed during measurements to prevent air currents from affecting the reading.
Initialize the balance by allowing it to warm up and then performing zeroing and calibration. Follow these steps for accurate mass measurement and data transfer.
Required Equipment: Internal calibration system (isbl), RS232 data cable
- Power On and Warm-Up
Power on the balance and allow it to warm up for 30 to 60 minutes to stabilize the sensor. - Perform Zeroing
Press the tare key to zero the balance before placing any sample. - Execute Calibration
Initiate internal calibration either automatically via the isbl system or manually by pressing the calibration key. - Load Sample
Place the sample gently on the weighing pan using the draft shield doors to minimize disturbance. - Record Measurement
Read the stable mass value from the adjustable LED display panel after the stabilization indicator appears. - Data Transfer (Optional)
Connect the RS232 cable to a printer or computer to log the measurement data automatically.
What is the trade-off between the two readability ranges (0.01 mg and 0.1 mg) on the EB31G-01MG-R-01 balance?
The EB31G-01MG-R-01 offers an automated dual-range system: 0.01 mg readability up to 31 g and 0.1 mg readability up to 120 g. This allows high precision for small samples while retaining capacity for heavier masses, but the repeatability and linearity are ±0.02 mg in the fine range versus ±0.1 mg in the coarse range, so users must select the appropriate range based on desired accuracy for the sample mass.
Can the EB31G-01MG-R-01 balance be integrated with external data systems for GLP compliance?
Yes, the balance features an integrated RS232 communication bus that supports bidirectional data pipelines to micro-printers and host computers. This enables automated data logging and paperless compliance tracking, allowing seamless integration into laboratory information management systems for GLP/GMP workflows.
What are the environmental and warm-up requirements for the EB31G-01MG-R-01 balance to ensure accurate measurements?
The balance requires a controlled environment: operating temperature 10°C to 33°C and humidity 20% to 80% RH. A mandatory warm-up period of 30 to 60 minutes after power-on is required before zeroing, calibration, or sample addition. The internal automated calibration triggers when ambient temperature fluctuates by ≥1.5°C or every 2 hours, ensuring long-term stability.

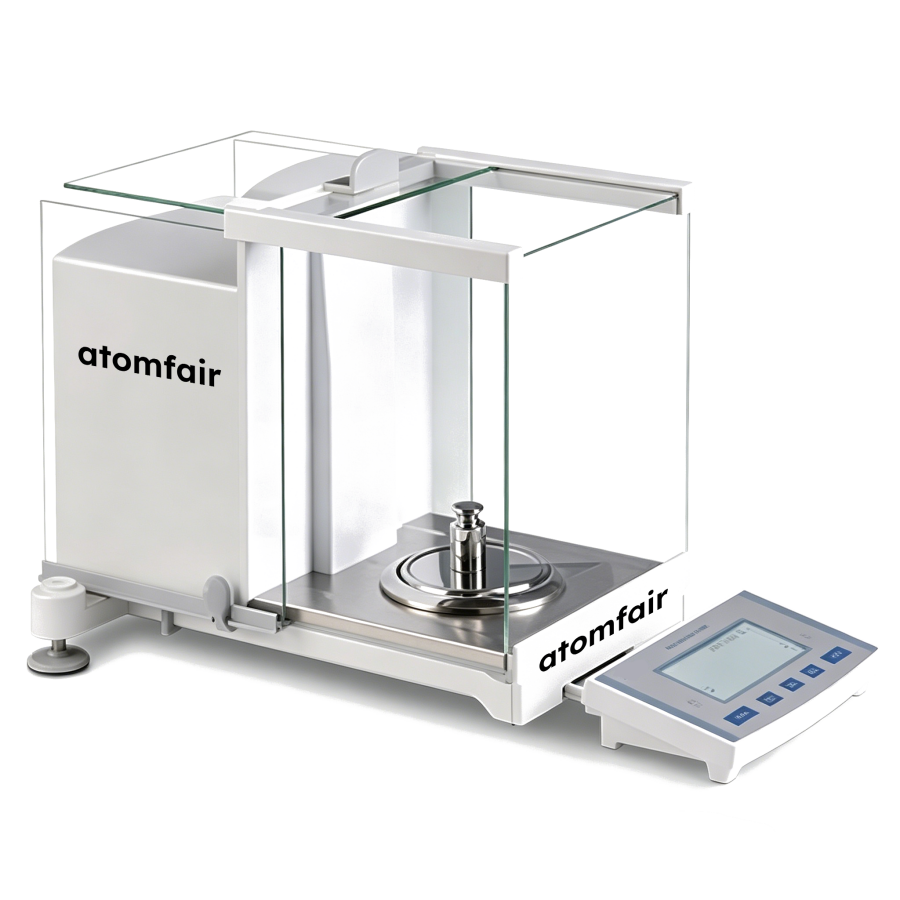

The Atomfair EB31G-01MG-R-01 analytical balance delivers dual-range readability (0.01 mg / 0.1 mg) with 31 g / 120 g capacity, incorporating internal automated isbl calibration triggered by temperature or time, and a split-body architecture that isolates operator-induced vibrations for stable, precise measurements.
Positive
- Split-body vibration isolation: The detached control display unit decouples hand-induced micro-vibrations from the balance baseline chassis, enabling stable readings even during live data inspection from flexible angles.
- Automatic internal isbl calibration: Fully autonomous calibration executes when ambient temperature shifts by ≥1.5°C or after 2 hours elapsed, maintaining linearity without manual intervention; a manual override is also available.
Trade-offs
- Mandatory 30-60 minute warm-up: The balance requires a 30 to 60 minute preheating period after power-on before zeroing, calibration, or sample addition to ensure sensor linearity and reading precision.
- Controlled environmental requirements: Optimal operation is confined to 10°C–33°C and 20%–80% RH; deviations outside this narrow range can degrade repeatability and stability, demanding climate-controlled lab infrastructure.
