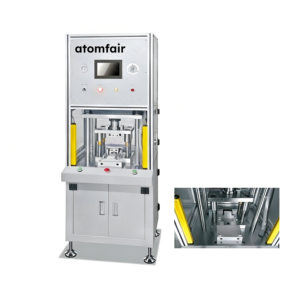

ATOMFAIR® PTM-518 PRECISION TAB PUNCHING & TRIMMING MACHINE

RESEARCH GRADE MATERIAL

Product Overview

The Atomfair-PTM-518 is a heavy-duty precision fabrication platform engineered specifically for the precision punching and flat trimming of electrode tabs for prismatic batteries and advanced supercapacitor cells. This system features adjustable multi-position cutting alignments and tight mechanical clearance tracking, delivering clean edges with minimal burrs to ensure the absolute structural safety and validation consistency of energy storage matrix joints. It serves as an immutable baseline testing control, completely optimizing operational throughput for high-end battery research institutions.

Technical Specifications

PARAMETER	DETAILS
1. Core Device & Mechanical Design
Product Model / Version	Atomfair-PTM-518 / V2.0
Application Scope	Prismatic batteries and supercapacitors (fully customizable on request)
Punching Hole Dimension	6 mm (Tolerance bound: +0.05 mm, customizable sizing available)
Punch-to-Trim Distance	6–10 mm (Fully adjustable tracking range)
Tooling Alignment	Punching and cutting positions are fully independent and adjustable
2. Power & Capacity Profile
Production Capacity	≥3 pcs/min
Total Power Consumption	500W
Power Supply Grid	Single-phase 220V / 50Hz
Pneumatic Air Supply Feed	0.5–0.7 MPa
3. Physical & Weight Metrics
System Dimensions	L650 × W500 × H1600 mm
Total Net Weight	800 kg
Manufacturing Rules	Processed under strict ISO 9001 compliance conditions
Alternative Options	Explore our related catalog or custom mechanical dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages

Zero-Clearance Tooling Guidance: Outfitted with high-precision guide pillars and heavy-duty guide sleeves that lock a zero-clearance tolerance window between upper and lower cutters, maximizing matrix operational service life.
Premium High-Speed Steel Die: Upper and lower cutting blades and punches are fabricated from ultra-hard high-speed steel (HSS) with specialized sharp edge geometries for completely clean shearing operations.
Integrated Cell Positioning Tray: Built with an ergonomic product positioning tray to achieve simple, rapid, and flawless battery cell alignment during manual or pilot processing workflows.
Industrial PLC Control Network: Managed via a central programmable logic controller loop that delivers continuous, highly reliable operation and clean, user-friendly menu navigation.
Color LCD Graphical Interface: High-definition touch panel interface facilitates rapid monitoring of active mechanical parameters and highly intuitive system configuration adjustments.
Heavy Welded Frame Matrix: Heavy industrial frame built with high-quality steel sheets featuring ultra-firm welding seams and a durable, premium industrial paint finish.
Active Dual-Safe Barrier Protection: Features fast-response active safety light curtains combined with heavy-duty interlocking protective enclosure doors for complete operator security.

APPLICATION SCOPE: Prismatic battery cell tab shearing, precision supercapacitor hole punching, flat terminal trimming, and adjustable edge configuration profiling.

FACILITY REQUIREMENT: Heavy machinery laboratory installation area. System Net Weight: 800 kg. Please verify that facility flooring systems can support heavy-duty localized compression loading tolerances before unboxing.

IMPORTANT NOTICE: This heavy shearing machinery deploying ultra-sharp high-speed steel cutters performs actions under immense downforces. Always confirm that facility pneumatic feed lines provide a stable 0.5–0.7 MPa pressure feed and that safety light curtain arrays are entirely unblocked before executing parameter offsets.
