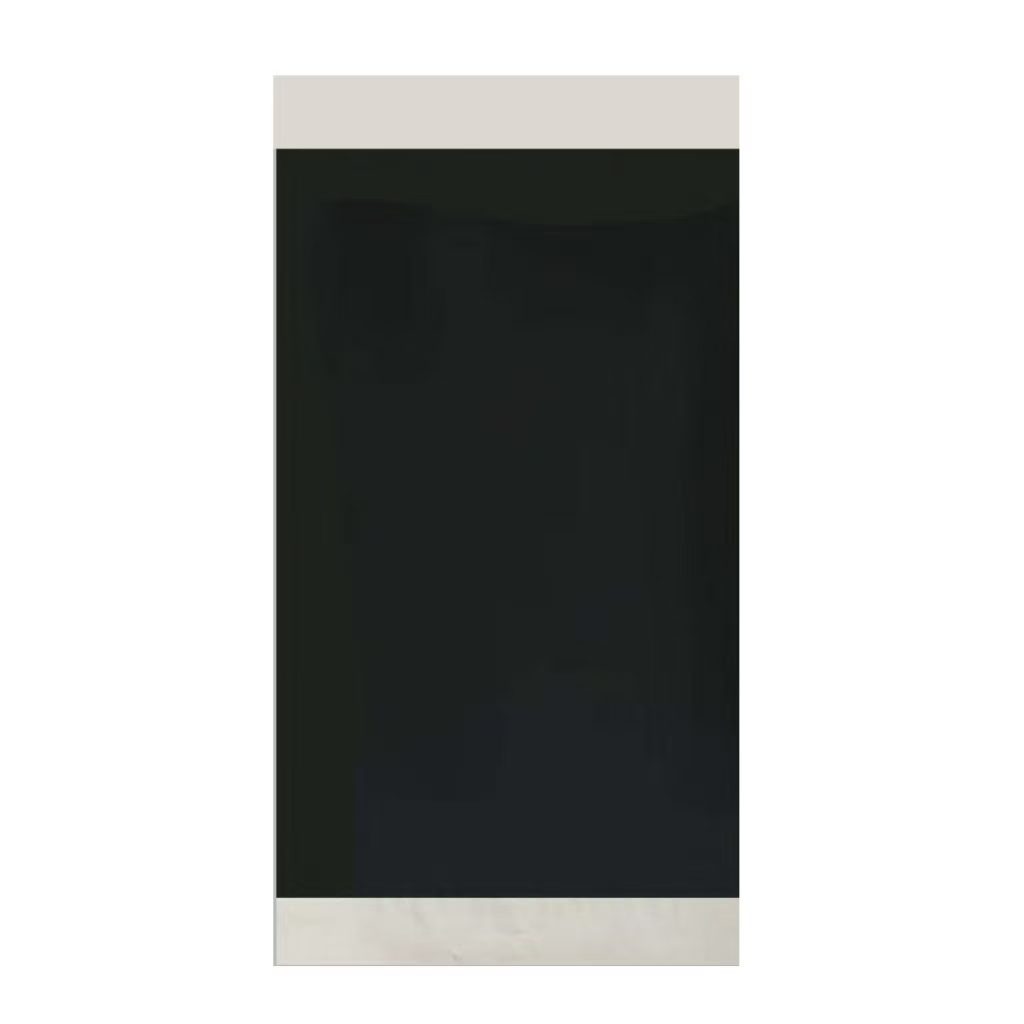

Wet process double-sided NFM111 sodium nickel iron manganese oxide cathode electrode sheet 30 mg/cm² D06 by Atomfair for Na-ion batteries.

ATOMFAIR® NFM111-D06 Sodium Nickel Iron Manganese Oxide Na-ion Battery Cathode Electrode Sheet, Double Side Coating, 30 mg/cm², Wet Process, 5 Sheets

$75.00

NFM111-D06, Atomfair Double-Sided Sodium Nickel Iron Manganese Oxide (NFM111) Cathode Sheet on Carbon-Coated Aluminum Foil , 30 mg/cm2 areal density.

Category:
Tags: , ,
Brands:

Description

Atomfair NFM111-D06 Sodium Nickel Iron Manganese Oxide (NFM111) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair NFM111-D06 is a high-precision Sodium Nickel Iron Manganese Oxide electrode sheet, double-side coated with a density of 30 mg/cm² via an optimized wet process. Engineered for next-generation sodium-ion battery R&D, this material delivers a high specific capacity of 142 mAh/g. It is designed to ensure exceptional batch consistency for laboratory testing, material evaluation, and rigorous electrochemical performance analysis.

Technical Specifications
PARAMETER DETAILS
Product Code D06
Coating Material NFM111
Active Material Ratio 95.30%
Coating Density 30 mg/cm²
Coating Area 150 * 110 mm
Coating Type Double-sided
Substrate Material Carbon-coated aluminum foil
Current Collector Areal Density 3.63 mg/cm²
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 184 * 110 mm
Compaction Density 2.99 g/cm³
Specific Capacity 142 mAh/g
Coating Process Wet Process

Key Features & Advantages
  • High-Performance Cathode: NFM111 active material provides a superior capacity of 142 mAh/g for advanced sodium-ion studies.
  • Enhanced Conductivity: Carbon-coated substrate ensures low interfacial resistance and improved cycling stability.
  • Double-Sided Uniformity: Symmetric coating via a wet process ensures balanced ion transport and robust mechanical integrity.
  • Full Customization: Engineering support available for tailored coating thickness, width, and foil dimensions.

APPLICATION SCOPE: Sodium-ion battery R&D, electrochemical performance analysis, and material validation.
PACKAGING: 5 sheets per pack, vacuum-sealed to maintain research-grade quality.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard baking protocol: 12 hours under vacuum at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
