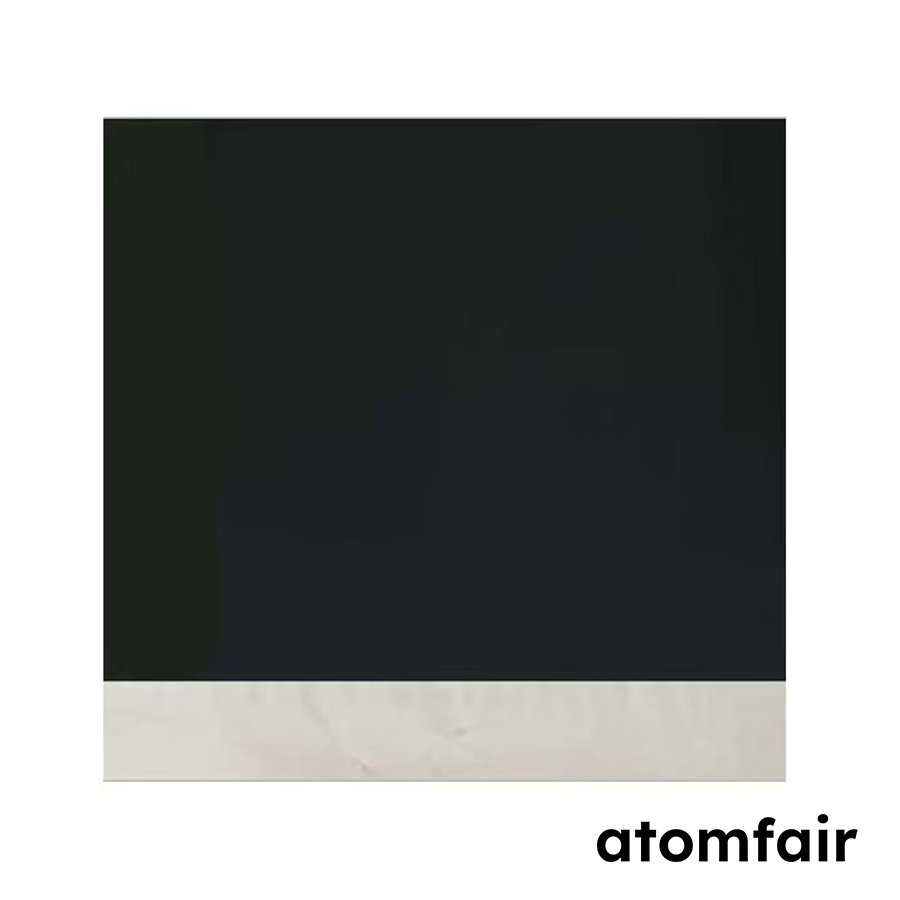

Dry process single-sided NCM811 cathode electrode sheet 30 mg/cm² S03 by Atomfair for advanced lithium-ion batteries.

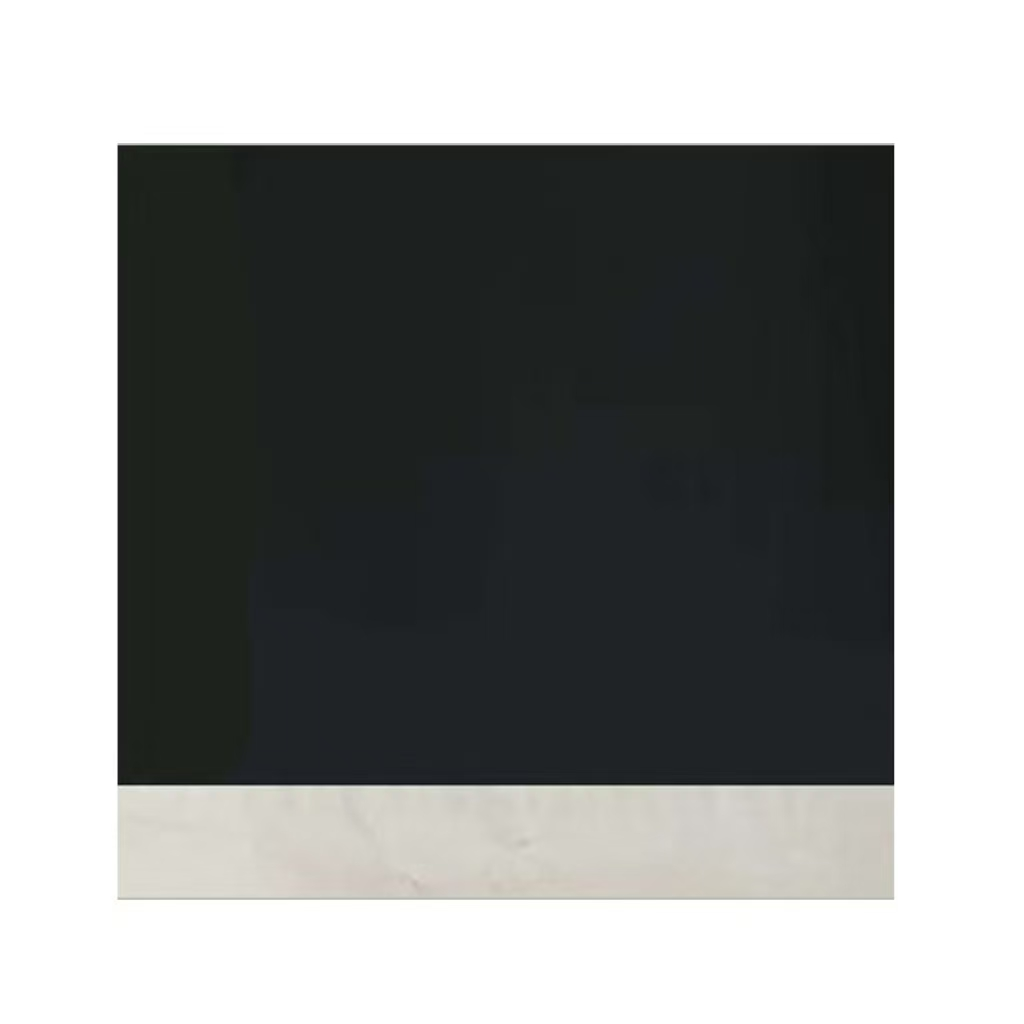

ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S03, Dry Process, 30 mg/cm², 5 Pack - Image 2
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S03, Dry Process, 30 mg/cm², 5 Pack - Image 3
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S03, Dry Process, 30 mg/cm², 5 Pack - Image 4

ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) – S03, Dry Process, 30 mg/cm², 5 Pack

$109.00

Atmofair NCM811-S03 lithium nickel cobalt manganese oxide Electrode Sheet, 30 mg/cm²,Single-sided dry coating with high compaction.

Quantity Discount (%) Price
1 – 4 — $109.00
5+ 9.17 % $99.00
Category:
Tags: , , , , , ,
Brands:

Description

Atomfair NCM811-S03 lithium nickel cobalt manganese oxide (NCM811) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
Atomfair NCM811-S03 is a premium lithium nickel cobalt manganese oxide (NCM811) electrode sheet, single-side coated with 30 mg/cm² via an advanced dry process. Highly optimized for Lithium-ion battery R&D, this pack contains 5 sheets to guarantee outstanding consistency for laboratory validation and raw material screening, serving as a dependable medium for accurate electrochemical performance evaluation.

Technical Specifications
PARAMETER DETAILS
Product code S03
Coating material NCM811
Active material ratio 96.00%
Coating density 30 mg/cm²
Coating area 120*90 mm
Coating Type Single-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 4.4 mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 140*90 mm
Compaction Density –
Capacity 200 mah/g
Coating Process Dry Process

Key Features & Advantages
  • High Active Phase Yield: Featuring a 96.00% active material chemistry layout for precise analytical accuracy.
  • Dry Process Excellence: Yields robust mechanical integrity and pristine film uniformity across the single-side coated structural landscape.
  • Carbon-Modified Interface: Carbon-coated aluminum current collector base limits degradation risks and cuts internal resistive boundaries.
  • Customization Architecture: Tailored alterations regarding coating depth/breadth or supporting substrate sizing can be processed upon inquiry.

APPLICATION SCOPE: Lithium-ion battery R&D, structural material validation, and systematic electrochemical performance analysis.
PACKAGING: Delivered in secure 5 sheets/pack arrays to enforce strict batch testing constants.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard preparation timeline targets 12 hours under vacuum baking at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
