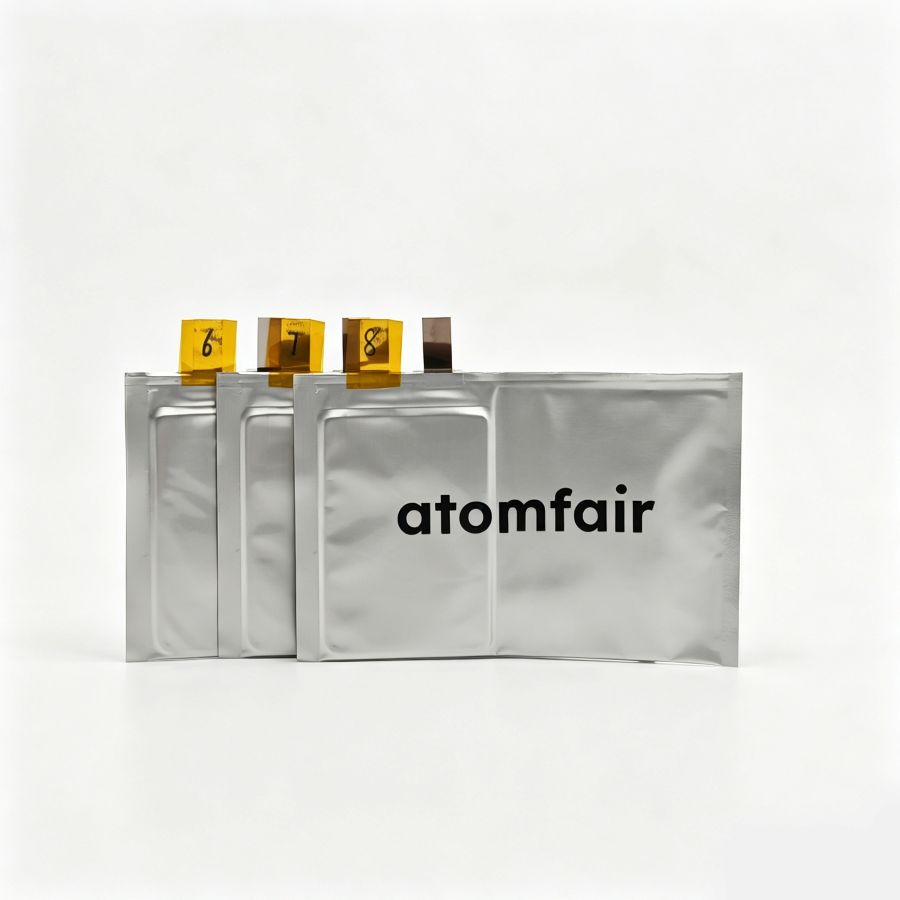

NCM811-Lithium Metal Dry Pouch Cell (1.0Ah | 10/11 Layers)
High-Capacity Research-Grade Dry Cell for Scalable Battery Performance Testing
Product Overview
This 10/11-layer NCM811-Li Metal dry pouch cell represents the high-capacity tier of our research series, offering a nominal capacity of 1.0 Ah. As a standardized “Dry Cell” platform, it allows researchers to validate custom electrolytes and advanced additives in a multi-layer stacked configuration that closely mimics commercial cell behavior. The integration of a ceramic-coated separator ensures high thermal stability for high-energy density investigations.
Technical Specifications
| Category | Property | Value |
|---|---|---|
| Cell | Capacity | 1.0 Ah |
| Voltage Range | 3V ~ 4.3 V | |
| NP Ratio | – | |
| Separator | 12 um PE + 2 um ceramic | |
| Cathode | Material Type | NCM 811 |
| Active Material Percent | 97.2% | |
| Specific Capacity (mAh/g) | 190 | |
| Compaction Density (g/cc) | 2.5 | |
| Coating Areal Density (mg/cm2) | 10 | |
| Dimensions (mm) | 45.5*64 | |
| Anode | Material Type | Li Cu |
| Thickness Parameter | 20+6+20 um | |
| Specific Capacity (mAh/g) | – | |
| Compaction Density (g/cc) | – | |
| Coating Areal Density (mg/cm2) | – | |
| Dimensions (mm) | 46.5*65 |
TAILORED SOLUTIONS FOR YOUR RESEARCH
Contact our engineering team for technical support, custom dimensions, or official quotations.
