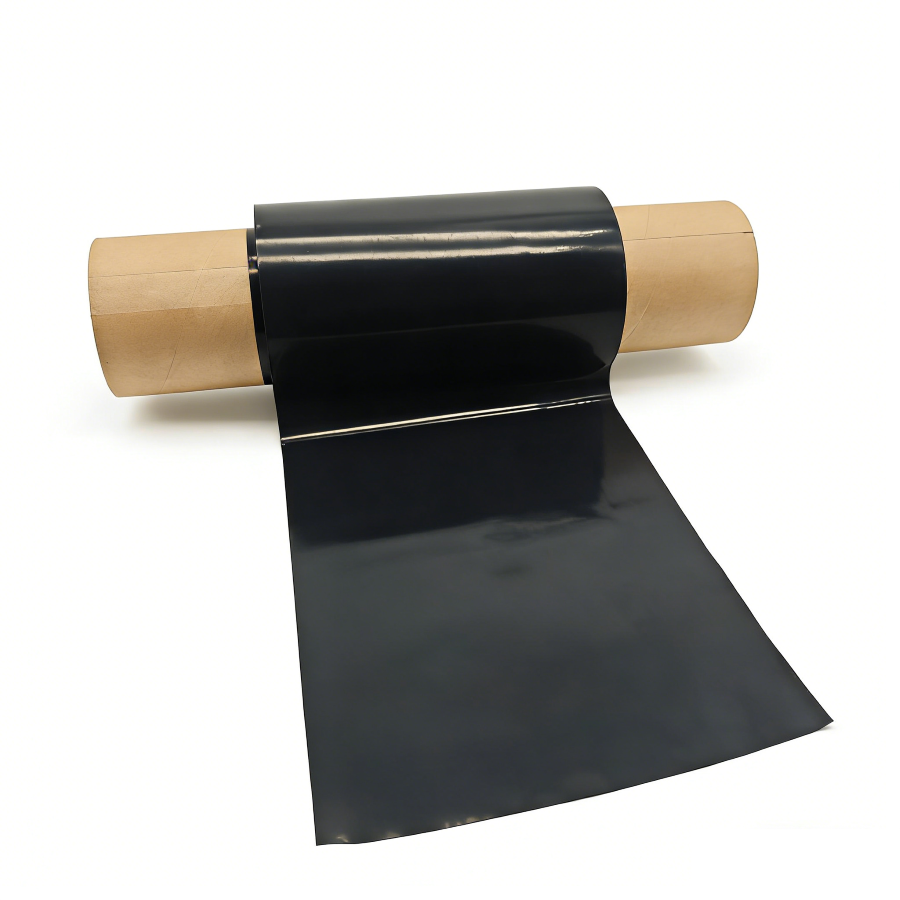

Custom Li-ion battery electrode roll set by Atomfair, including 25kg NMC/LFP cathode and 25kg graphite anode sheets for battery manufacturing.

Custom Li-ion Battery Electrode Roll Set: 25kg NMC/LFP Cathode & 25kg Graphite Anode Sheet for Battery Research & Manufacturing

$6,750.00

Custom Electrode Roll Set – 25 kg Cathode Roll + 25 kg Anode Roll RESEARCH GRADE MATERIAL Product Overview Our Custom Electrode Roll Set is designed for R&D labs and pilot-scale production of advanced battery cells. Each roll is precision-manufactured to your specifications, ensuring uniform coating, excellent adhesion and optimal conductivity. Technical Specifications PARAMETER SPECIFICATION […]

Category:
Tags:
Brands:

Description

Custom Electrode Roll Set – 25 kg Cathode Roll + 25 kg Anode Roll

RESEARCH GRADE MATERIAL

Product Overview
Our Custom Electrode Roll Set is designed for R&D labs and pilot-scale production of advanced battery cells. Each roll is precision-manufactured to your specifications, ensuring uniform coating, excellent adhesion and optimal conductivity.

Technical Specifications
PARAMETER SPECIFICATION
Roll Width 190 mm (other sizes available)
Coating Thickness 5 – 200 µm
Substrate Aluminum foil (cathode) / Cu foil (anode)
Maximum Roll Diameter 300 mm
Tension Control ± 0.5 N precision
Lead Time 3 – 4 weeks (after material confirmation)

Key Features & Advantages
  • Turnkey solution: One cathode roll + one anode roll, each including 25 kg of electrode material.
  • High uniformity coating: For superior electrochemical performance.
  • Adjustable coating thickness: 5–200 μm to meet diverse cell designs.
  • Compatible: Works with a wide range of active materials, binders and conductive additives.
  • Precision winding tension control: Prevents layer defects.
  • Flexible width configurations: Available in widths from 50 mm to 300 mm (custom widths on request).
  • Tailored formulations: Designed to precisely match your specific cell chemistry.
  • Industry-standard manufacturing: Coating equipment run under ISO-compliant conditions.
  • Full traceability: Complete documentation of raw materials and batch records with support from battery materials experts.

INCLUDED MATERIALS: 25 kg of custom‐formulated cathode slurry (e.g., NMC, LFP, LCO), 25 kg of custom‐formulated anode slurry (e.g., graphite, silicon‐graphite), choice of binder system (PVDF, CMC/SBR, aqueous binders), and conductive additives (carbon black, carbon nanotubes, graphene).
APPLICATION SCOPE: R&D laboratories, pilot-scale production of advanced battery cells, electrode formulation characterization, and custom cell chemistry engineering.
IMPORTANT NOTICE: Specifications are fixed upon structural validation. Finalize formulation configurations, choice of binder, and conductive additives during the material confirmation phase to lock in the 3–4 weeks manufacturing schedule.
TAILORED SOLUTIONS FOR PRODUCTION
Contact our engineering team for technical support, custom requirements, or official pilot-scale quotations.
EMAIL: support@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
