Atomfair Polyvinylidene Fluoride PVDF powder 5130 binder for lithium battery electrode coating 200g.

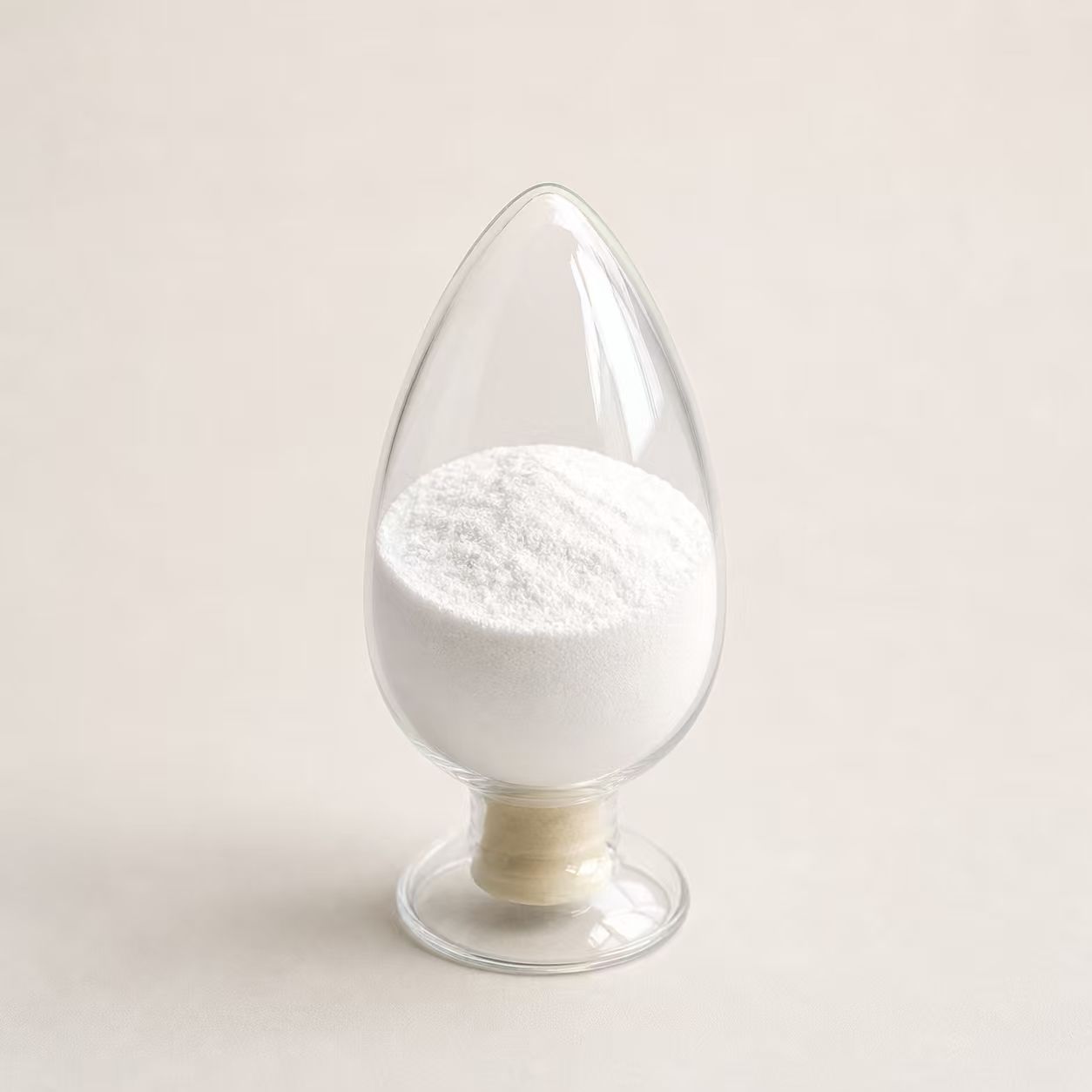

ATOMFAIR® Polyvinylidene Fluoride (PVDF) Powder 5130 – Lithium Battery Binder 200g

$159.00

5130 is a polyvinylidene fluoride (PVDF) powder binder specifically developed for the lithium battery field. With its excellent toughness and high viscosity characteristics, it serves as a core guarantee for the structural stability of battery electrodes.

Category:
Tags:
Brands:

Description

5130 PVDF Battery Binder

RESEARCH GRADE MATERIAL

Product Overview
As a battery additive and binder, 5130 PVDF exists in powder form and acts precisely in the electrode system. It can efficiently bond active materials, conductive agents, and current collectors, enhancing the bonding strength and cycling stability of the electrode layer. This facilitates breakthroughs in key performance metrics of lithium batteries such as energy density and cycle life, making it the preferred material for high-end lithium battery manufacturing.

Technical Specifications
CATEGORY PROPERTY RATED VALUE UNIT SYSTEM
Basic Information Property Good toughness, high viscosity –
Basic Information Application Battery additive, binder –
Basic Information Form Powder –
Physical Properties Specific Gravity 1.77 to 1.79 g/cm³
Mechanical Properties Tensile Strength – Yield 40 to 55 MPa
Mechanical Properties Tensile Strength – Break 34 to 43 MPa
Mechanical Properties Elongation at Break 50 to 250 %
Mechanical Properties Flexural Modulus 1360 to 2210 MPa
Mechanical Properties Flexural Strength 48 to 62 MPa
Mechanical Properties Compressive Strength 68 to 103 MPa
Hardness Shore Hardness (Shore D) 76 to 80 –
Thermal Properties Melting Peak Temperature 162 to 172 °C
Molding Analysis Melt Viscosity (230°C, 100 sec⁻¹) 4450 to 5450 Pa·s

Key Features & Advantages
  • High Viscosity Binder Matrix: Specifically engineered with ultra-high viscosity parameters to ensure absolute formulation stability.
  • Excellent Structural Toughness: Combines a balanced Shore D hardness (76 to 80) with a flexible elongation window stretching up to 250%.
  • Superior Interfacial Cohesion: Optimizes mechanical bonding pathways between targeted active material profiles, conductive elements, and foil current collectors.
  • Thermal Resilience Profile: Features a high crystalline melting peak boundary tracked precisely between 162°C to 172°C.

APPLICATION SCOPE: High-end lithium-ion battery manufacturing, advanced thick-electrode binder networks, and performance optimization matrices targeting critical energy density and cycle life thresholds.
PACKAGING & STORAGE: Secure research-grade powder containment sealed to protect pristine material rheology. Bulk processing parameters support uniform slurry dispersion under matching solvent systems.
IMPORTANT NOTICE: If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.


EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
