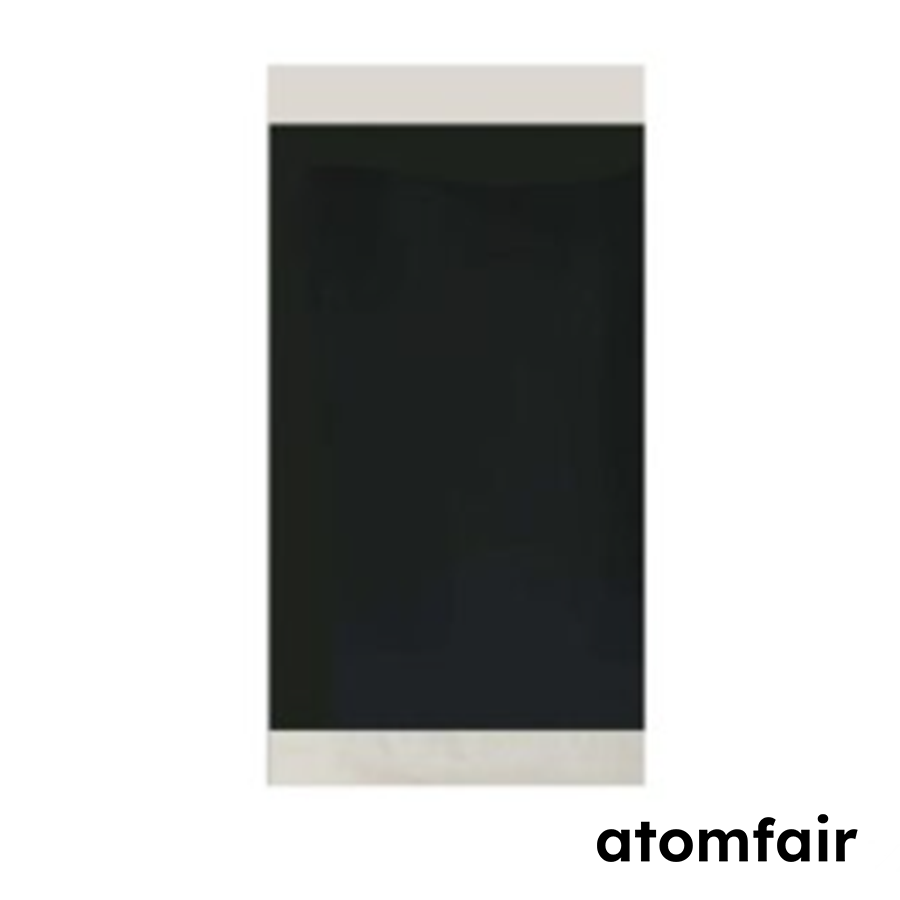

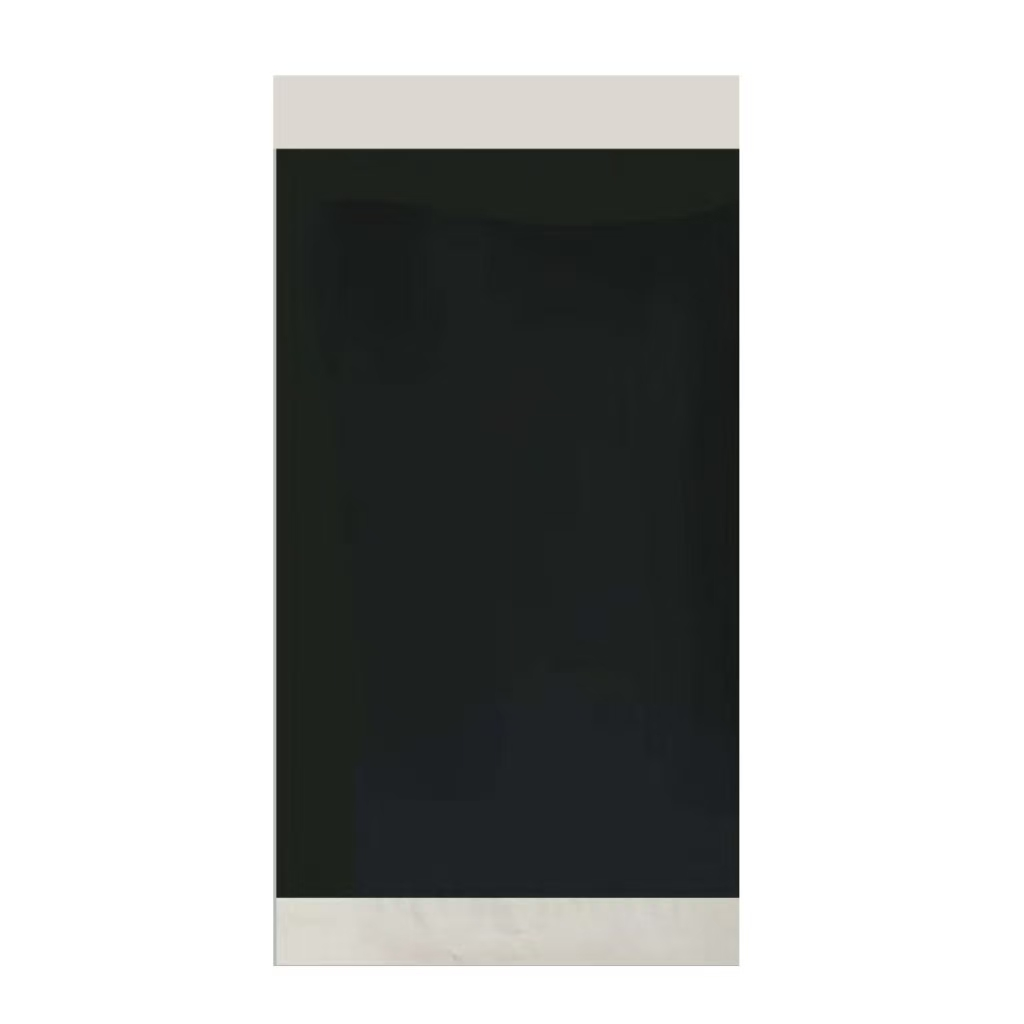

Wet process single-sided NCM811 cathode electrode sheet 24 mg/cm² S02 by Atomfair for lithium-ion battery.
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S02, 24 mg/cm², Wet Process, 5 Pack - Image 2
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S02, 24 mg/cm², Wet Process, 5 Pack - Image 3
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S02, 24 mg/cm², Wet Process, 5 Pack - Image 4

ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) – S02, 24 mg/cm², Wet Process, 5 Pack

$89.00

Atmofair NCM811-S02 lithium nickel cobalt manganese oxide Electrode Sheet, 24 mg/cm²,Single-sided wet coating with high compaction.

Quantity Discount (%) Price
1 – 4 — $89.00
5+ — $89.00
Category:
Tags: , , , , ,
Brands:

Description

Atomfair NCM811-S02 lithium nickel cobalt manganese oxide (NCM811) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
Atomfair NCM811-S02 is a premium lithium nickel cobalt manganese oxide (NCM811) electrode sheet, single-side coated with 24 mg/cm² via a precision wet process. Engineered specifically for Lithium-ion battery R&D, this material delivers excellent stability and performance consistency. Each pack contains 5 sheets, ensuring uniform quality parameters for laboratory benchmarking, active material evaluation, and rigorous electrochemical characterization.

Technical Specifications
PARAMETER DETAILS
Product code S02
Coating material NCM811
Active material ratio 96.50%
Coating density 24 mg/cm²
Coating area 152*100 mm
Coating Type Single-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 3.63 mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 186*100 mm
Compaction Density 3.2 g/cm³
Capacity 200 mah/g
Coating Process Wet Process

Key Features & Advantages
  • High Active Phase Ratio: Formulated with a 96.50% active material matrix to ensure maximum electrochemical density and accurate data output.
  • Precision Wet Processing: Guarantees uniform 24 mg/cm² mass loading and exceptional structural integrity across the single-sided profile.
  • Carbon-Coated Substrate: Minimizes interface contact resistance and safeguards high-rate cycle capability on premium aluminum foil.
  • Customization Architecture: Flexible adjustments for specific coating thickness/width and current collector dimensions are fully supported.

APPLICATION SCOPE: Lithium-ion battery R&D, structural material validation, and systematic electrochemical performance analysis.
PACKAGING: 5 sheets/pack configuration to ensure batch uniformity and reproducible experimental parameters.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard electrode activation requires 12 hours under vacuum baking at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or custom fabrication inquiries.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
