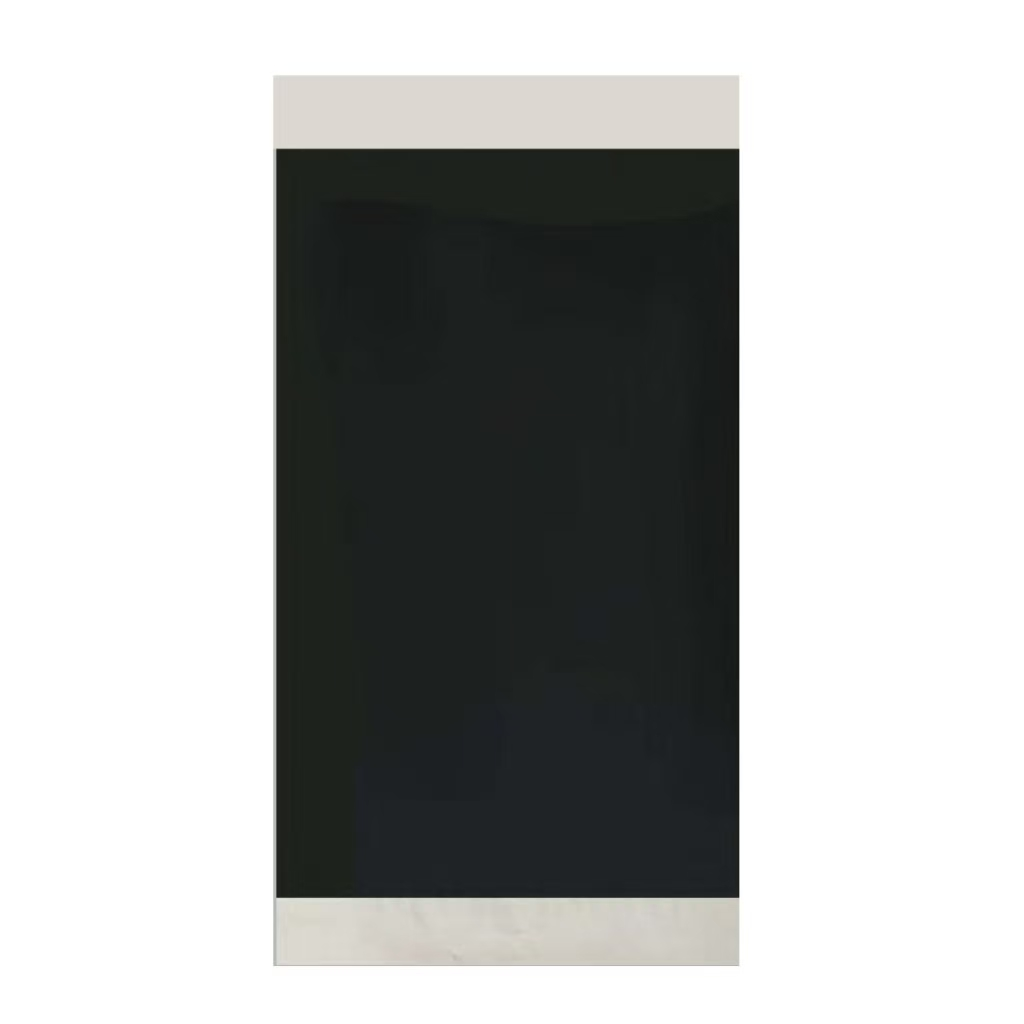

Wet process single-sided NCM811 cathode electrode sheet 12 mg/cm² S01 by Atomfair for high-nickel lithium-ion batteries.
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S01, 12 mg/cm², Wet Process, 5 Pack - Image 2
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S01, 12 mg/cm², Wet Process, 5 Pack - Image 3
ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) - S01, 12 mg/cm², Wet Process, 5 Pack - Image 4

ATOMFAIR® NCM811 Cathode Electrode Sheet (Single-Sided) – S01, 12 mg/cm², Wet Process, 5 Pack

$89.00

Atmofair NCM811-S01 lithium nickel cobalt manganese oxide Electrode Sheet, 12 mg/cm²,Single-sided wet coating with standard density.

Quantity Discount (%) Price
1 – 4 — $89.00
5+ — $89.00
Category:
Tags: , , , , ,
Brands:

Description

Atomfair NCM811-S01 lithium nickel cobalt manganese oxide (NCM811) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
Atomfair NCM811-S01 is a high-purity lithium nickel cobalt manganese oxide (NCM811) electrode sheet, single-side coated with 12 mg/cm² via a precision wet process. Formulated explicitly for Lithium-ion battery R&D, each pack delivers 5 sheets to guarantee standard uniformity for laboratory screenings, active material evaluations, and high-fidelity electrochemical performance diagnostics.

Technical Specifications
PARAMETER DETAILS
Product code S01
Coating material NCM811
Active material ratio 96.50%
Coating density 12 mg/cm²
Coating area 152*100 mm
Coating Type Single-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 3.63 mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 186*100 mm
Compaction Density 2.5 g/cm³
Capacity 200 mah/g
Coating Process Wet Process

Key Features & Advantages
  • High Active Target Concentration: Formulated with a 96.50% active material matrix to maintain optimum targeted electrochemical kinetics.
  • Precision Wet Film Deployment: Achieves a controlled 12 mg/cm² loading profile for standardized baseline testing.
  • Conductive Carbon Buffer: Features carbon-coated foil to decrease boundary polarization effects and ensure steady power profiles.
  • Architectural Adaptability: Custom options for modified coating depth/width or current collector sizes can be coordinated directly.

APPLICATION SCOPE: Lithium-ion battery R&D, material evaluation protocols, and systematic electrochemical performance analysis.
PACKAGING: 5 sheets/pack layout configured to uphold stable testing parameters.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard configuration protocol mandates 12 hours under vacuum baking at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
