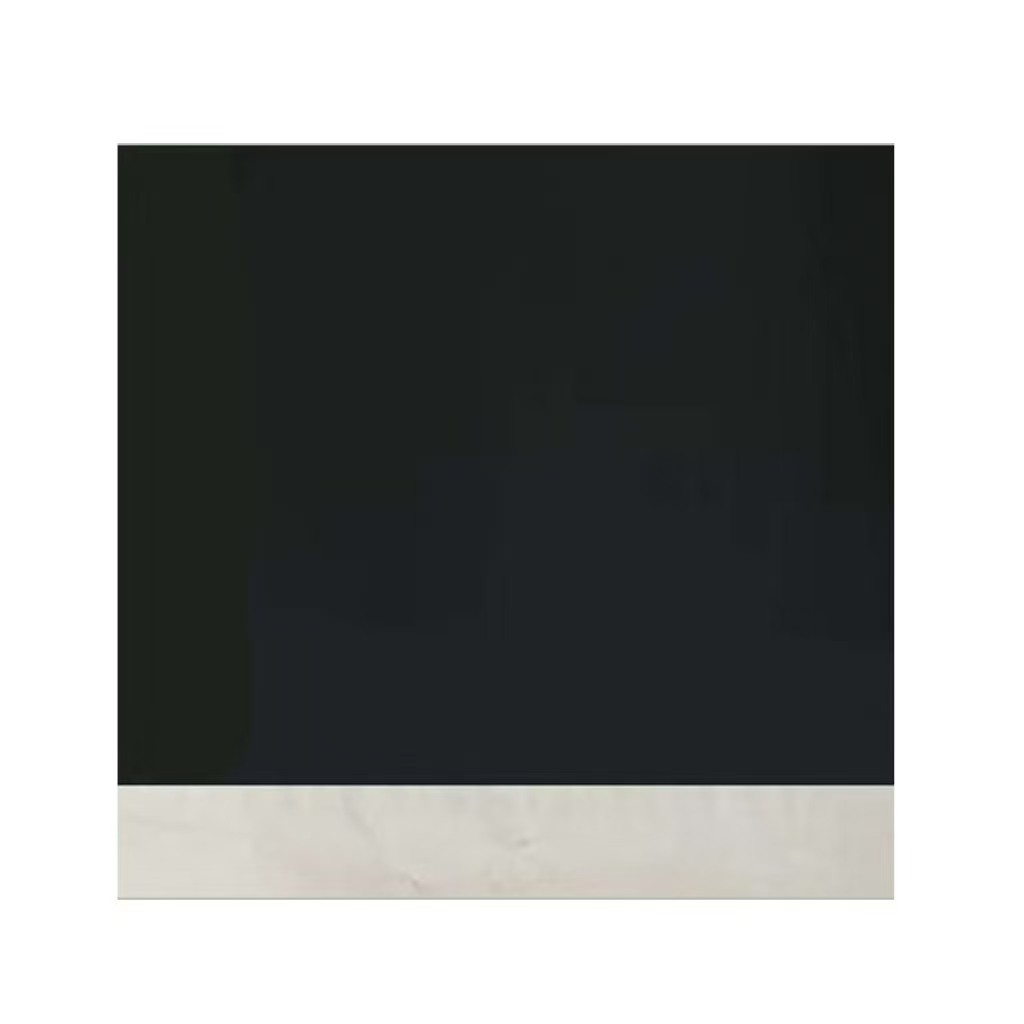

Atomfair Ni90-S01 high-nickel NCM cathode sheet, 16.8 mg/cm² single side coating, wet process lithium-ion battery electrode for high energy density.
ATOMFAIR® Ni90-S01 High-Nickel NCM Cathode Sheet | 16.8 mg/cm² Single Side Coating, Wet Process - 5 Pack - Image 2
ATOMFAIR® Ni90-S01 High-Nickel NCM Cathode Sheet | 16.8 mg/cm² Single Side Coating, Wet Process - 5 Pack - Image 3
ATOMFAIR® Ni90-S01 High-Nickel NCM Cathode Sheet | 16.8 mg/cm² Single Side Coating, Wet Process - 5 Pack - Image 4

ATOMFAIR® Ni90-S01 High-Nickel NCM Cathode Sheet | 16.8 mg/cm² Single Side Coating, Wet Process – 5 Pack

$89.00

Atmofair Ni90-S01 High-Nickel Nickel-Cobalt-Manganese Lithium Oxide Electrode Sheet, 16.8 mg/cm²,Single-sided coating with high active material ratio.

Quantity Discount (%) Price
1 – 4 — $89.00
5+ — $89.00
Category:
Tags: , , , ,
Brands:

Description

Atomfair Ni90-S01 High-Nickel Nickel-Cobalt-Manganese Lithium Oxide Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview

Atomfair Ni90-S01 High-Nickel Nickel-Cobalt-Manganese Lithium Oxide Electrode Sheet is single-side coated with 16.8 mg/cm² via a precise wet process. It is ideal for Lithium-ion battery R&D, providing high reliability for electrochemical performance analysis. Each pack includes 5 sheets, ensuring consistent quality for laboratory testing and material evaluation.

Customization Options: This Ni90 (High-Nickel Nickel-Cobalt-Manganese Lithium Oxide) coated aluminum foil can be fully customized upon request. Parameters such as coating thickness/width, and aluminum foil thickness/width can be tailored to meet your exact specifications. Please feel free to contact us to specify your requirements.

Electrode Sheet Design Parameters
PARAMETER VALUE
Product code S01
Coating material Ni90
Active material ratio 97.40%
Coating density 16.8 mg/cm²
Coating area 130*140 mm
Coating Type Single-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 3.2 mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 160*160 mm
Compaction Density –
Capacity 200 mah/g
Coating Process Wet Process
Pack Size 5 sheets/pack

Frequently Asked Questions (FAQ)
Q: How is the electrode sheet baking time determined?
A: It is 12 hours under vacuum baking at 100°C.

APPLICATION SCOPE: Lithium-ion battery Research and Development (R&D), laboratory testing, material evaluation, and reliable electrochemical performance analysis.
PACKAGING: 5 sheets per pack.
DISCLAIMER / NOTICE: Sold exclusively for laboratory research.
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
