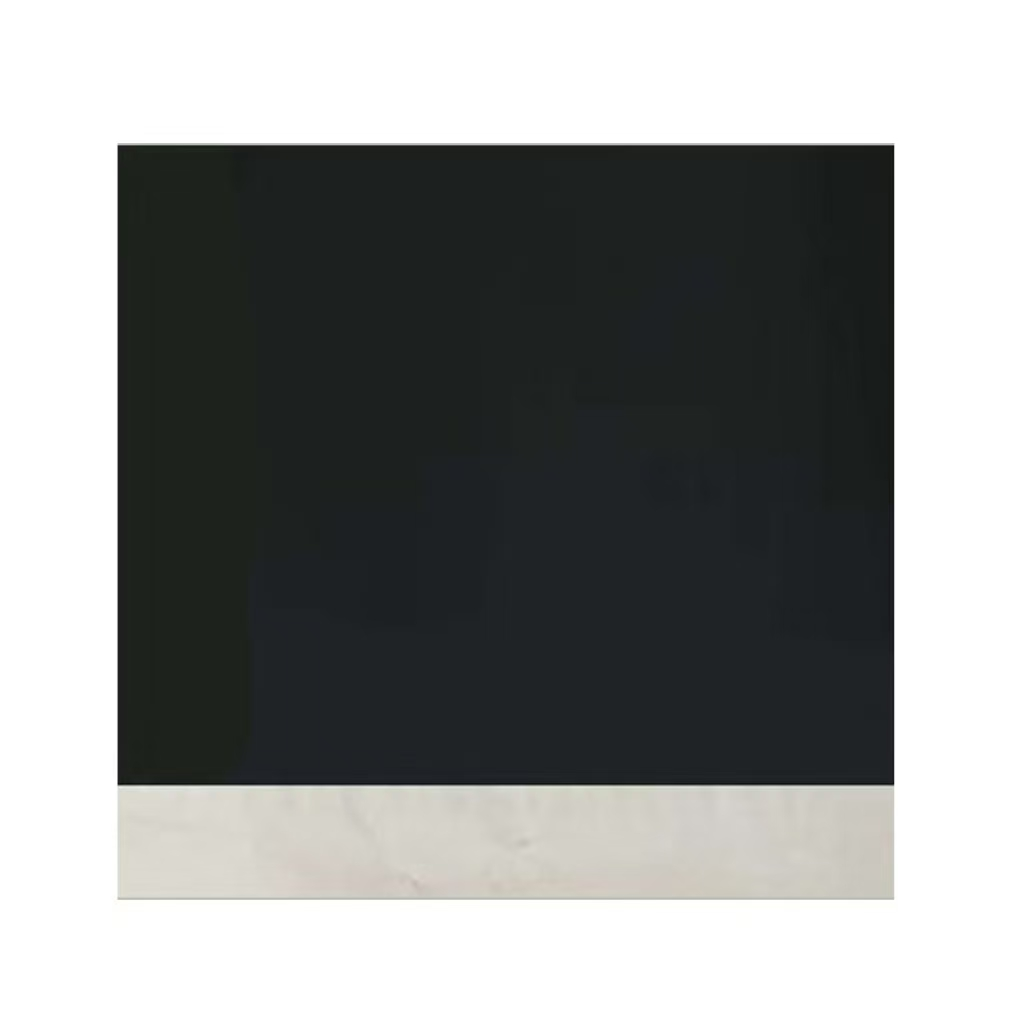

Dry process double-sided lithium-rich manganese-based LMR cathode sheet 69.6 mg/cm² LMR-D03 by Atomfair for lithium-ion battery.
ATOMFAIR® Lithium-rich Manganese-based (LMR) Cathode Sheet - LMR-D03, Dry Process, Double-Sided, 69.6 mg/cm², 5 Pack - Image 2
ATOMFAIR® Lithium-rich Manganese-based (LMR) Cathode Sheet - LMR-D03, Dry Process, Double-Sided, 69.6 mg/cm², 5 Pack - Image 3

ATOMFAIR® Lithium-rich Manganese-based (LMR) Cathode Sheet – LMR-D03, Dry Process, Double-Sided, 69.6 mg/cm², 5 Pack

$109.00

Atmofair LMR-D03 Lithium-rich Manganese-based Cathode Electrode Sheet,69.6 mg/cm²,Double-sided dry coating with optimized performance.

Quantity Discount (%) Price
1 – 4 — $109.00
5+ — $119.00
Category:
Tags: , , , ,
Brands:

Description

Atomfair LMR-D03 Lithium-rich Manganese-based Cathode (LMR) Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
Atomfair LMR-D03 is a high-performance Lithium-rich Manganese-based Cathode (LMR) electrode sheet, double-side coated with 69.6 mg/cm² via a specialized dry process. Purpose-built for advanced Lithium-ion battery R&D, this material delivers the critical film consistency and loading accuracy required for high-capacity laboratory testing, material phase characterization, and reliable electrochemical performance analysis.

Technical Specifications
PARAMETER DETAILS
Product code D03
Coating material LMR
Active material ratio 96.00%
Coating density 69.6 mg/cm²
Coating area 90*120 mm
Coating Type Double-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 4.2 mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 90*140 mm
Compaction Density 2.5 g/cm³
Capacity 300 mah/g
Coating Process Dry Process

Key Features & Advantages
  • High Energetic Capacity: Engineered to yield a 300 mAh/g capacity matrix paired with an optimized 96.00% active target chemistry composition.
  • Advanced Dry Processing: Ensures superior electrode film cohesion, robust structure, and stable 69.6 mg/cm² loading across the double-sided profile.
  • Carbon-Coated Substrate: Minimizes interfacial contact resistance and contact polarization to promote long-term cycling stability.
  • Flexible Customization: Tailored alterations for coating geometry (thickness/width) and aluminum foil dimensions are fully supported upon specialized request.

APPLICATION SCOPE: High-capacity Lithium-ion battery R&D, structural material validation, and advanced electrochemical diagnostics.
PACKAGING: Pack includes 5 sheets, ensuring consistent batch quality for standard laboratory evaluations.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard electrode conditioning protocol targets 12 hours under vacuum baking at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or custom fabrication inquiries.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
