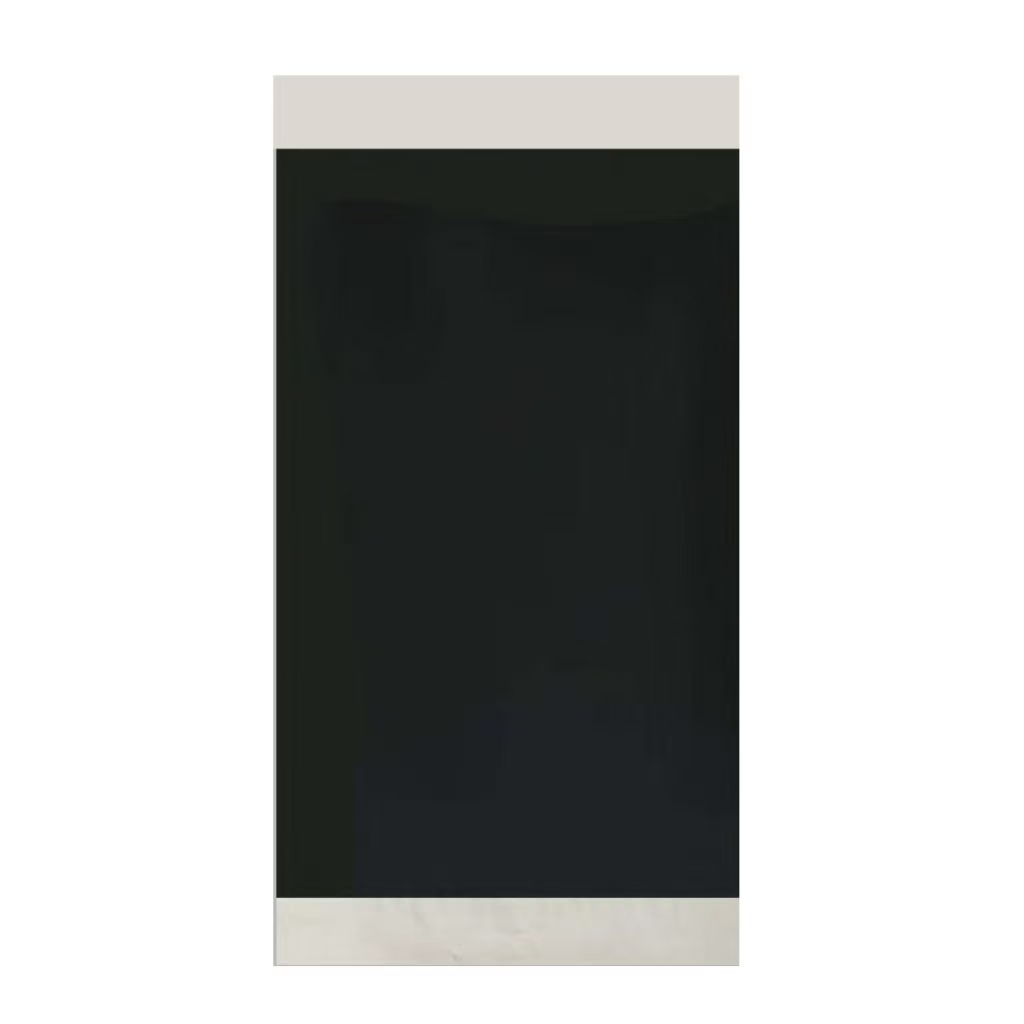

Wet process double-sided NCM811 cathode sheet 48 mg/cm² high loading D02 by Atomfair for lithium-ion battery.
ATOMFAIR® NCM811 Cathode Sheet for Li-ion Battery - 48 mg/cm² High Loading, Double-Sided, Wet Process, D02, 5 Pack - Image 2
ATOMFAIR® NCM811 Cathode Sheet for Li-ion Battery - 48 mg/cm² High Loading, Double-Sided, Wet Process, D02, 5 Pack - Image 3

ATOMFAIR® NCM811 Cathode Sheet for Li-ion Battery – 48 mg/cm² High Loading, Double-Sided, Wet Process, D02, 5 Pack

$89.00

Atmofair NCM811-D02 lithium nickel cobalt manganese oxide Electrode Sheet, 48 mg/cm²,Double-sided wet coating with high density.

Quantity Discount (%) Price
1 – 4 — $89.00
5+ — $89.00
Category:
Tags: , , , , , ,
Brands:

Description

Atomfair NCM811-D02 Lithium Nickel Cobalt Manganese Oxide Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair NCM811-D02 is a high-performance lithium nickel cobalt manganese oxide electrode sheet, featuring a precision double-side coating with a density of 48 mg/cm² via a wet process. Specifically engineered for advanced Lithium-ion battery R&D, this material ensures consistent batch quality for laboratory testing, material evaluation, and rigorous electrochemical performance analysis.

Technical Specifications
PARAMETER DETAILS
Product Code D02
Coating Material NCM811
Active Material Ratio 96.50%
Coating Density 48 mg/cm²
Coating Area 152 * 100 mm
Coating Type Double-sided
Substrate Material Carbon-coated aluminum foil
Current Collector Areal Density 3.63 mg/cm²
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 186 * 100 mm
Compaction Density 3.2 g/cm³
Specific Capacity 200 mAh/g
Coating Process Wet Process

Key Features & Advantages
  • High Specific Capacity: Optimized NCM811 formulation delivering a reliable 200 mAh/g for advanced energy studies.
  • Advanced Substrate: Carbon-coated aluminum foil enhances electrical conductivity and interfacial bonding stability.
  • Precision Wet Coating: Ensures uniform mass loading (48 mg/cm²) and excellent mechanical integrity for reproducible data.
  • Tailored Customization: Supports specific requirements for coating thickness, width, and foil dimensions to match unique cell designs.

APPLICATION SCOPE: Lithium-ion battery R&D, material evaluation, and electrochemical performance characterization.
PACKAGING: 5 sheets per pack, vacuum-sealed to preserve material active state and consistency.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard baking protocol: 12 hours under vacuum at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
