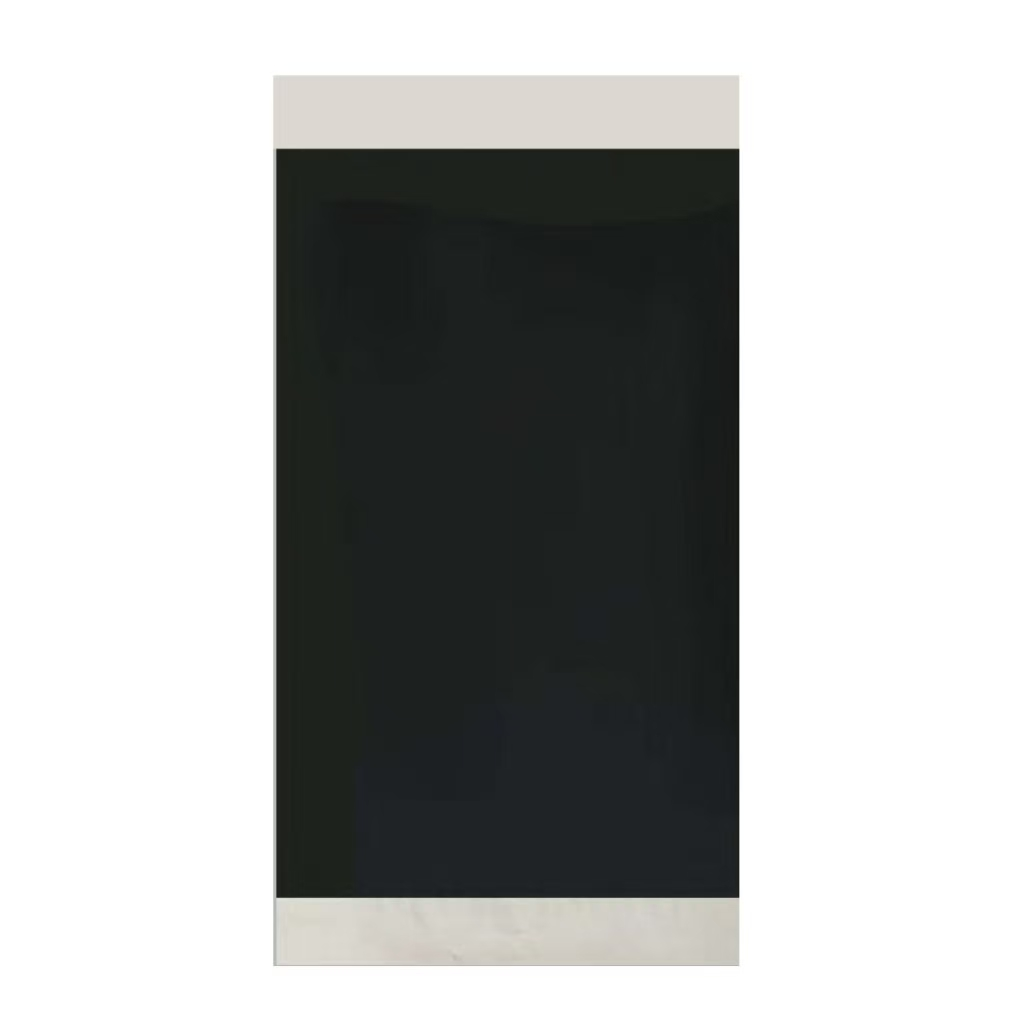

Wet process double-sided P2-type NMTO sodium nickel manganese oxide cathode sheet 27 mg/cm² D01 by Atomfair for sodium-ion batteries.
ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet - D01, Double-Sided, 27 mg/cm², Wet Process, 5 Pack - Image 2
ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet - D01, Double-Sided, 27 mg/cm², Wet Process, 5 Pack - Image 3

ATOMFAIR® P2-Type NMTO Sodium Nickel Manganese Oxide Cathode Sheet – D01, Double-Sided, 27 mg/cm², Wet Process, 5 Pack

$89.00

D01 NMTO (P2-Type) Sodium Nickel Manganese Oxide Electrode Sheet, Double-sided wet coating with higher compaction density.

Quantity Discount (%) Price
1 – 4 — $89.00
5+ — $89.00
Category:
Tags: , , , ,
Brands:

Description

Atomfair D01-NMTO (P2-Type) Sodium Nickel Manganese Oxide Electrode Sheet

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair D01-NMTO is a research-grade P2-Type Sodium Nickel Manganese Oxide electrode sheet, double-side coated at 27 mg/cm² using a high-precision wet process. Optimized for sodium-ion battery R&D, this electrode architecture ensures high mass loading and structural stability, providing a reliable platform for advanced electrochemical performance analysis and material characterization.

Technical Specifications
PARAMETER DETAILS
Product Code D01
Coating Material NMTO (P2-Type Sodium Nickel Manganese Oxide)
Active Material Ratio 93.50%
Coating Density 27 mg/cm²
Coating Area 152 * 100 mm
Coating Type Double-sided
Substrate Material Carbon-coated aluminum foil
Current Collector Areal Density 3.63 mg/cm²
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 186 * 100 mm
Compaction Density 2.3 g/cm³
Specific Capacity 115 mAh/g
Coating Process Wet Process

Key Features & Advantages
  • High Mass Loading: 27 mg/cm² double-sided coating designed for high-energy density electrode benchmarking.
  • Conductive Substrate: Carbon-coated aluminum foil improves adhesion and lowers charge-transfer resistance.
  • P2-Type Phase Stability: NMTO active material selected for its robust sodium intercalation kinetics.
  • Customization Support: Flexible adjustments for coating thickness, area, and substrate specifications available.

APPLICATION SCOPE: Sodium-ion battery R&D, full-cell benchmarking, and advanced material testing.
PACKAGING: 5 sheets per pack, maintaining batch-to-batch consistency for laboratory use.
IMPORTANT NOTICE: Sold exclusively for laboratory research. Standard baking protocol: 12 hours under vacuum at 100°C.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
