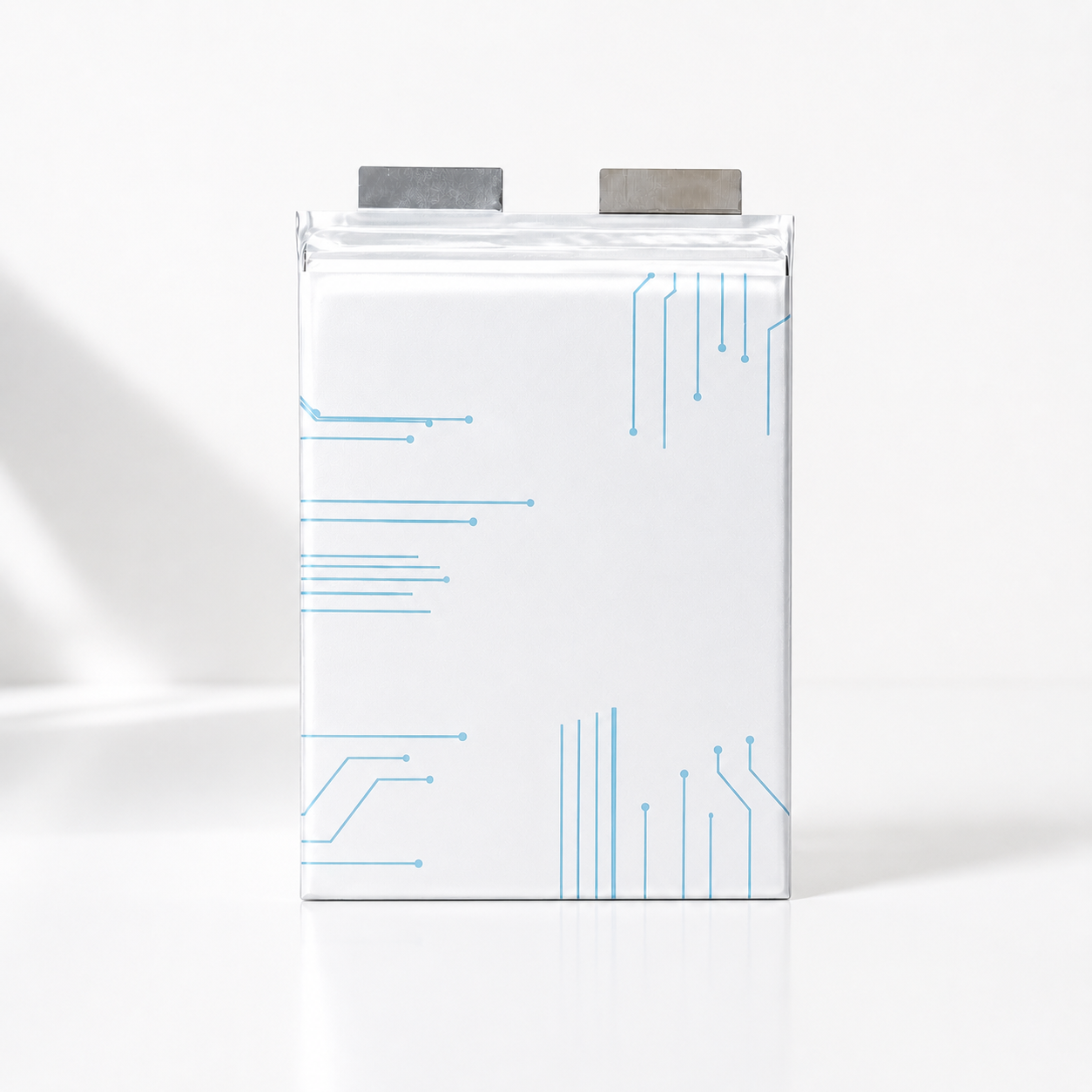

ZCL Series Nanocomposite Manganese Solid-State Cells | 20Ah-40Ah High-Density
New-Gen Manganese Revolution | 200Wh/kg Ultra-High Energy & -30°C Cold-Resistance
Product Overview
The ZCL Series represents the next frontier in solid-state battery technology, featuring an innovative nanocomposite manganese-based cathode paired with a high-rate graphite anode. Integrated with a proprietary electrolyte coating membrane, these cells achieve an industry-leading energy density of up to 200Wh/kg, enabling an ultra-long range of 120km+. Engineered for extreme reliability, the ZCL series maintains stable power output across a wide temperature spectrum (-30°C to 60°C) while reducing carbon emissions by 30% throughout its lifecycle.
Technical Specifications
| Model Type | Cell Size (mm) | Nominal Capacity | Nominal Voltage | Energy Density | Operating Temp. | Cycle Life @RT |
|---|---|---|---|---|---|---|
| ZCL122175-20 | 9.5 * 122 * 175 | 20Ah | 3.7V | 191Wh/kg | -30°C to 55°C | ≥2000 Cycles |
| ZCL165227-40 | 10 * 165 * 227 | 40Ah | 3.7V | 197Wh/kg | -30°C to 55°C | ≥2000 Cycles |
| ZCL14894-30 | 26 * 148 * 94 | 30Ah | 3.7V | 170Wh/kg | -30°C to 55°C | ≥2000 Cycles |
Core Features & Advantages
Breakthrough Range
Achieves up to 200Wh/kg energy density, supporting an ultra-long range of over 120km for LEVs.
Extreme Cold Resistance
Stable output from -30°C to 60°C. Maintains >80% capacity retention at -20°C (1C discharge).
Eco-Friendly Innovation
Next-gen manganese technology enables a 30% reduction in carbon emissions throughout the product lifecycle.
Application Scope
- Small Power Systems (E-Bikes, Scooters)
- Professional High-Load Power Tools
- Robotics & Unmanned Systems
- Extreme Environment Power Solutions
Accessories & Customization
Technical Data: Full discharge curve data and thermal stability reports are available for research validation.
BMS Compatibility: Optimized for smart management systems supporting precise SOC/SOH monitoring at low temperatures.
Customization: Specialized cell dimensions and tab configurations are available for specific industrial prototyping.
ADVANCE YOUR RESEARCH WITH ZCL TECHNOLOGY
Connect with our engineering team for technical support, low-temp performance data, or bulk quotations.
