Description
811-Li Metal Dry Pouch Cell Parameters (2/3 Layers)
Coulomb Cell – High-Performance NCM 811 Lithium Metal Research Cell
Product Overview

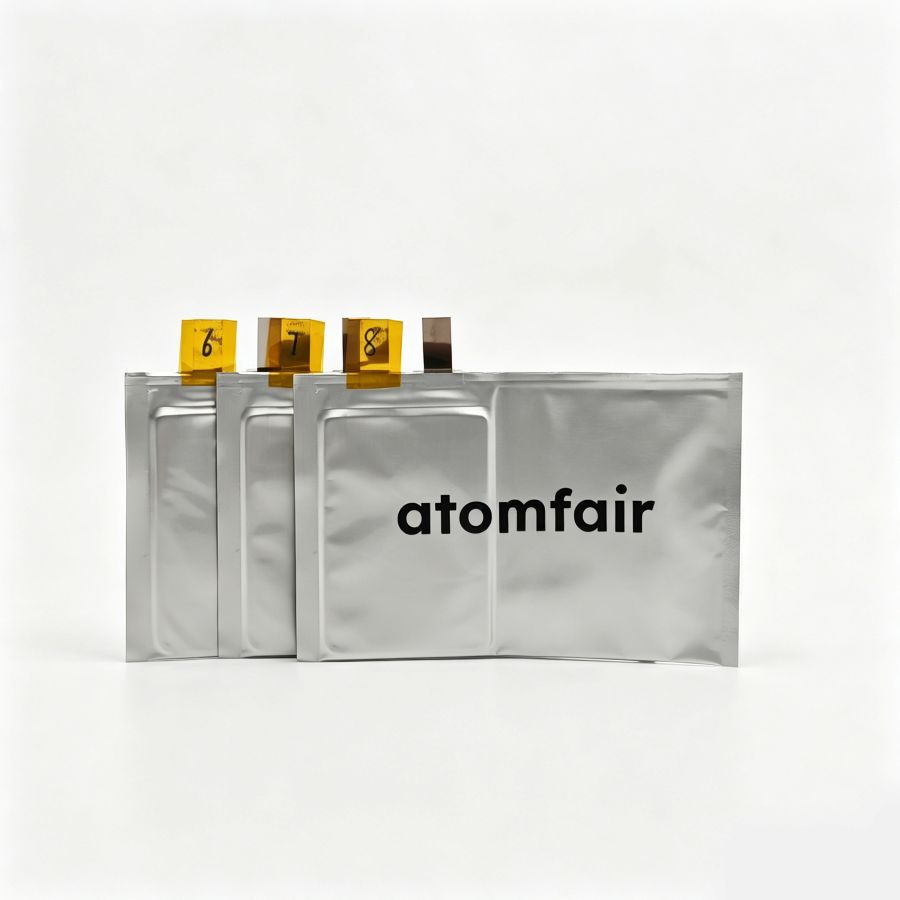

This 811-Lithium Metal pouch bare cell (2/3 layer structure) is engineered for advanced battery research. Utilizing a high-capacity NCM 811 cathode and a Li Cu anode system, it provides a specialized platform for exploring high energy density boundaries. Equipped with a 12 um PE + 2 um ceramic coated separator, it ensures superior interface stability and safety for laboratory validation and material testing.
Technical Specifications
| Category | Property | Value |
|---|---|---|
| Cell | Capacity | 0.2 Ah |
| Voltage Range | 3V ~ 4.3 V | |
| NP Ratio | – | |
| Separator | 12 um PE + 2 um ceramic | |
| Cathode | Material Type | NCM 811 |
| Active Material Percent | 97.2% | |
| Specific Capacity (mAh/g) | 190 | |
| Compaction Density (g/cc) | 2.5 | |
| Coating Areal Density (mg/cm2) | 10 | |
| Dimensions (mm) | 45.5*64 | |
| Anode | Material Type | Li Cu |
| Thickness Parameter | 20+6+20 um | |
| Specific Capacity (mAh/g) | – | |
| Compaction Density (g/cc) | – | |
| Coating Areal Density (mg/cm2) | – | |
| Dimensions (mm) | 46.5*65 |
TAILORED SOLUTIONS FOR YOUR RESEARCH
Contact our engineering team for technical support, custom dimensions, or official quotations.
