Description

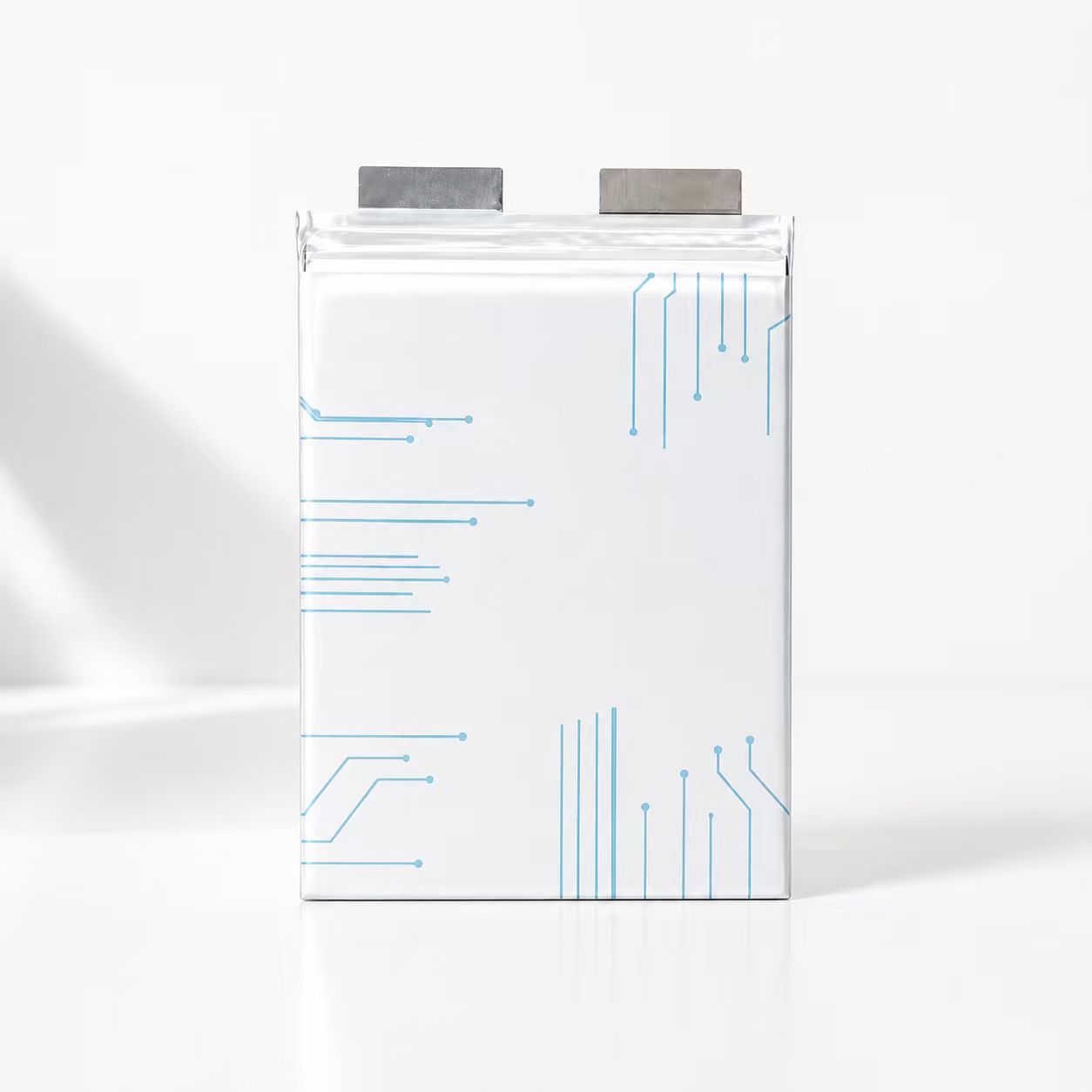

HP Series “Performance Beast” Solid-State Cells | Up to 20C Ultra-High Discharge
Engineered for High-Performance UAVs: Extreme Power Density & Superior Cycle Durability
Product Overview
The HP Series represents the “Performance Beast” of solid-state battery technology, specifically engineered for high-performance drones and professional aerial platforms. It masterfully balances ultra-high discharge power (up to 20C) with large-capacity designs, integrating robust instantaneous torque and long-lasting endurance. Featuring an exceptional high-rate cycle life and low internal resistance, the HP series redefines the power standard for aircraft requiring intensive maneuvers and industrial-grade reliability.
Technical Specifications
1. HPDG Dynamic Series (High-Discharge Focus)
| Specification | HPDG88124T1-12 | HPDG87187T1-22 |
|---|---|---|
| Nominal Capacity | 12Ah | 22Ah |
| Cont. Discharge Rate | 20C | 12C |
| AC Resistance | ≤0.6mΩ (30% SOC) | ≤0.65mΩ (30% SOC) |
| Cell Size (mm) | 9.6*88*124 | 11*87*187 |
2. HPEG / HPED Series (Balanced Power Focus)
| Specification | HPEG87187T1-22 | HPED87187T1-22 |
|---|---|---|
| Nominal Capacity | 22Ah | |
| Cont. Discharge Rate | 10C | |
| Cycle Life @RT | 1C/8C ≥ 600 cycles | |
| Discharge Temp. Rise | ≤ 40°C | |
Core Features & Advantages
Extreme Discharge Power
Capable of up to 20C continuous discharge, providing the massive torque required for rapid vertical climbs and high-speed maneuvers.
Elite Thermal Stability
Maintains a strictly controlled temperature rise (≤40°C/50°C) even under maximum load, ensuring avionics safety and cell longevity.
High-Rate Cycle Life
Specifically optimized for durability with ≥500-600 cycles under rigorous 8C discharge testing, reducing total cost of operations.
Application Scope
- High-Performance Racing Drones
- Industrial High-Speed Inspection UAVs
- Heavy-Lift Logistics Aerial Platforms
- Professional Cinematography Drones
Accessories & Customization
Low Internal Resistance: Industry-leading AC IR (≤0.6mΩ) significantly minimizes energy conversion loss into heat.
Custom Form Factors: Bespoke dimensions and connector tab configurations available for specific airframe requirements.
Testing Reports: UN38.3, MSDS, and detailed high-rate discharge curve data are available upon request.
TAILORED SOLUTIONS FOR HIGH-PERFORMANCE AIRCRAFT
Contact our engineering team for technical support, high-rate performance data, or official quotations.
