Description
Professional UAV Lithium Battery Packs | 360Wh/kg High-Density & 7C Power
High-Performance Pouch Cell Technology | Optimized Solutions from 4S to 14S Configurations
Product Overview
This series of professional drone battery packs is meticulously engineered for high-end UAV applications and advanced aerospace propulsion. Utilizing state-of-the-art Pouch Cell technology, our lineup spans from ultra-lightweight 360Wh/kg packs for long-endurance scouting to 51.8V (14S) heavy-duty industrial series. By combining record-breaking specific energy with superior thermal management and high-rate discharge capabilities (up to 7C), these batteries provide mission-critical power for extended inspections, precision mapping, and heavy-lift logistics.
Technical Specifications
1. High-Specific-Energy Lightweight Series (360Wh/kg)
| Model Voltage | Config. | Energy Density | Current/C-rate | Weight (±20g) | Size (mm) |
|---|---|---|---|---|---|
| 14.8V (10Ah) | 4S1P | 360Wh/kg | 50A / 5C | 475g | 46*46*165 |
| 22.2V (10Ah) | 6S1P | 360Wh/kg | 50A / 5C | 710g | 64*46*165 |
2. Industrial High-Capacity & Heavy-Duty Series (320Wh/kg)
| Nominal Voltage | Capacity | Config. | Current/C-rate | Weight | Size (mm) |
|---|---|---|---|---|---|
| 44.4V (12S) | 31Ah | 12S1P | 217A / 7C | 4950±150g | 130*93*220 |
| 36Ah | 12S1P | 252A / 7C | 5740±150g | 142*93*220 | |
| 51.8V (14S) | 31Ah | 14S1P | 217A / 7C | 5770±150g | 150*93*220 |
| 36Ah | 14S1P | 252A / 7C | 6700±300g | 164*93*220 |
Core Features & Advantages
Peak Specific Energy
Industry-leading energy density up to 360Wh/kg, significantly reducing propulsion system weight and pushing flight endurance to physical limits.
High-Voltage Heavy-Duty Capability
Supports configurations up to 51.8V (14S), delivering the massive torque and sustained high power required for heavy-lift industrial UAVs.
Industrial Pouch Cell Stability

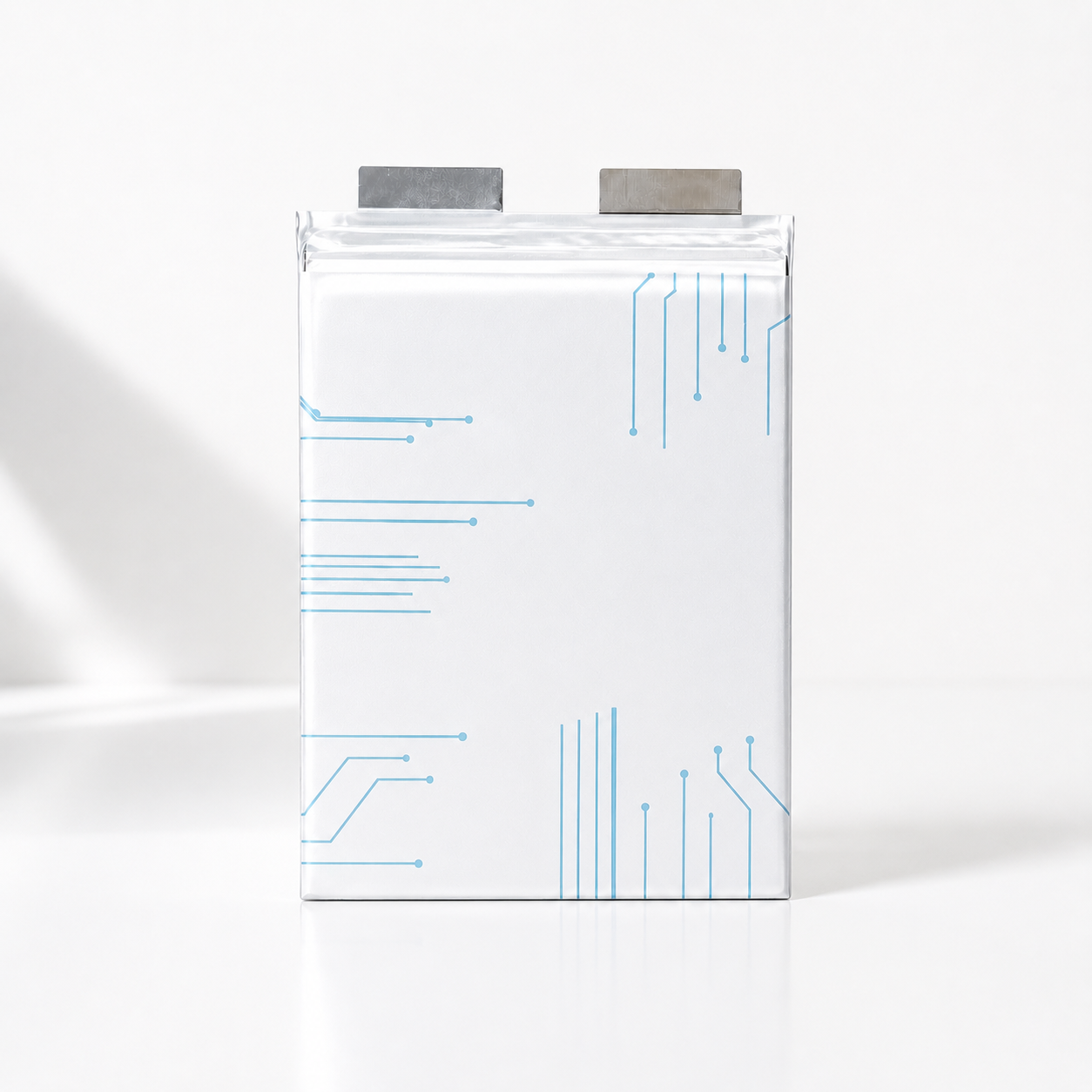

Utilizes professional-grade soft-pack (pouch cell) architecture for superior heat dissipation, weight efficiency, and vibration resistance.
Application Scope
- Long-Endurance Inspection Drones (4S/6S)
- Precision Mapping & Surveying UAVs
- Heavy-Lift Logistics & Delivery (12S/14S)
- High-Altitude Aerospace Research Platforms
Accessories & Customization
BMS Integration: Fully compatible with advanced Battery Management Systems for real-time SOC/SOH monitoring and high-current protection.
Custom Connectors: Packs can be fitted with AS150, XT90-S, or specialized industrial connectors upon request.
Technical Validation: Discharge curve profiles and safety certification data (UN38.3/MSDS) are available for verified institutional clients.
TAILORED POWER SOLUTIONS FOR YOUR FLEET
Contact our engineering team for technical support, high-voltage configurations, or bulk lab-grade quotations.
