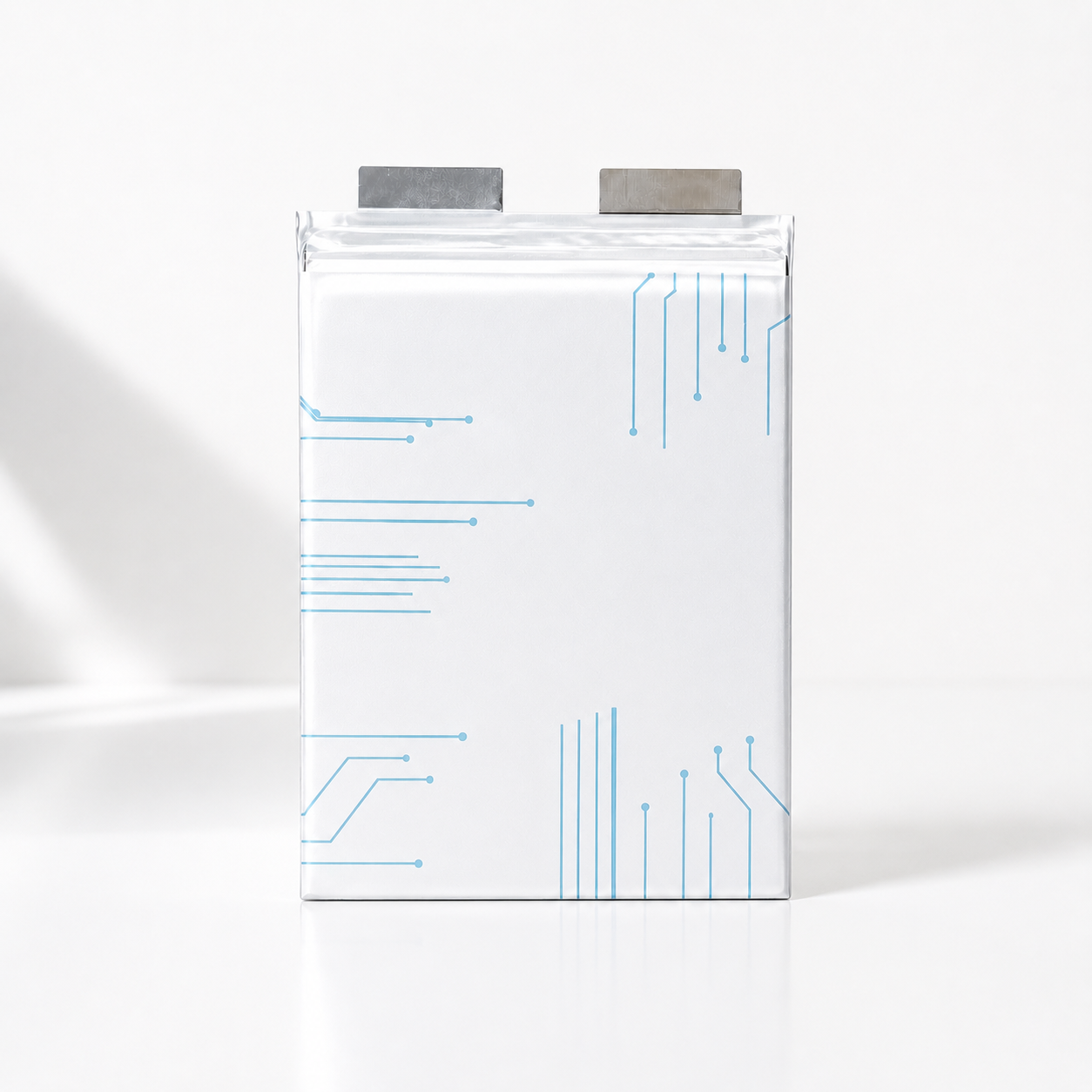

ES03 Series All-Rounder Solid-State Cells | 340Wh/kg High-Power Battery
The Art of Balance: 340Wh/kg Energy Density & 3C High-Power Discharge Capability
Product Overview
The ES03 series solid-state battery cell is the ultimate “all-rounder” for high-performance applications. It masterfully achieves an exquisite balance between high energy density (340Wh/kg), robust power output (3C discharge), and long cycle life. Specifically engineered to maintain a low temperature rise of less than 30°C during heavy operation, the ES03 series provides a reliable and efficient energy solution for diverse application scenarios, including professional UAV platforms and industrial robotics.
Technical Specifications
| Specification | ES0387187T1-36 | ES0387187T2-39 |
|---|---|---|
| Nominal Capacity | 36Ah | 39Ah |
| Energy Density | 340Wh/kg | |
| Nominal Voltage | 3.54V | 3.54V |
| Cell Size (mm) | 10.5*87*187 | 11.5*87*187 |
| AC Internal Resistance | ≤1mΩ (30% SOC) | |
| Cont. Discharge Rate | 3C ≥ 95% SOC | |
| Operating Temperature | -20°C to 60°C | |
| Cycle Life @RT | 1C/3C ≥ 500 cycles | |
Core Features & Advantages
Balanced All-Round Performance
Harmonizes high energy density (340Wh/kg) with high power output (3C discharge) to meet the diverse needs of modern robotics.
Exceptional Thermal Management
Features an industry-leading temperature rise of less than 30°C during operation, ensuring long-term cell health and system safety.
Ultra-Low Internal Resistance
The ≤1mΩ internal resistance minimizes energy loss and maximizes efficiency during high-rate discharge cycles.
Application Scope
- Professional Surveillance UAVs
- Industrial Automation Robotics
- High-Performance Motive Power Systems
- Diverse Scientific Research Prototyping
Accessories & Customization
BMS Integration: Optimized for smart management systems requiring precise high-rate discharge monitoring and thermal control.
Custom Form Factors: Bespoke cell dimensions and tab orientations are available for specialized research and industrial integration.
Technical Data: Full discharge curve sets and safety testing documentation are available upon verified inquiry.
