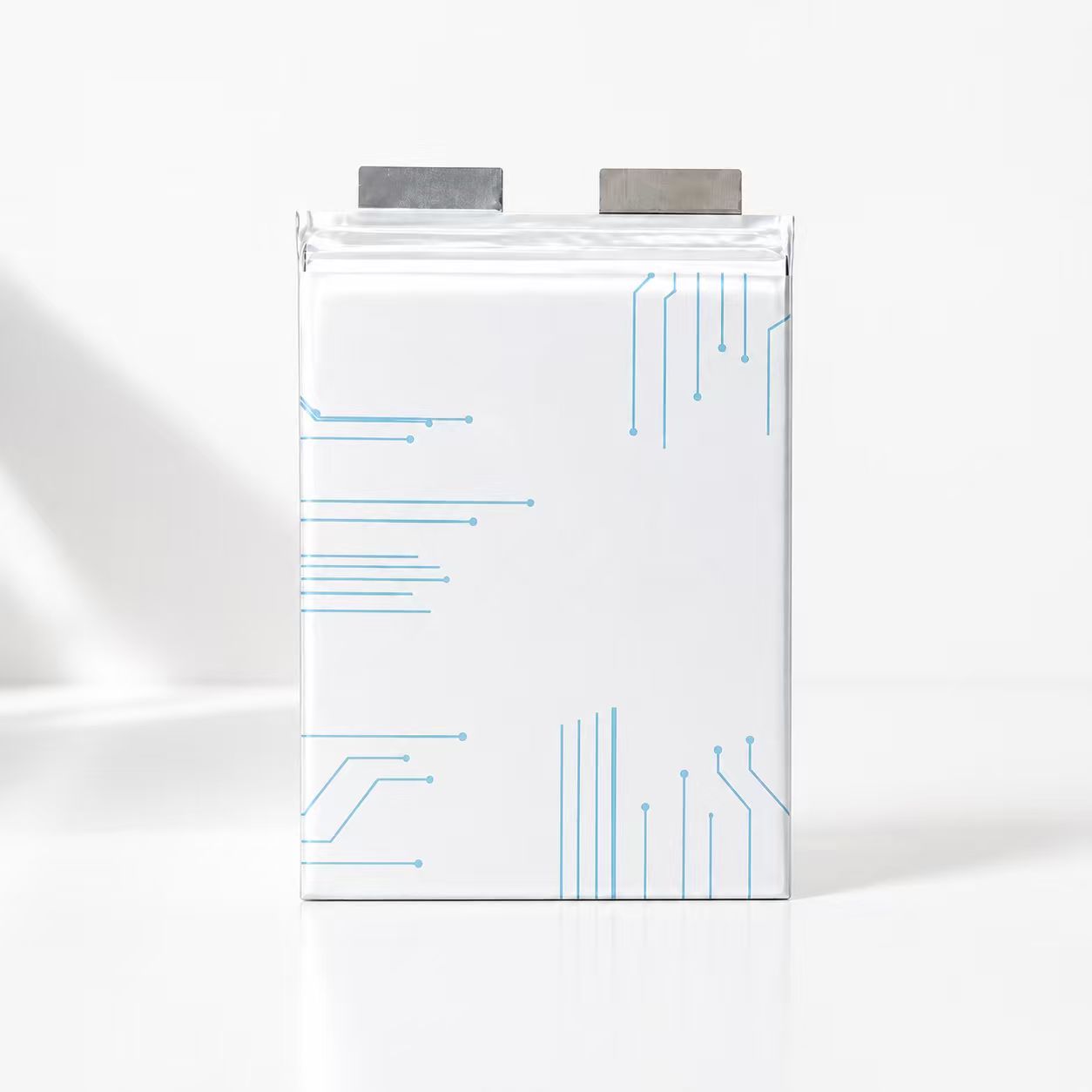

ES01 Series Ultra-High Energy Solid-State Cells | 320Wh/kg Aerospace Power
8C High-Power Potential | -40°C Extreme Environment Reliability | eVTOL & UAV Optimized
Product Overview
Endowed with extraordinary energy and uncompromised performance, the ES01 Series solid-state cells deliver a breakthrough energy density of up to 320Wh/kg. Designed for mission-critical aerospace and drone applications, these cells operate reliably across a vast temperature range from -40°C to 60°C. With an ultra-high 8C power discharge capability and a temperature rise maintained below 45°C, the ES01 series redefines motive power excellence for eVTOL platforms and high-altitude unmanned systems.
Technical Specifications
1. Aerospace & Heavy-duty UAV Series (eVTOL / Heavy Motive Power)
| Specification | ES01100310T1-52 | ES01118460T1-100 |
|---|---|---|
| Nominal Capacity | 52Ah | 100Ah |
| Energy Density | 310Wh/kg | 310Wh/kg |
| Cell Size (mm) | 9.2 * 100 * 310 | 9.3 * 118 * 460 |
| Cont. Discharge Rate | 5C (≥93%SOC) | 4C (≥93%SOC) |
| AC Resistance | ≤0.7mΩ (30%SOC) | |
2. High-Energy UAV & Compact Motive Power Series
| Specification | ES0140140T1-6 | ES0174174T1-26 | ES0187187T1-36 |
|---|---|---|---|
| Nominal Capacity | 6Ah | 26Ah | 36Ah |
| Energy Density | 306Wh/kg | 310Wh/kg | 320Wh/kg |
| Operating Temp. | -40°C to 60°C | -20°C to 60°C | |
| Cycle Life @RT | 1C/3C ≥ 500 | 1C/3C ≥ 700 | 1C/3C ≥ 700 |
Core Features & Advantages
Pinnacle Specific Energy
Industry-leading energy density of up to 320Wh/kg, significantly maximizing mission duration for aerospace platforms.
Extreme Environment Resilience
Reliable performance in extreme cold down to -40°C, ensuring mission success in high-altitude and arctic conditions.
8C High-Power Capability
Supports up to 8C discharge with superior thermal stability (rise < 45°C), engineered for intensive maneuvers.
Application Scope
- Next-Gen eVTOL & Flying Vehicles
- Long-Endurance Reconnaissance UAVs
- Heavy-duty Motive Power Systems
- Extreme Climate Aerospace Missions
Technical Customization
BMS Integration: Optimized for aerospace-grade management systems with precise SOC monitoring under high discharge rates.
OEM/ODM: Bespoke dimensions and tab configurations are available for specific airframe prototyping and research validation.
TAILORED SOLUTIONS FOR AEROSPACE
Contact our engineering team for technical support, high-altitude performance data, or official quotations.
