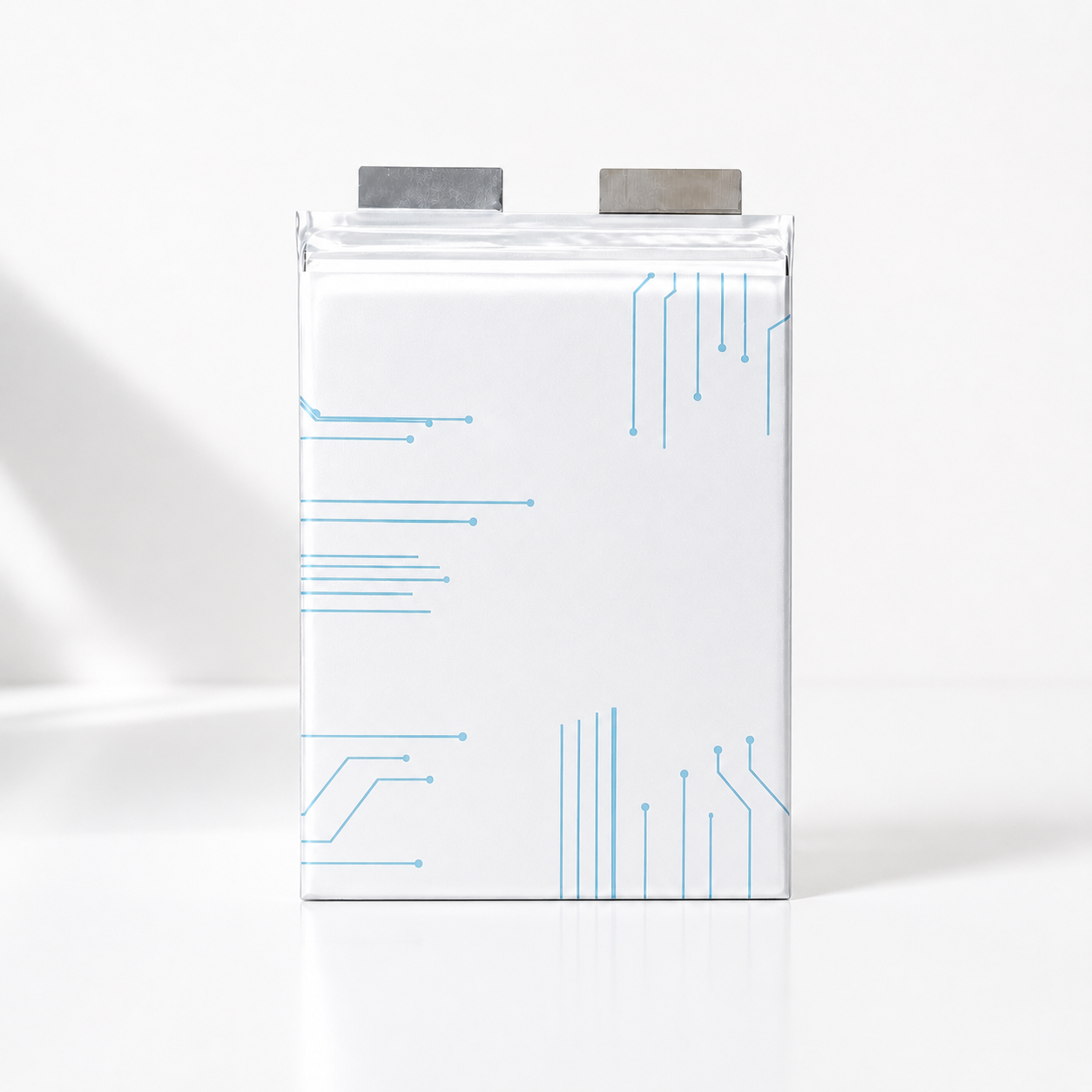

EC01 Series Ultra-Power Solid-State Cells | 500Wh/kg Extreme Density
Energy Fortress: 500Wh/kg Specific Energy & 3C Continuous Discharge at -40°C
Product Overview
The EC01 series represents the extreme frontiers of solid-state battery technology, specifically designed as an “Energy Fortress” for harsh environments. Boasting an industry-leading energy density of 500Wh/kg, it offers unparalleled mission endurance while maintaining the capability for 3C continuous high-power discharge at temperatures as low as -40°C. This series is the premier choice for mission-critical special equipment, high-altitude UAVs, and aerospace applications where performance cannot be compromised by extreme cold.
Technical Specifications
| Parameter | Detailed Specifications (EC0140140T1-15) |
|---|---|
| Nominal Capacity | 15Ah |
| Energy Density | 500Wh/kg |
| Nominal Voltage | 3.83V |
| Voltage Range | 2.5V – 4.3V |
| Cell Size (mm) | 8.5 * 40 * 140 mm |
| Operating Temperature | -40°C to 60°C |
| 3C Discharge Percentage @ -40°C | ≥ 85% |
| 3C Discharge Time @ -40°C | ≥ 12 min |
Core Features & Advantages
Pinnacle Specific Energy
A breakthrough energy density of 500Wh/kg allows for maximum weight reduction while enabling unprecedented mission range for aerial platforms.
Extreme Cold Resilience
Specifically engineered to survive and thrive in environments as low as -40°C, providing a stable power source where traditional batteries fail.
Robust Low-Temp Rate Capability
Maintains a high capacity retention of ≥85% even during 3C continuous discharge in freezing conditions, ensuring mission-critical reliability.
Application Scope
- Tactical Special-Purpose UAVs
- High-Altitude Reconnaissance Systems
- Aerospace Exploration Equipment
- Extreme-Environment Robotics
Accessories & Customization
Low-Temp Optimization: Cell architecture is specifically tuned for electrolyte mobility and high ion conductivity at sub-zero temperatures.
Custom Form Factors: Alternative dimensions and specific tab orientations can be provided for unique mission-critical airframes.
Validation Reports: Detailed low-temperature discharge curve data and safety certifications are available upon verified request.
TAILORED ENERGY SOLUTIONS FOR EXTREME ENVIRONMENTS
Contact our engineering team for technical support, extreme-cold performance data, or official quotations.
