AF-SC-R05 Silicon Carbon Material
High-Capacity Anode Material with 2380+ mAh/g Reversible Capacity
Product Overview
The AF-SC-R05 is a high-performance Silicon Carbon material engineered as an anode for lithium-ion batteries. It is characterized by extreme capacity and excellent cycle stability, making it suitable for high-demand applications including power batteries and energy storage systems (ESS).
Physicochemical Test Indicators
| Test Item | Unit | Measured Value | Test Equipment |
|---|---|---|---|
| MORPHOLOGY & PHYSICAL PROPERTIES | |||

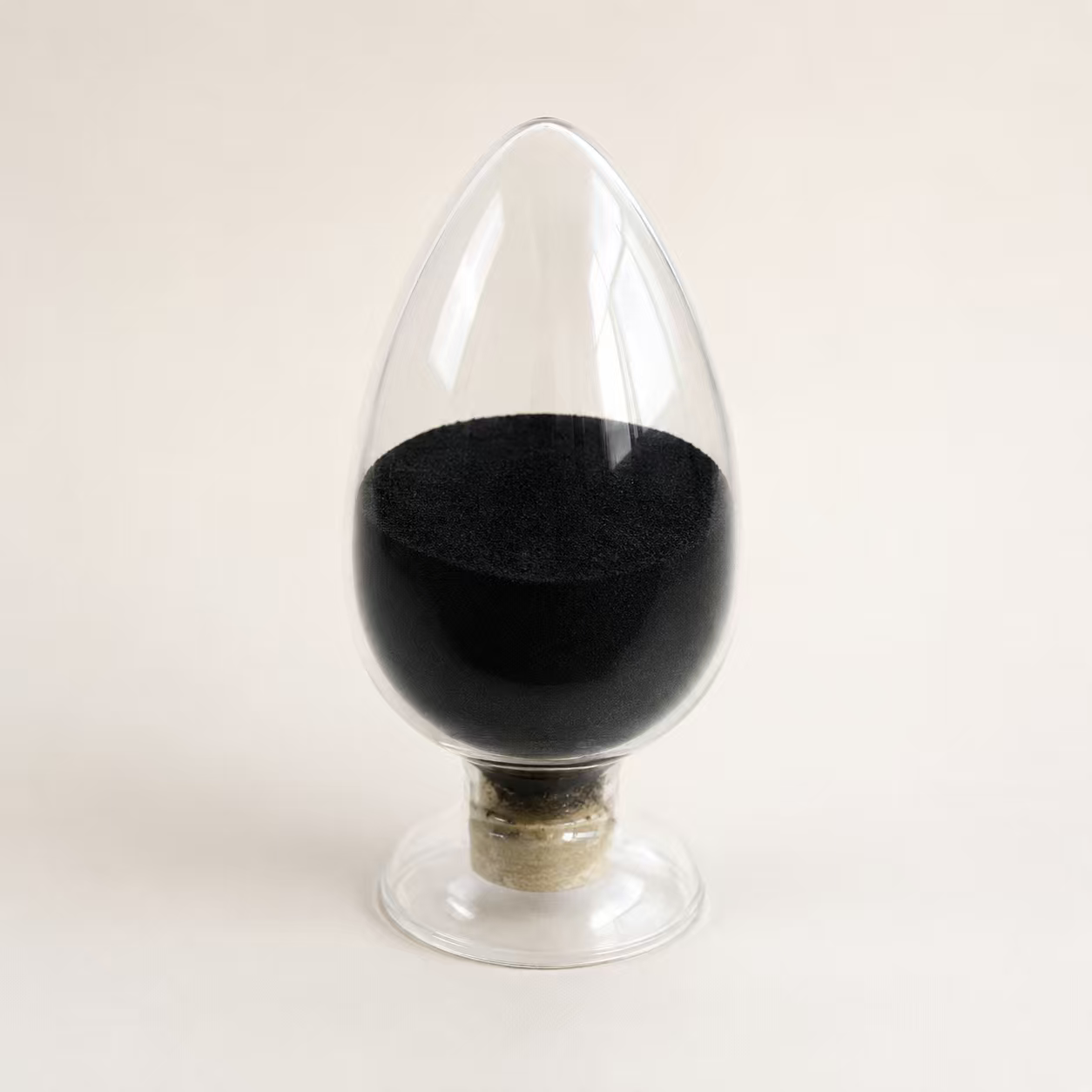

| Appearance | / | Black Powder | Visual Inspection |
| Particle Size (D10 / D50 / D90) | μm | 4.152 / 6.781 / 11.403 | Mastersizer 3000 |
| Span (Distribution Width) | / | 1.07 | / |
| Powder Compaction Resistivity (20MPa) | Ω·cm | 1.95 | PRCN-3100 |
| Compaction / Tapped Density | g/cm³ | 1.07 / 1.07 | PRCN-3100 / BT-312 |
| Specific Surface Area (BET) | m²/g | 1.70 | Tristar II Plus 3030 |
| ELECTROCHEMICAL PERFORMANCE (0.1C) | |||
| Reversible Capacity (2V) | mAh/g | 2381 | Blue Electric CT3002A |
| Initial Efficiency (2V) | % | 94.56% | Blue Electric CT3002A |
| Reversible Capacity (0.8V) | mAh/g | 2140 | Blue Electric CT3002A |
| Efficiency (0.8V) | % | 84.99% | Blue Electric CT3002A |
Core Features & Advantages
Industry-Leading Capacity
Delivers an exceptional 2V reversible capacity of 2381 mAh/g, significantly boosting battery energy density.
Superior First-Cycle Efficiency
Achieves 94.56% initial efficiency (2V), ensuring high utilization of lithium ions within the cell system.
Stable Physical Structure
A low specific surface area (1.70 m²/g) minimizes side reactions with electrolytes, enhancing cycle life stability.
Optimized Particle Size
A D50 of 6.781μm provides an ideal balance for slurry consistency and electrode coating density.
Application Scope
- Power Batteries: Ideal for high-range EVs and power tools.
- Energy Storage: Suitable for grid and renewable energy storage systems.
- Advanced R&D: Perfect for next-generation silicon-carbon anode research.
- Consumer Electronics: High-density power for mobile devices.
Technical Interpretation
UPGRADE TO HIGH-CAPACITY SILICON CARBON
Request technical data sheets or a bulk quotation for the AF-SC-R05 anode material.
Brand: ATOMFAIR®
