Description
Product Overview
- General Cylindrical Mold: A common pressure-forming mold used in laboratories, fully customizable to user requirements.

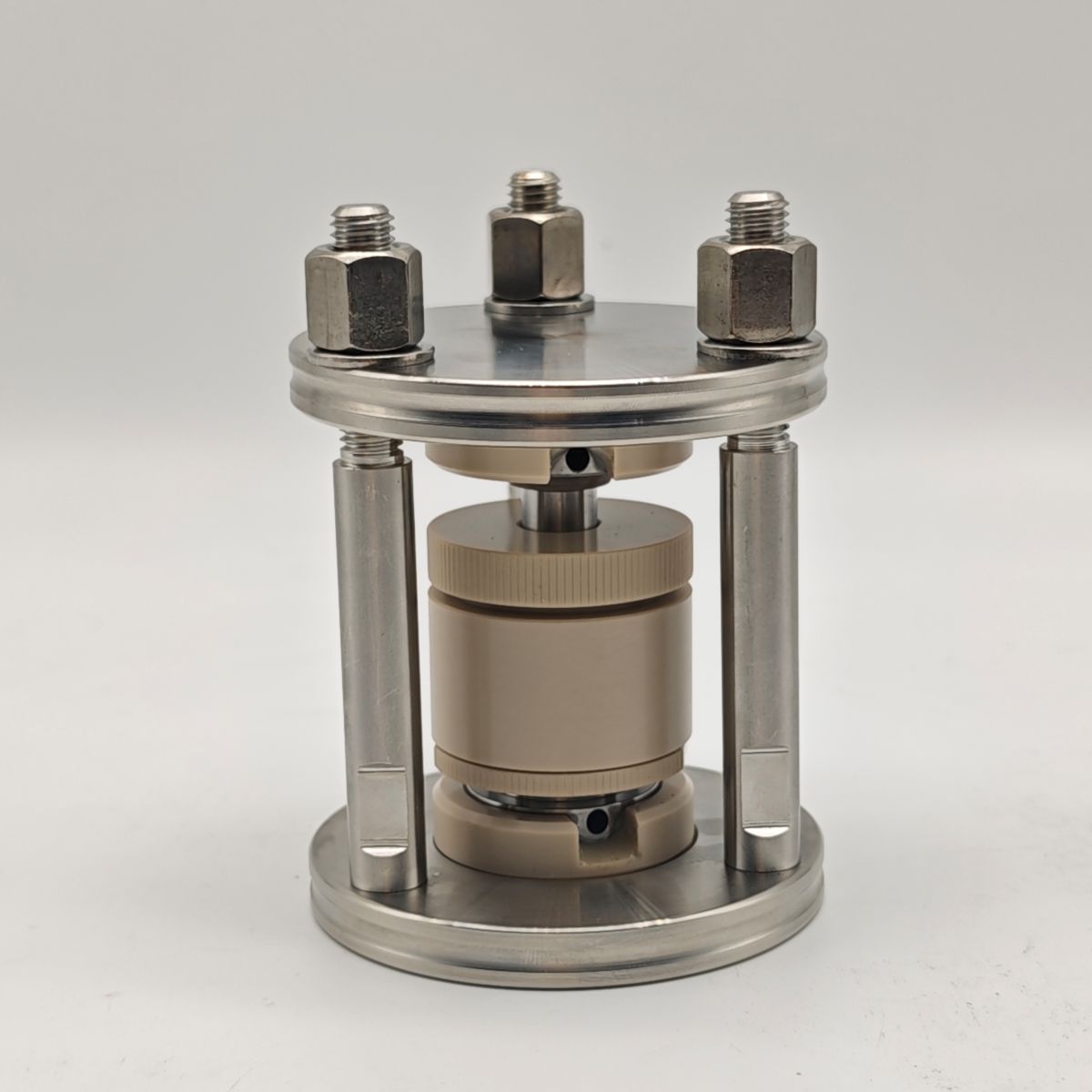

- Pressure-Controllable Battery Mold : The sleeve and gasket compression nut are made of PEEK material with high mechanical strength and corrosion resistance. It features simple operation, can form a detachable solid-state battery measurement device with a pressure-controllable battery fixture, and is used with small mechanical or manual pressurization devices. This product is designed to study the performance of battery materials under different pressure conditions.
Product Technical Parameters
| Item | Specifications |
|---|---|
| Product Dimensions | Ø70 mm × 94 mm |
| Metal Frame | Stainless Steel |
| Electrode Post Material | High-strength die steel (mirror-polished head) |
| Outer Protective Shell | Imported PEEK |
| Inner Test Sleeve | Ceramic (standard 10 mm, customizable 5–20 mm, inner hole roughness Ra 0.08) |
| Application | All-Solid-State Lithium Batteries |
| Withstand Pressure | 0–6 T |
| Temperature Limit | 210 °C |
Product Features
-
Ceramic Sleeve
High temperature resistance, no powder adhesion, easy to clean, durable and stable.
-
Mirror Polished Electrode Head
Smooth polished surface, even force distribution, low adhesion, easy to clean.
-
Sealing Structure
Dual protection with thread + sealing ring, tight and reliable; testing can be performed directly in air.
-
Modular Design
Fast assembly, convenient disassembly, higher operation efficiency.
Usage & Maintenance Notes
- Before each use, wipe the mold surface with cleanroom paper to remove anti-rust oil and avoid affecting test results.
- Position the mold at the center of the tablet press; do not exceed the mold’s rated pressure during pressurization.
- For viscous metal powders (e.g., aluminum, magnesium, zinc), use an appropriate lubricant to reduce friction during compression.
- After use, clean the sample residue from the mold promptly to prevent corrosion. For long-term storage, clean and dry the mold with anhydrous ethanol, apply anti-rust oil, and store in a dry environment.
Application Scenarios
- Directly place electrode sheets, separators, and electrolyte into the center of the mold sleeve; no screws are required for operation.
- Place the entire assembly into a press for pressurization (presses are available for purchase).
- Connect the tabs to a battery analyzer.
- High-throughput battery measurement kits can be customized according to customer requirements.
