Description

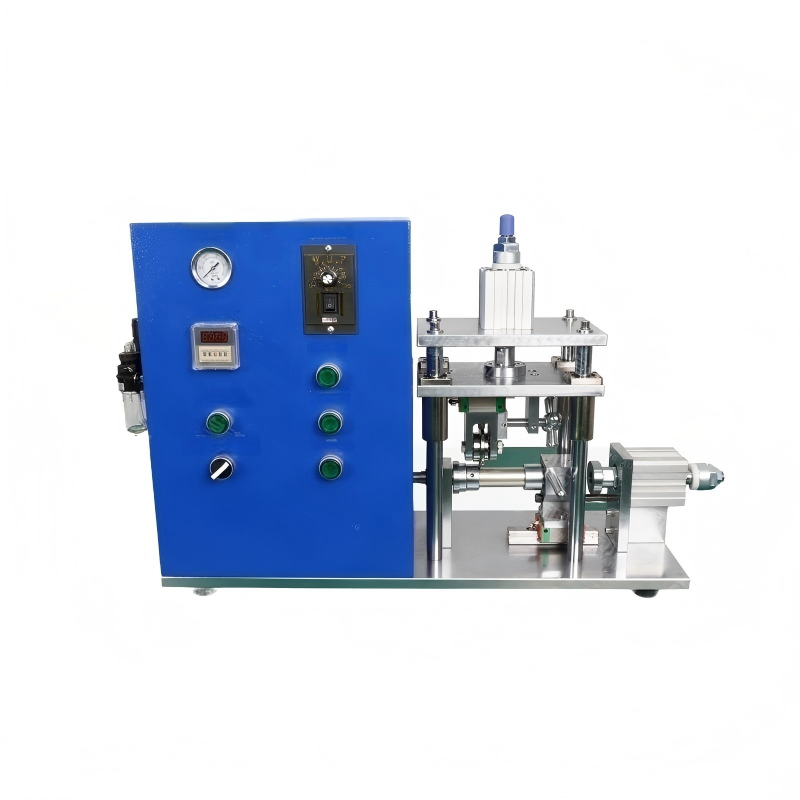

Atomfair Semi-automatic Cylindrical Cell Grooving Machine
Model: Atomfair‑SCG357
Launch Date: 2024‑01‑27
Version: V2.0
Dimensions: 600×450×350 mm
Net Weight: 35 kg
Application Scope
Suitable for uniform automatic grooving of cylindrical steel shells (or capacitor aluminum shells) with cells installed.
Standard configuration compatible with 18650 models; various cylindrical batteries can be processed by replacing part of the fixtures.
Product Description
This machine is used for uniform automatic grooving of cylindrical steel shells / capacitor aluminum shells with cells installed.
Equipped with standard 18650 molds; multiple specifications of cylindrical batteries can be grooved by replacing part of the tooling fixtures.
Features
- Adjustable grooving size, high precision and stable dimension
- Capable of grooving various specifications of cylindrical batteries
- Compact size, safe, reliable and aesthetic appearance
Technical Parameters
| Item | Specification |
|---|---|
| Grooving Depth | 1.2–2.0 mm (adjustable) |
| Grooving Width | 1.1–1.5 mm (depending on hob thickness) |
| Processing Accuracy | ±0.1 mm |
| Hob Life | > 1,000,000 cycles |
| Capacity | 400 pcs/h (semi-automatic) |
| Power Supply | AC220V/50Hz |
| Power | 140W |
| Compressed Air | 0.5MPa–0.7MPa |
| Dimensions | 600×450×350 mm |
| Net Weight | 35 kg |
