Description

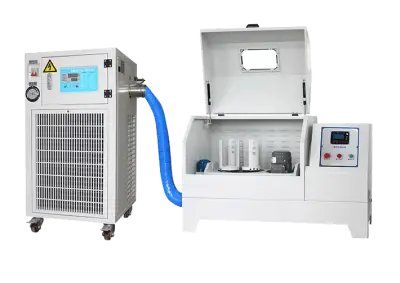

Low Temperature Planetary Ball Mill
Product Introduction
Low temperature planetary ball mill is a combined equipment of planetary ball mill and refrigeration device. During high-speed grinding, most materials will heat up due to friction or exothermic reactions, which may alter the physical and chemical properties of materials and produce negative grinding effects. Low temperature planetary ball mill is mainly used for material grinding processes requiring strict temperature control.
Operating Principle of Planetary Ball Mill
Four grinding jars are installed on the main disc of the planetary ball mill. When the motor drives the main disc to rotate, the grinding jars revolve around the main disc axis and rotate simultaneously driven by the planetary mechanism, performing planetary motion. The grinding balls inside the jars rub and collide with each other under high-speed planetary motion, enabling efficient sample grinding and mixing.
Product Application
Low temperature planetary ball mill is widely used in geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other fields.It is suitable for the production of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganate, catalysts, fluorescent powders, long afterglow luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, thermistors (PTC, NTC), zinc oxide varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, fluorescent powders, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrites, Mn-Zn ferrites and other products.
Product Features
Low temperature planetary ball mill is a combined equipment of planetary ball mill and air cooling device. The air cooling unit adopts the air-conditioning compression refrigeration principle, and the cold air circulation quickly removes heat generated during grinding. According to ambient temperature differences, the temperature of the grinding chamber can be controlled at 5–15℃. It is mainly used for ultra-fine grinding of materials under low-temperature processes. The air cooling device features simple structure, convenient operation, easy maintenance and low energy consumption.
Technical Parameter Table of Planetary Ball Mill
| No. | Model | Style | Grinding Jar Rotation Speed | Grinding Jar Holder ID (mm) | Motor Power | Jar Revolution Diameter (mm) | Overall Dimensions (mm) | Net Weight (kg) |
| 1 | XQM-0.2 | Mini Type | 0~1160 r/min | 50 | 90W | Φ111 | 420×260×310 | 25 |
| 2 | XQM-0.2S | Mini Glove Box Type | 0~1160 r/min | 50 | 90W | Φ111 | Unit: 390×220×270Control Box: 200×180×240 | 29 |
| 3 | XQM-0.4A | Half-Round Type | 0~870 r/min | 80 | 250W | Φ140 | 530×300×360 | 34 |
| 4 | XQM-6 | — | 0~670 r/min | 134 | 0.75KW | Φ234 | 760×470×580 | 100 |
| 5 | XQM-4A | Half-Round Type | 0~670 r/min | 134 | 0.75KW | Φ234 | 760×470×600 | 85 |
| 6 | XQM-(8-12) | — | 0~580 r/min | 162 | 1.5KW | Φ275 | 900×600×640 | 168 |
| 7 | XQM-(8-12)A | Half-Round Type | 0~580 r/min | 162 | 1.5KW | Φ275 | 880×560×642 | 150 |
| 8 | XQM-16A | Half-Round Type | 0~510 r/min | 182 | 3KW | Φ320 | 950×600×710 | 205 |
| 9 | XQM-20 | — | 0~430 r/min | 222 | 4KW | Φ385 | 1200×790×930 | 392 |
| 10 | XQM-40 | — | 0~390 r/min | 250 | 5.5KW | Φ430 | 1400×880×1070 | 656 |
| 11 | XQM-60 | — | 0~260 (1:1.5) r/min | 275 | 7.5KW | Φ490 | 1600×1070×1250 | 950 |
| 12 | XQM-100 | — | 0~240 (1:1.5) r/min | 326 | 11KW | Φ578 | 1750×1140×1330 | 1300 |
| 13 | XQM-200 | — | 0~215 r/min | 460 | 22KW | Φ738 | 2670×1600×2804 | 2725 |
General Technical Parameters
| Parameter | Specification |
| Transmission Mode | Gear drive |
| Working Mode | Two or four grinding jars working simultaneously |
| Maximum Loading Capacity (Material + Grinding Balls) | Two-thirds of the grinding jar volume |
| Grinding Jar Volume | 5L–50L per jar, total volume 20L–200L |
| Feed Particle Size | Soil material ≤10mm, other materials ≤3mm |
| Discharge Particle Size | Minimum up to 0.1μm (varies with different materials and grinding processes) |
| Speed Ratio (Revolution : Rotation) | Refer to main parameters of planetary ball mill |
| Rotation Speed | Refer to main parameters of planetary ball mill |
| Speed Control Mode | Stepless speed regulation by brand frequency converter |
Working Principle
Low temperature planetary ball mill is a combined equipment of planetary ball mill and refrigeration device. During high-speed grinding, most materials will heat up due to friction or exothermic reactions, which may alter the physical and chemical properties of materials and produce negative grinding effects. Low temperature planetary ball mill is mainly used for material grinding processes requiring strict temperature control.
Supporting Products
We also supply various grinding balls: stainless steel balls, zirconia balls, alumina balls, PU balls, carbon steel balls, tungsten balls, agate balls, cemented carbide balls, silicon nitride balls, high wear-resistant steel balls, manganese steel balls, nylon balls, cemented carbide, glass and other special metal materials.
We also provide grinding jars of various materials: agate, alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, silicon carbide ceramics, stainless steel, wear-resistant steel, manganese steel, nylon, polyurethane, cemented carbide, crystal glass, etc.”
