Description

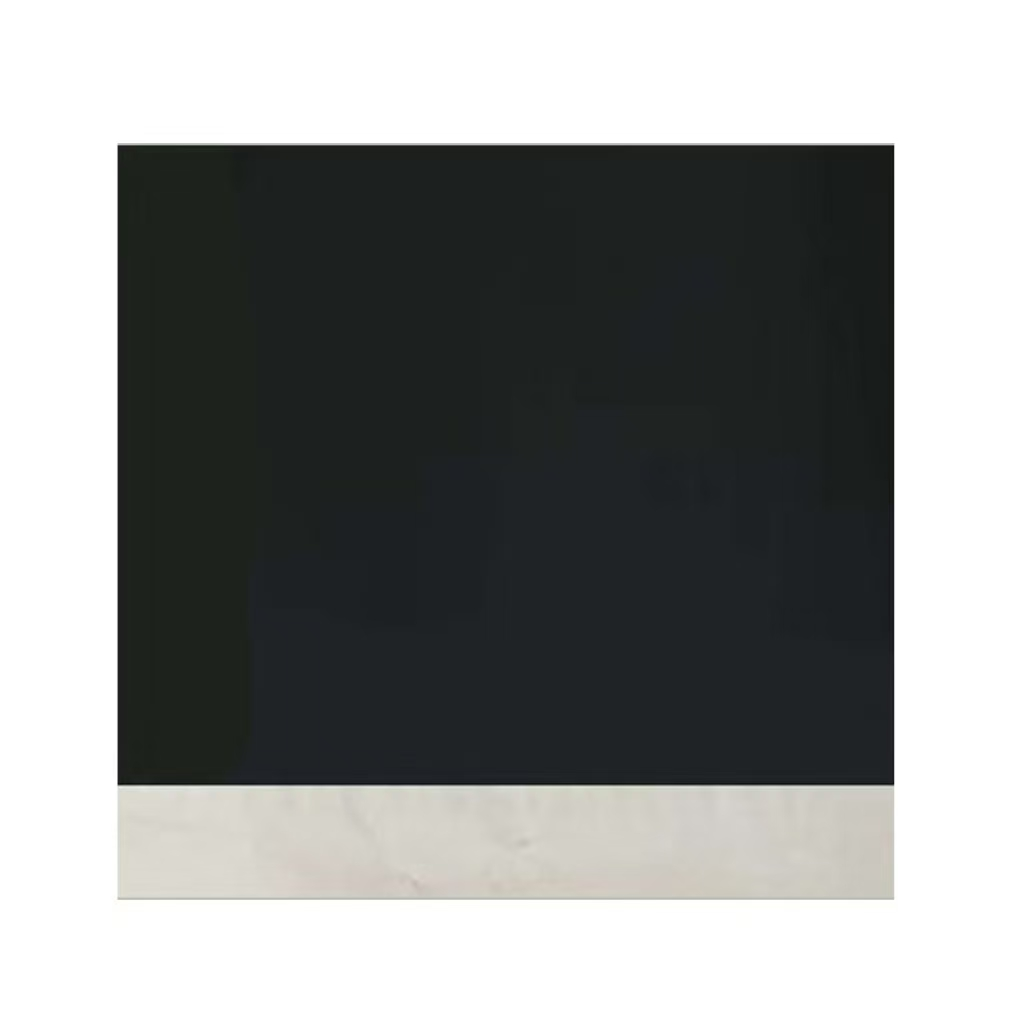

Atomfair NCM811-D04 lithium nickel cobalt manganese oxide (NCM811) Electrode Sheet: Double side coated with 60 mg/cm² via dry process. Ideal for Lithium-ion battery R&D. Pack includes 5 sheets, ensuring consistent quality for lab testing and material evaluation. Reliable for electrochemical performance analysis.
This NCM811 (lithium nickel cobalt manganese oxide) coated aluminum foil can be customized upon request, such as coating thickness/width, and aluminum foil thickness/width. Please feel free to contact us to specify your exact requirements.
Electrode Sheet Design Parameters
| Parameter | Value |
| Product code | D04 |
| Coating material | NCM811 |
| Active material ratio | 96.0% |
| Coating density | 60 mg/cm² |
| Coating area | 90*120 mm |
| Coating Type | Double-sided |
| Substrate material | Carbon-coated aluminum foil |
| Current collector areal density | 4.4 mg/cm² |
| Substrate thickness | 12 +0.5 +0.5 μm |
| Substrate size | 90*140 mm |
| Compaction Density | 3.0 g/cm³ |
| Capacity | 200 mah/g |
| Coating Process | Dry Process |
| Pack Size | 5 sheets/pack |
FAQ
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
Disclaimer: Sold exclusively for laboratory research.
