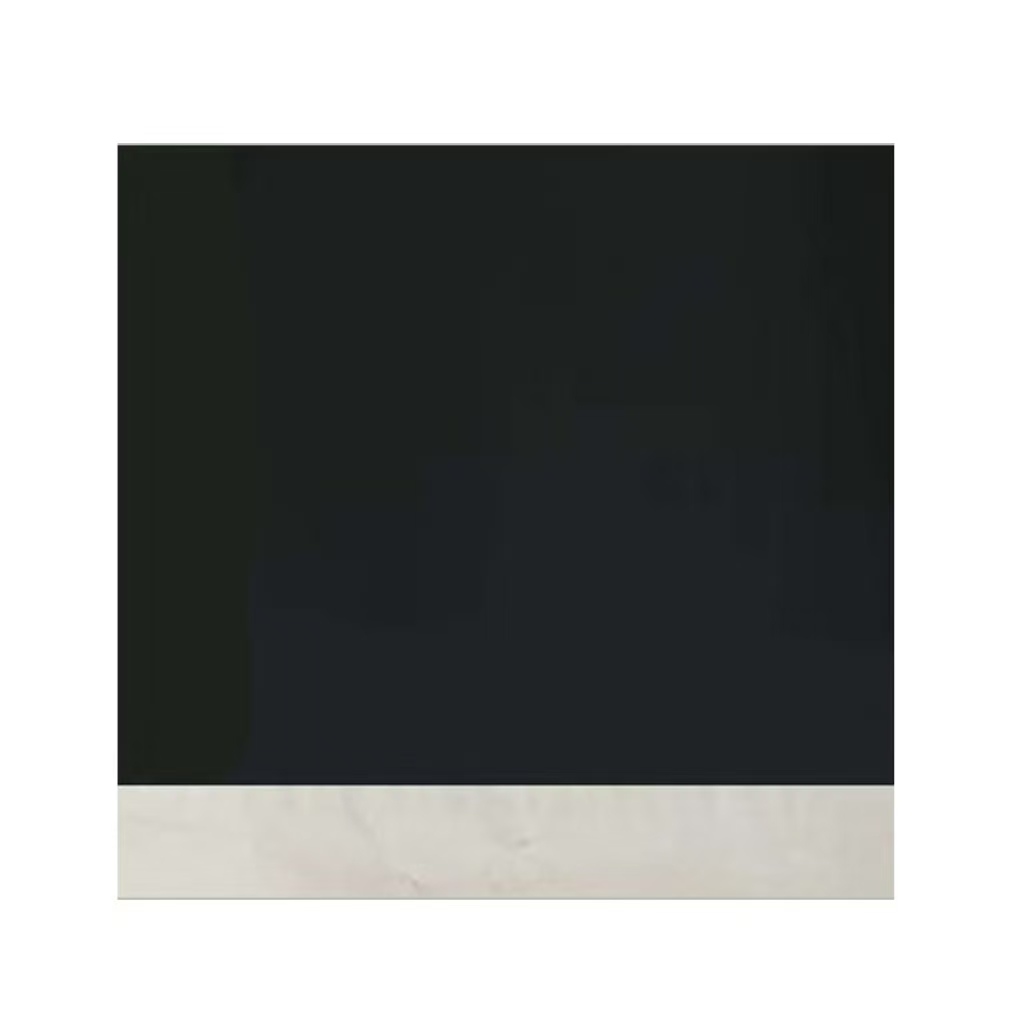

Atmofair NVP-S03 Sodium Vanadium Phosphate Electrode Sheet – Single Side Coating, 20 mg/cm², Dry Process, 5 Pack Sheets
Atmofair NVP-S03 Sodium Vanadium Phosphate Electrode Sheet – Single Side Coating, 20 mg/cm², Dry Process, 5 Pack Sheets - Image 2
Atmofair NVP-S03 Sodium Vanadium Phosphate Electrode Sheet – Single Side Coating, 20 mg/cm², Dry Process, 5 Pack Sheets - Image 3
Atmofair NVP-S03 Sodium Vanadium Phosphate Electrode Sheet – Single Side Coating, 20 mg/cm², Dry Process, 5 Pack Sheets - Image 4

Atmofair NVP-S03 Sodium Vanadium Phosphate Electrode Sheet – Single Side Coating, 20 mg/cm², Dry Process, 5 Pack Sheets

This electrode offers a medium active material loading of 20 mg/cm² using the wet coating process. It maintains a high active material content and consistent compaction.

Category: ,
Tags: , , , ,
Brands:

Description

Atmofair NVP-S03 Sodium Vanadium Phosphate Electrode Sheet: Single side coated with 20 mg/cm² via dry process. Ideal for sodium-ion battery R&D. Pack includes 5 sheets, ensuring consistent quality for lab testing and material evaluation. Reliable for electrochemical performance analysis.

This NVP (Sodium Vanadium Phosphate) coated aluminum foil can be customized upon request, such as coating thickness/width, and aluminum foil thickness/width. Please feel free to contact us to specify your exact requirements.

Electrode Sheet Design Parameters

Parameter Value
Product code S03
Coating material NVP
Active material ratio 94.50%
Coating density 20 mg/cm²
Coating area 120*90 mm
Coating Type Single-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 4.2mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 90*140 mm
Compaction Density 1.5g/cm³
Capacity 110 mah/g
Coating Process Dry Process
Pack Size 5 sheets/pack

FAQ

Q: How is the electrode sheet baking time determined?
A: It is 12 hours under vacuum baking at 100°C.

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.

Disclaimer: Sold exclusively for laboratory research.
