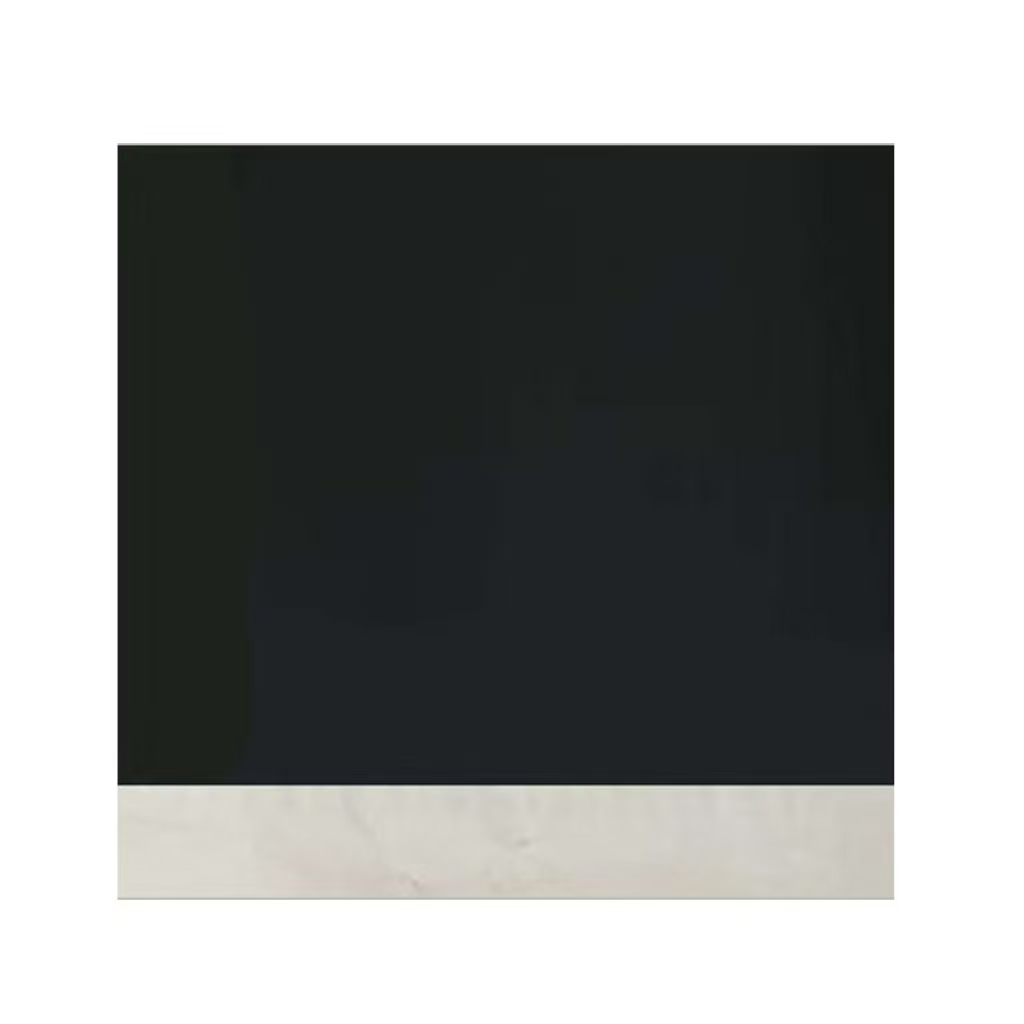

Atmofair NFPP-D05 Sodium Iron Phosphate Pyrophosphate Electrode Sheet - Double Side Coating, 62 mg/cm², Dry Process, 5 Pack Sheets
Atmofair NFPP-D05 Sodium Iron Phosphate Pyrophosphate Electrode Sheet - Double Side Coating, 62 mg/cm², Dry Process, 5 Pack Sheets - Image 2

Atmofair NFPP-D05 Sodium Iron Phosphate Pyrophosphate Electrode Sheet – Double Side Coating, 62 mg/cm², Dry Process, 5 Pack Sheets

A balanced double-side electrode with 62 mg/cm² areal density and wet process coating. It features a specific compaction density suitable for various applications.

Category:
Tags: , ,
Brands:

Description

Atmofair NFPP-S05 Sodium Iron Phosphate Pyrophosphate Electrode Sheet: Double side coated with 62 mg/cm² via dry process. Ideal for sodium-ion battery R&D. Pack includes 5 sheets, ensuring consistent quality for lab testing and material evaluation. Reliable for electrochemical performance analysis.

This NFPP (Sodium Iron Phosphate Pyrophosphate) coated aluminum foil can be customized upon request, such as coating thickness/width, and aluminum foil thickness/width. Please feel free to contact us to specify your exact requirements.

Electrode Sheet Design Parameters

Parameter Value
Product code S05
Coating material NFPP
Active material ratio 94.50%
Coating density 62mg/cm²
Coating area 90*120 mm
Coating Type Double-sided
Substrate material Carbon-coated aluminum foil
Current collector areal density 4.4mg/cm²
Substrate thickness 12 +0.5 +0.5 μm
Substrate size 90*140 mm
Compaction Density 2.3g/cm³
Capacity 95 mah/g
Coating Process Dry Process
Pack Size 5 sheets/pack

FAQ

Q: How is the electrode sheet baking time determined?
A: It is 12 hours under vacuum baking at 100°C.

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.

Disclaimer: Sold exclusively for laboratory research.
