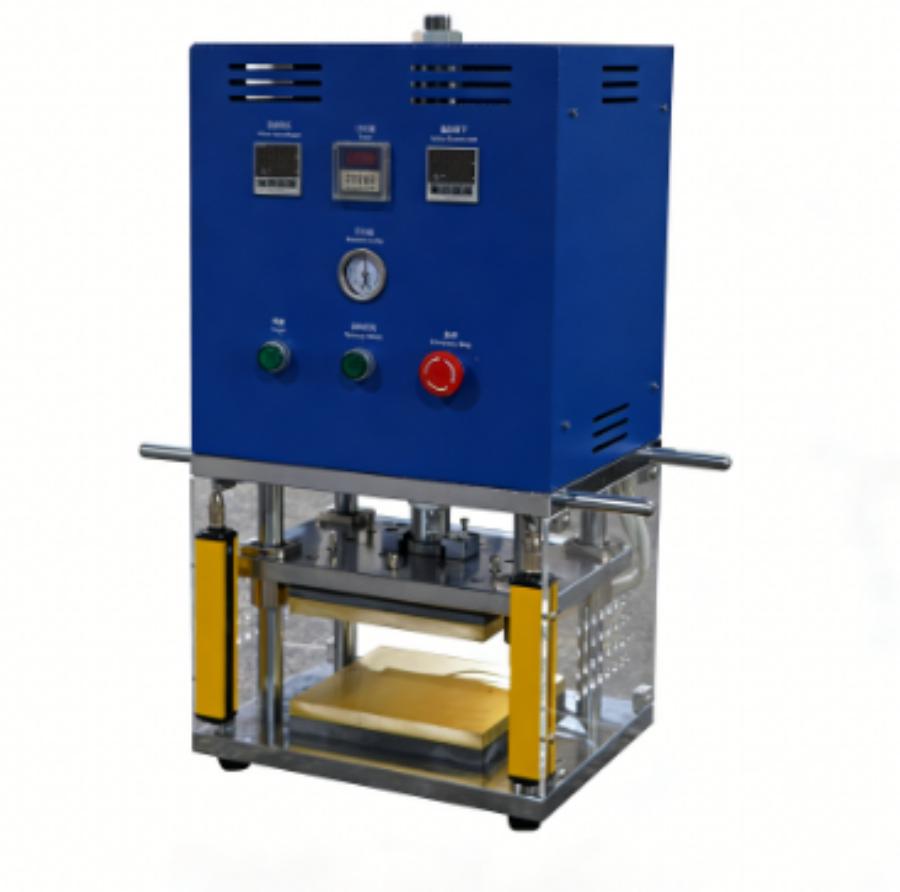

Atomfair Semi-automatic Aluminum-plastic Film Forming Machine

Model: Atomfair-APM682
Launch Date: 2022-03-12

1. Application Scope

This machine is suitable for the shell punching forming of aluminum-plastic film for soft-pack lithium batteries.

2. Working Principle

The equipment adopts the principle of a booster cylinder to convert a small air source pressure into a larger hydraulic output, driving the mold to complete the shell punching forming of aluminum-plastic film.

3. Functional Features

• Simple and quick adjustment of stretching depth
• Convenient and quick mold replacement
• No fish tail lines or collapsed corners at the four corners and edges of the formed product
• Four guide pillar structure, smooth up and down sliding with high precision
• Equipped with light curtain, double-button operation and outer cover protection for safe use
• Deeper and more stable stretching for aluminum-plastic film of the same quality compared with similar products
• Easy operation, safe and reliable, beautiful appearance, small volume

4. Technical Parameters

Item	Specification
Applicable Size	Max Length 300mm × Width 280mm (Customizable as required)
Booster Cylinder	5T, Pressure Adjustable
Counting Method	Counter Display
Power Supply	AC220V/50Hz
Power	100W
Air Source Pressure	0.5MPa±0.7MPa
Equipment Weight	Approx. 180kg
Equipment Dimensions	Approx. 560×420×925mm (Length × Width × Height)
Mold/Core Roughness	0.4 (Mirror Polishing)
Upper and Lower Mold Flatness	0.02mm
Core Flatness	0.02mm
Max Punching Depth	6mm (Related to tensile strength and quality of aluminum-plastic film)

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
