Description

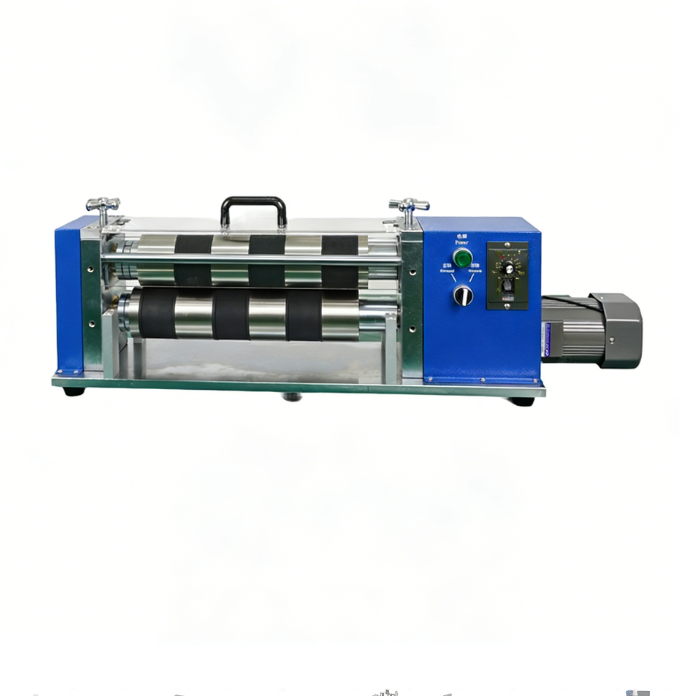

Lithium Ion Battery Electrode Slitting Machine

Product Model: Atomfair-Slitter586

Product Application

It is mainly used for the rolling, slitting and cutting of positive and negative electrode sheets after lithium-ion battery coating. The cutting edge is neat, ensuring dimensional accuracy.

Functional Features

• • Adjustable guiding device for feeding positioning;
  • Adopting electric rolling slitting method;

• Adjustable meshing amount;
• Upper and lower blades run at the same speed with synchronous transmission;
• An organic glass protective device is configured at the rolling knife for safe operation;
• Open-type rolling knife fixing method, easy to disassemble the rolling knife;
• High slitting accuracy and reliable work;
• The die-cut products have small burrs, no powder falling, no indentation and other appearance defects;
• Simple operation, safe and reliable, beautiful appearance and small volume.

Technical Parameters

Parameter Item	Specification
Cutter Type	Upper and Lower Circular Knife Opposite Cutting
Cutter Width	20±200mm
Cuttable Thickness	80-200μm Battery Electrode Sheet
Cut Burr Condition	≤25μm
Cutter Diameter	100mm
Slitting Speed	Max 4m/min, Stepless Speed Regulation
Power Supply	AC220V/50Hz
Power	200W
Overall Dimension	Length 750 × Width 920 × Height 400 (mm)
Weight	About 80KG

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
