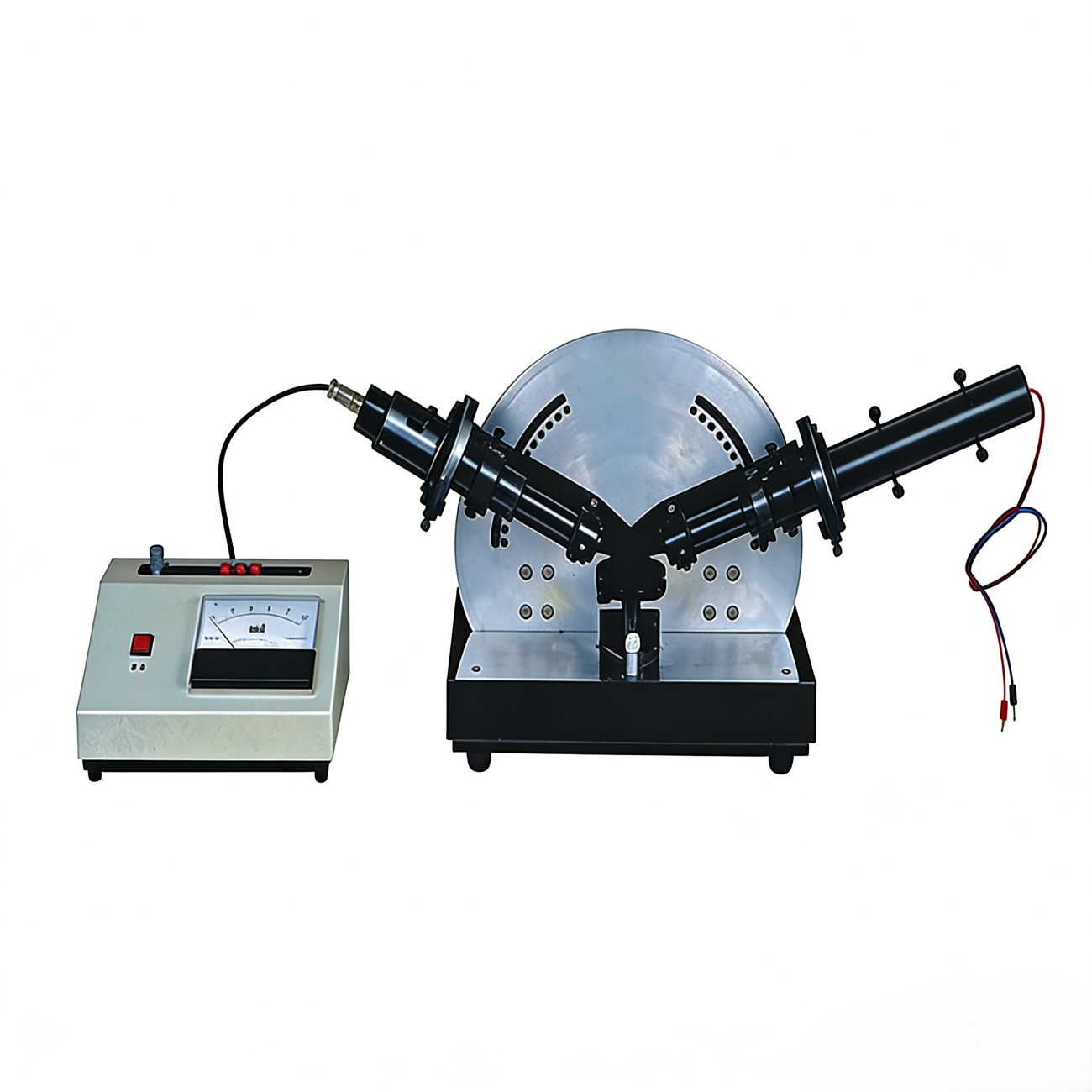

Atomfair-EP108 Ellipsometric Thickness Gauge
Product Basic Information
Product Name: Atomfair Ellipsometric Thickness Gauge
Product Type: Measuring Instrument
Product Overview
With the development of multiple disciplines in modern science and technology, the research and application of various thin films have become increasingly widespread, and the demand for accurate measurement of thin film thickness and optical parameters has become more and more urgent. This product adopts the ellipsometry method for measurement, which boasts the advantages of high sensitivity and precision. As a non-destructive measurement technique, it can simultaneously determine the thickness and refractive index of thin films.
The instrument features manual adjustment, clearly demonstrating the structural functions and adjustment methods of each component of the ellipsometric thickness gauge. It helps users deeply understand the principle and structure of the ellipsometer while cultivating their hands-on operational capabilities.
Core Configuration & Specifications
| No. | Item | Specification |
| 1 | Measurement Range | 1nm – 300nm |
| 2 | Minimum Measurable Value | ≤1nm |
| 3 | Incident Angle | 30°±90°, Error ≤0.1° |
| 4 | Polarizer Azimuth Reading Range | 0°±180° |
| 5 | Dial Scale | 2° per division |
| 6 | Minimum Vernier Reading | 0.05° |
| 7 | Optical Center Height | 152mm |
| 8 | Workbench Diameter | 70mm |
| 9 | Overall Dimensions | 730mm×230mm×290mm |
| 10 | Main Unit Weight | 20kg |
Application & Target Users
Application Scenarios
Ideal for scenarios requiring precise measurement of thin film thickness and optical parameters, including but not limited to scientific research experiments, industrial production quality control, thin film material development, and related technical research fields. It can be adapted according to specific practical needs.
Target Users
Scientific research institutions engaged in thin film material research, including universities, research academies, and specialized material science laboratories.
Enterprises involved in thin film production and processing, such as electronic component manufacturers, optical film producers, semiconductor device fabricators, and coating technology companies.
R&D departments and quality inspection teams in industries related to thin film applications, seeking reliable and accurate thin film measurement solutions.
