Description

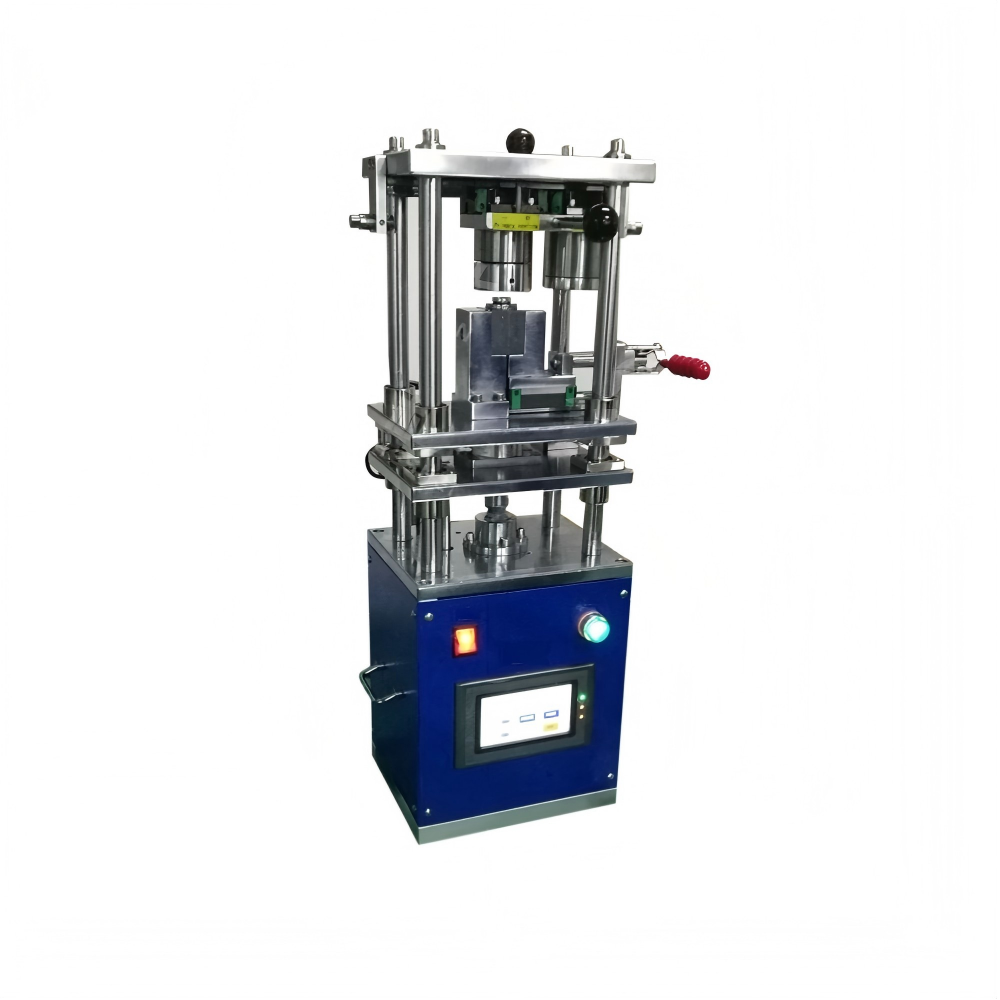

Atomfair Automatic Cylindrical Cell Crimping Machine

Model: Atomfair?CCC519
Launch Date: 2022?03?09
Version: V2.0
Dimensions: L550 ? W400 ? H1250mm
Weight: Approx. 205KG

Application Scope

This machine is designed for automatic crimping and automatic feeding & discharging of cylindrical lithium-ion batteries.

Product Description

It performs 1st, 2nd, and 3rd stage crimping to achieve smooth sealing edge, excellent air tightness, high dimensional accuracy, high efficiency and good consistency.

Key Features

• PLC & touch screen control, easy parameter setting, high automation.
• Three-stage crimping ensures smooth edge, high air tightness, precision and consistency.
• Precision mold design and stable steel structure for reliable and safe operation.
• Compatible with 18650, 21700, 26650 and other cylindrical batteries by changing molds.
• Attractive appearance, easy maintenance, compact size and simple operation.

Technical Parameters

Item	Specification
Standard Sealing Mold	18650 series (other sizes optional)
Max Crimping Force	3000Kg
Processing Accuracy	±0.1mm
Mold Service Life	Over 3,000,000 cycles
Capacity	6 PCS/min
Power Supply	AC220V/50Hz
Power	100W
Air Supply	0.5MPa?0.7MPa
Dimensions	L550 ? W400 ? H1250mm
Weight	Approx. 205KG

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
