Description

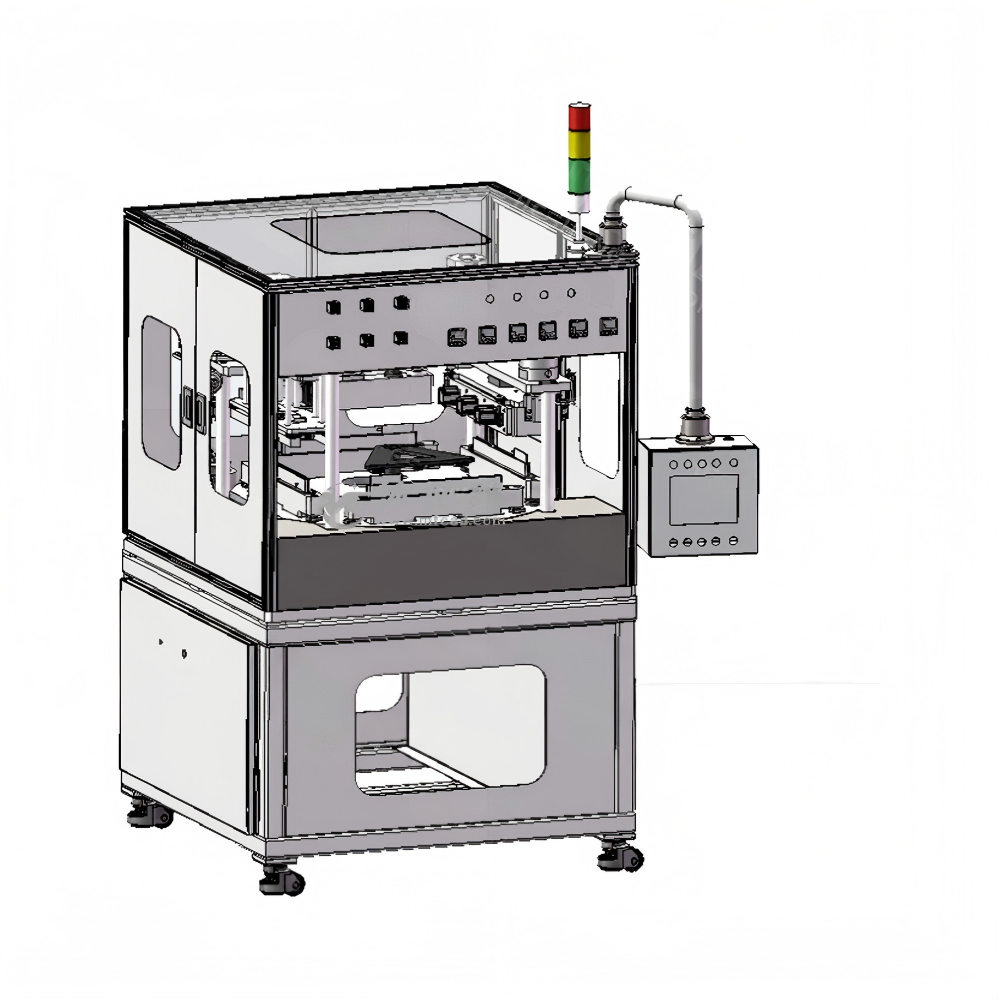

Atomfair Pouch Cell Vacuum Filling & Sealing Machine

Model: Atomfair?VFS936
Release Date: 2022?03?14
Version: V2.0
Dimensions: W1900 ? D1850 ? H1950 mm
Weight: 2.5 T

Application

For pouch cell electrolyte filling under atmospheric pressure, vacuum standing and final sealing process.

Product Description

This machine adopts a rotary table structure, integrating automatic feeding, filling, vacuum standing and vacuum sealing in one system. It is specially designed for pouch lithium?ion batteries with tabs on both ends.

Key Features

• Suitable for atmospheric filling, vacuum standing and heat pre?sealing of pouch cells, compatible with various cell sizes within a certain range.
• 4?station rotary table design: manual loading, fully automatic for all other processes.
• Precision electric piston pump ensures high filling accuracy.
• Vacuum standing station with adjustable vacuum level and time.
• Optional soft or hard sealing with uniform temperature and consistent sealing quality.
• External cover for dry gas supply, suitable for dry environment.
• Modular electric and structure design for easy maintenance.
• Optional automatic code scanning and weighing system to record cell weight before and after filling.
• Designed for pouch lithium?ion batteries with dual tabs.

Technical Parameters

• Power Supply: Single?phase 220VAC ±10% (110VAC customizable), 50/60Hz, 6KW
• Air Supply: 0.5?0.8 MPa compressed air or inert gas
• Atmosphere: Dry gas recommended, dew point ?60?, inlet/outlet 4″ (100mm)
• Filling Pump: Electric piston pump, filling accuracy 0.3%, volume and speed adjustable
• Sealing Head Temp: Max. 250?
• Temp Accuracy: ±2?
• Battery Size: Max. L150 ? W120 mm
• Seal Width: Standard 6 mm (customizable)
• Sealing Length: Max. 200 mm
• Sealing Pressure: 0.3?0.6 MPa adjustable
• Heat Sealing Time: 0?99 s adjustable, recommended 3?4 s
• Standing Vacuum: Max. ?90 KPa
• Standing Time: 0?99 s adjustable
• Dimensions: W1900 ? D1850 ? H1950 mm
• Weight: Approx. 2.5 T

If you?re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
