Description

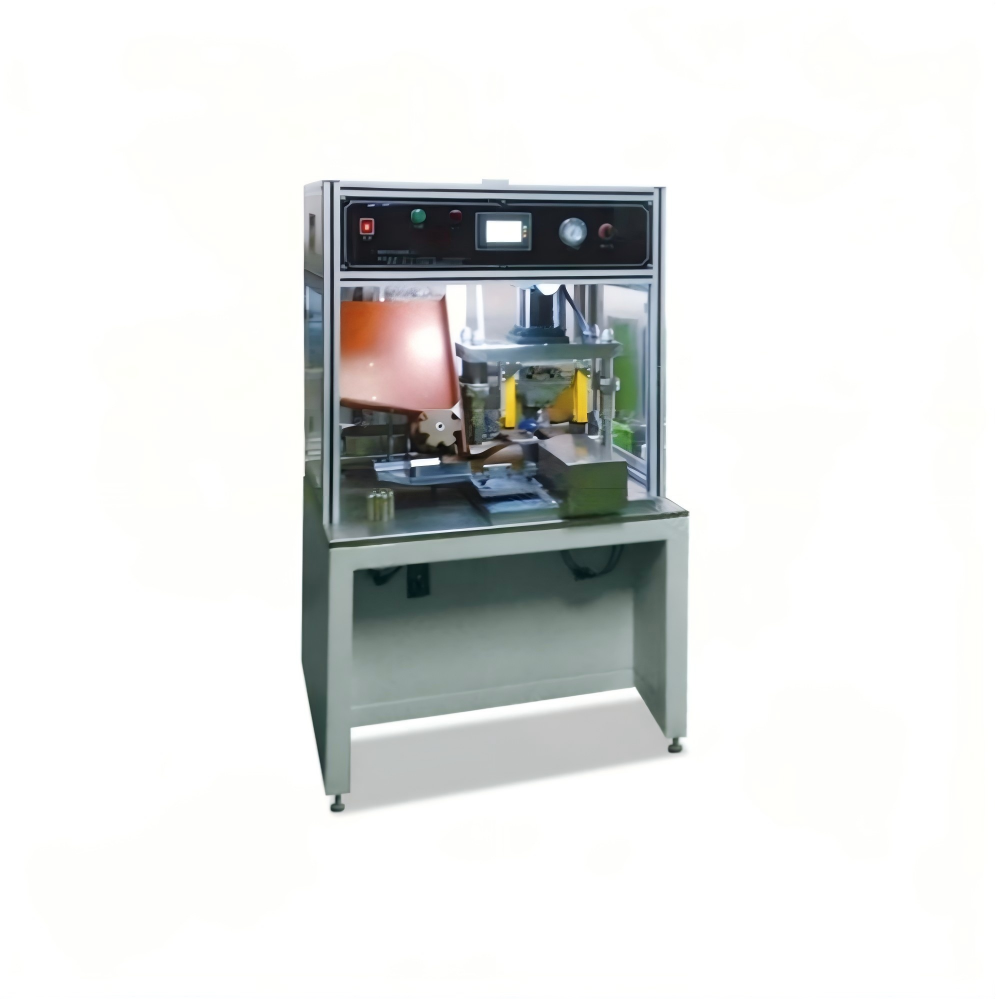

Atomfair Automatic Cylindrical Battery Sealing Machine
Model: Atomfair?CSM297
Launch Date: 2022?03?01
Version: V2.0
Dimensions: 900 (L) ? 540 (W) ? 1500 (H) mm
Weight: Approx. 150KG
Application Scope
This machine is essential equipment in cylindrical battery production and processing.
Working Description
Batteries that have undergone grooving, cell installation, electrolyte filling, and cap assembly are placed into the automatic feeding guide. After starting, the battery is automatically sent to the sealing die to complete primary, secondary, and final crimping sealing.
Key Features
- Smooth and flat sealing edge
- Excellent air tightness
- High dimensional accuracy
- High working efficiency
- Stable and consistent performance
Technical Parameters
| Item | Specification |
|---|---|
| Power Supply | AC380V, 1KW |
| Production Efficiency | 45?55 pcs/min |
| Air Pressure | ?0.6 MPa |
| Suitable Battery Diameter | ?18 mm (customizable for other sizes) |
| Suitable Battery Height | 45?65 mm |
| Max Sealing Pressure | 5000 N (adjustable with pressure gauge) |
| Sealing Die Hardness | ? HRC62 |
| Dimensions | 900?540?1500 mm |
| Weight | Approx. 150 KG |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
