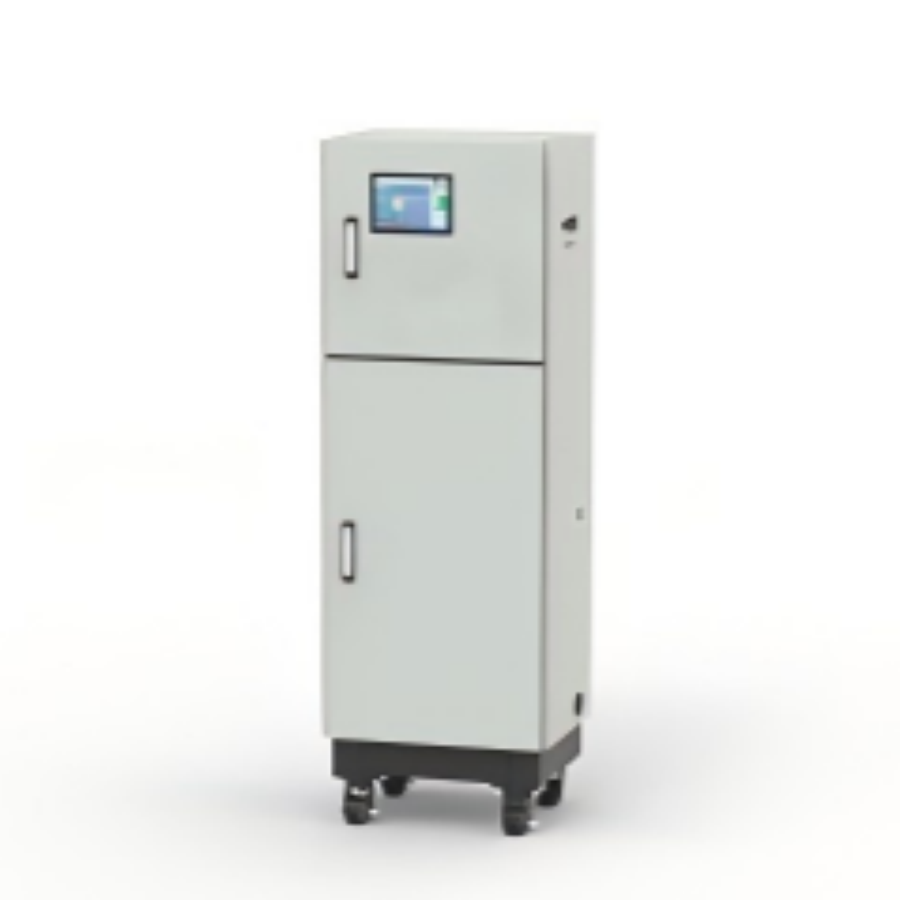

Atomfair WWT 723 Waste Liquid Treatment System
Product Overview
Atomfair WWT 723 Waste Liquid Treatment System features easy operation, convenient maintenance and high automation. It is a special equipment for professional treatment of waste acid, various heavy metals (chromium, mercury, silver, cadmium, zinc, manganese, nickel, copper, lead, etc.) and organic waste liquid. The equipment can centrally collect and treat waste liquid, with the advantages of unattended operation, continuous running and real-time discharge, providing a safe and efficient solution for waste liquid treatment in various scenarios and contributing to environmental safety protection.
Core Product Features
- Innovative design, stable and durable: The unique combination of spray design and bubble stirring technology effectively extends the service life of the equipment; the testing equipment adopts the concept of life management for safer and more stable operation; the multi-stage filtration design simplifies the maintenance process and reduces maintenance difficulty.
- Intelligent and convenient, full-process controllable: Fully automatic operation mode without manual intervention to realize unattended operation; equipped with a variety of intuitive analysis tables, the whole process of waste liquid treatment is clearly visible for easy monitoring; compatible with waste liquid of different concentrations and different workload requirements, suitable for multi-scenario work.
- Economical and cost-saving, worry-free use: All required reagents are standard universal type without potential safety hazards and easy to purchase; low replacement frequency of consumables, simple replacement operation and low cost, effectively controlling the use cost.
Working Principle
Adopt chemical treatment method, add a variety of reagents successively under different conditions to convert heavy metal ions in waste liquid into precipitation; adjust the pH value of effluent to 6-9 at the same time. The treated wastewater is filtered by multi-stage physical filters to remove precipitation in water and absorb water color, and finally sterilized by ultraviolet lamp irradiation to ensure the treated wastewater meets the discharge standard.
Technical Parameters
| Technical Index | Specific Parameter |
|---|---|
| Concentration after total chromium removal | <1.5mg/L |
| Concentration after hexavalent chromium removal | <0.5mg/L |
| Concentration after total silver removal | <0.5mg/L |
| Concentration after total mercury removal | <0.05mg/L |
| Heavy metal removal rate | 99.9% (Note: The removal rate can reach this standard when the concentration of heavy metal ions is 100 times higher than the discharge concentration) |
| Effluent pH value | 6-9 |
| Running noise | <65dB |
| Turbidity of treated wastewater | <150DTU |
| Colority of treated wastewater | <80 degree |
| Single treatment capacity | 250ml/400ml |
| Single treatment time | 55-70min |
| Insulation resistance | Not less than 20MΩ/500V |
| Dielectric strength | AC 1500V, 50Hz for 1min without flashover and breakdown |
| Overall dimension | 600×500×1700mm |
| Power supply specification | 220V/50Hz |
| Communication interface | RS485 |
