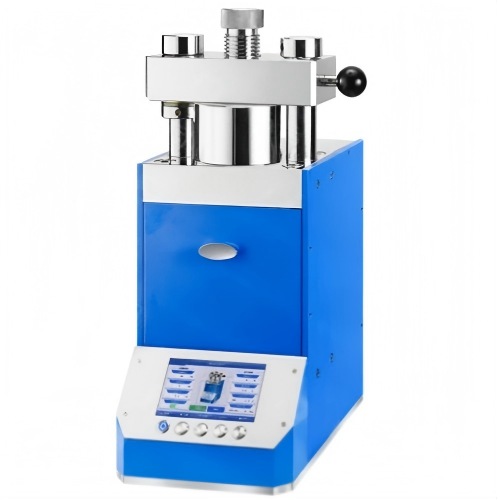

Atomfair Series Automatic Warm Isostatic Press Product Information

Optional Product Model: Atomfair-WIP5128

1. Product Overview

Atomfair series automatic warm isostatic press (Warm Isostatic Press, referred to as WIP) is a precision forming equipment integrating high temperature control and all-round uniform pressurization function. Designed based on Pascal’s principle, the equipment realizes dead-angle-free pressure transmission through liquid media such as clean water and special hydraulic oil, and is specially built for application scenarios with strict requirements on forming uniformity and compactness. Loose powder materials can be pressed into green bodies with dense structure and stable performance under the synergistic effect of 0-300℃ temperature and 0-588.4 kilonewtons pressure, and it is widely used in the research and development and small-batch production of powder metallurgy, ceramic materials, composite materials, refractory materials and new energy battery components and other fields.

2. Functional Features

Precise Synergy of Temperature and Pressure: Pressure adjustment range is 0-588.4 kilonewtons, with display accuracy up to 0.98 kilonewtons; Temperature control range is 0-300℃, with temperature accuracy of ±2℃. Equipped with multi-stage pressurization mode and pressurization map display function, it ensures uniform density of formed green bodies and meets high-precision forming requirements.

Intelligent and Convenient Operation: Equipped with a 177.8 mm (7 inch) touch screen to realize the fully automatic operation process of the equipment, supporting custom setting of process parameters and export of production data; The flip-up structure design makes the operation process safe, convenient, efficient and labor-saving.

Stable and Wide Adaptability: Standard cavity size is Φ50×150 mm (customizable), effective cavity volume is 3 liters (3000 milliliters), and the forming compactness can reach more than 99.8%, which can adapt to the complex forming processes of various materials; The equipment has a compact structure, with a rated power of only 2500 watts, excellent energy saving, and takes into account both scientific research experiments and pilot production scenarios.

3. Technical Parameters

Parameter Name	Specific Specifications
Pressure Range	0-588.4 Kilonewtons (Customizable)
Display Accuracy	0.98 Kilonewtons
Display Screen	177.8 mm (7 inch) Touch Screen
Pressurization Method	Multi-stage Remote Pressurization, Supporting Pressurization Map Display
Cavity Cylinder Size	Φ50×150 mm (Customizable)
Cavity Volume	3 Liters (3000 Milliliters)
Cavity Temperature	0-300℃
Safety Protection	Flip-up Structure, Convenient Operation and Improved Use Safety
Overall Dimensions	320×500×600 mm
Power Supply & Power	220V/110V (2500 Watts)
Net Weight	280 Kilograms

Remarks: 1. Pressure unit conversion standard: 1 ton-force ≈ 9.807 kilonewtons, this article uses the simplified conversion of 1 ton-force ≈ 9.81 kilonewtons, which conforms to the international mechanical unit measurement standard; 2. The temperature unit ℃ (Celsius) is a derived unit of the International System of Units (SI), which conforms to the international general measurement standard; 3. The units of equipment dimensions, volume, power, weight and other parameters are all marked with international standard units.

If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
