Description

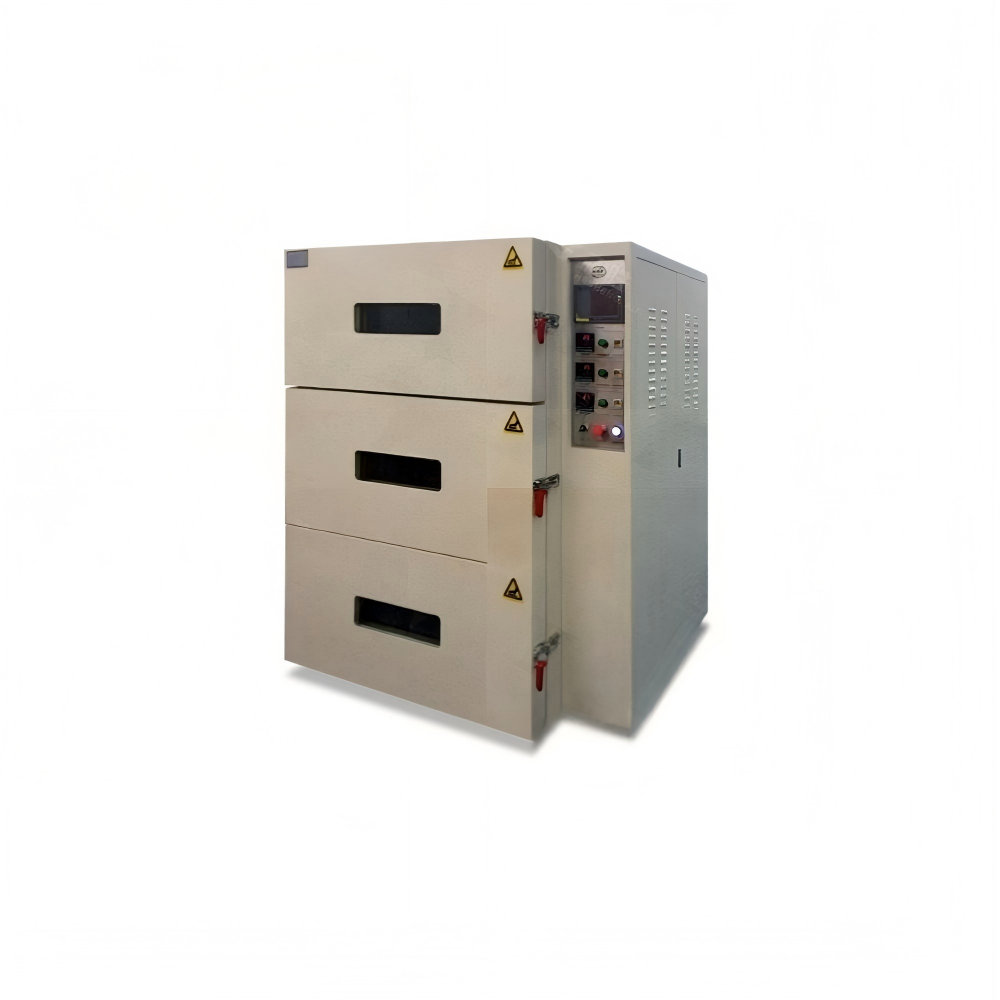

Atomfair Three-Layer Vacuum Oven

Model: Atomfair-VO386

Launch Date: 2022-03-01

Application

Suitable for lithium battery manufacturing and R&D processes, used for vacuum baking of electrode sheets and batteries.

Product Overview

The oven is equipped with a stainless steel inner chamber. Each working chamber operates independently.
Heating, vacuum pumping and gas filling run in an automatic cycle. The time for each stage can be set via the touch screen.
The oven adopts a PLC control system with touch-screen operation, using forced air circulation for heating and cooling.

Features

• Three-layer independent temperature control design. Each chamber can perform different baking processes. Custom material racks are available upon customer request.
• PLC control with temperature controller and HMI operation for flexible parameter setting. Electric heating with air circulation ensures excellent temperature uniformity and small fluctuation.
• Inner chamber made of SUS304 stainless steel, outer body with cold-rolled steel plate and powder coating. High-performance thermal insulation layer design.
• Integrated frame and chamber structure with excellent sealing, ensuring stable vacuum level for a long time.

Technical Specifications

• Temperature range: Ambient temperature ~ 150?, uniformity ±3?, fluctuation ±1?
• Power supply: Three-phase 380V, 8KW
• Air supply: 0.5?0.8MPa compressed air
• Heating method: Hot air circulation heating
• Temperature protection: Dual-stage over-temperature protection, automatic power cut-off
• Fan protection: Fan overheat protection
• Heating rate: Room temperature to 80? in less than 20 minutes (no-load)
• Vacuum holding: At -0.1MPa, 24-hour pressure retention rate ≥95%
